Product Details:
|
| Key Words: | Hydraulic Tilting Melting Gas Fired Siliver 800KG Crucible Furnace For Melting Aluminum Alloy | Raw Material: | Iron Steel & Insulation Layer |
|---|---|---|---|
| Color: | Siliver/blue Or Customized | Max. Temperature: | 980 ℃ |
| Crucible Capacity: | 760 KG | Supply Source: | LPG/NG |
| Highlight: | Silent operation Aluminum Melting Furnace,Aluminum Melting Furnace 800KG Hydraulic Tilting,electric foundry furnace preservation molten metal |
||
Hydraulic Tilting Melting Gas Fired Siliver 800KG Crucible Furnace For Melting Aluminum Alloy
800KG Capacity Gas Fired Hydraulic Tilting Crucible Furnace For Die Casting Area
1. Melting Furnace Genernal Decsription
-- Use area in all foundries or pre
– smeltery for feeding holding furnaces or for direct casting.
-- Can also be used as tilting holding/melting furnace.
-- Versatile use by good regulation of the tilting speed and Tempperature control.
-- Advantages of the electric furnace
-- Silent operation
-- Low heat losses through high-quality insulation
-- No exhaust system needed
-- Accurate temperature control Crucible
-- Standard design for the use of graphite crucible
2. Melting Furnace Technical Parameter Data
| SN | Items | Data | Remarks | |
| 1 | Efficient furnace capacity kg (Al) | 760 | ||
| 2 | Melting Rate kg/h (Al) | 350 | Inside the crucible there is already have 1/3 molten aluminum. | |
| 3 | Burner | TGB60P | ||
| 4 | Energy Consumption m3/h | Around 40 | ||
| 5 | Maximum furnace temperature ℃ | 950 | ||
| 6 | Precision of molten aluminum temperature control ℃ | ≤± 5 | ||
| 7 | Temperature control mode | PID+Dual temperature control | ||
| 8 | Crucible type and size mm |
ODΦ880, Height 1170 |
TBN1100 Morgen |
|
| 9 | Furnace surface temperature rise ℃ | ≤50 | Except for the installation site of the heating tube, the discharge outlet and rising tube | |
| 10 | Gas Source | Gas type | Natural Gas | |
| Gas pressure | 5 Kpa | |||
| Max. Flow | 75 m3/h | |||
| 11 | Power Source | Voltage V | 380 | |
| Frequency HZ | 50 | |||
| Power Kw | ≤5 | |||
| 12 | Air Pressure MPa | 0.5-0.7 | ||
3. Types
| Type | GRL-300 | GRL-500 | GRL-600 | GRL-800 | GRL-1000 | GRL-1200 |
| Capacity | 191KG | 338KG | 515KG | 763KG | 952KG | 1062KG |

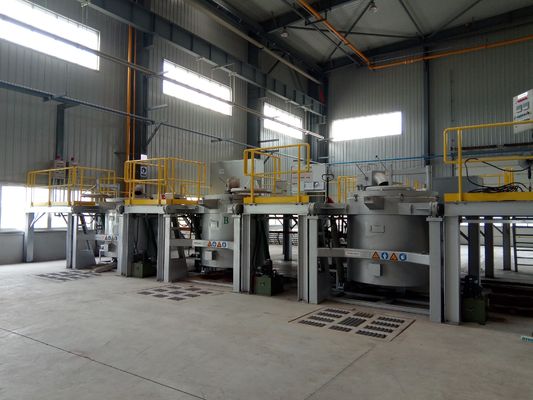

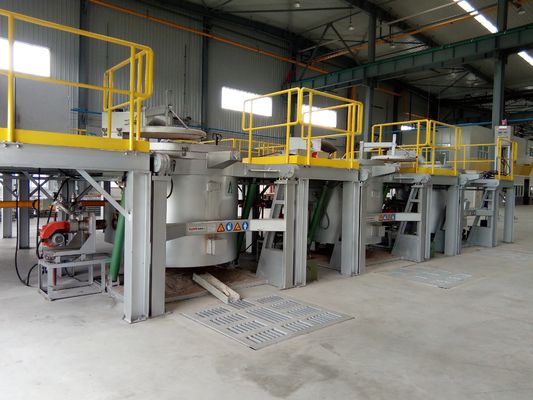

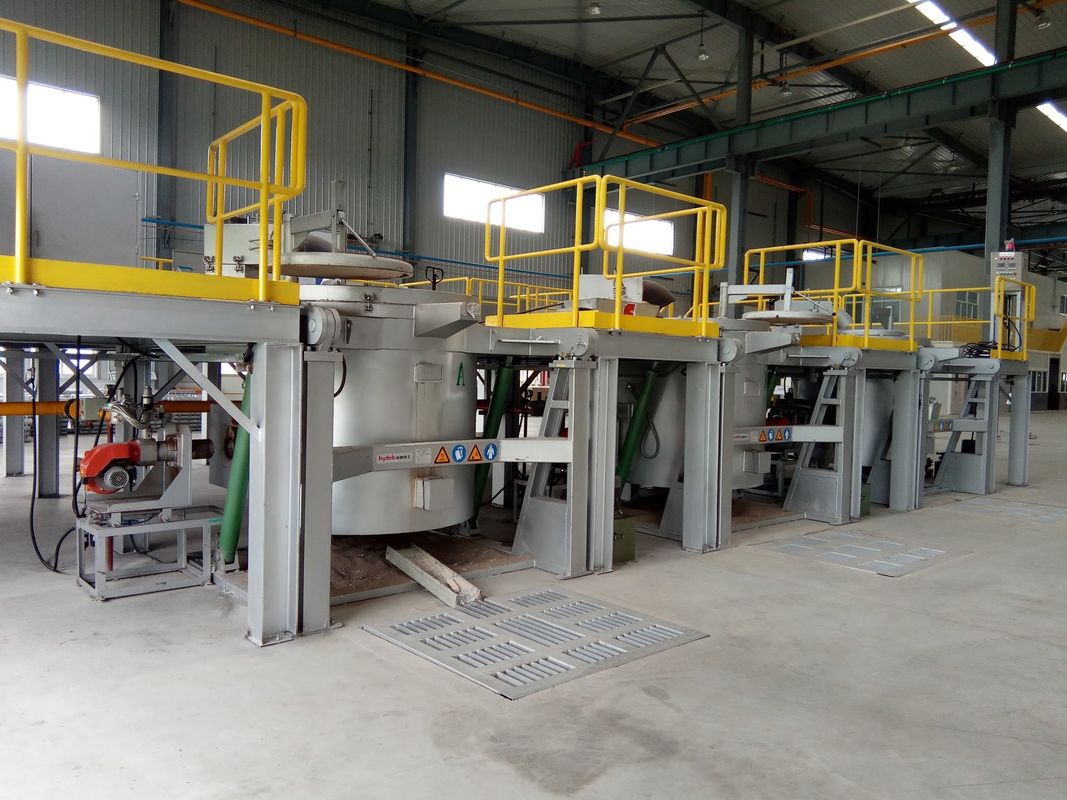

4. Melting Furnace Reference Pictures
5. FRQ
Q1: I know nothing about this furnace, what kind of furnace I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to
do by using this machine, then let us give you perfect solutions and suggestions.
Q2: When I get this furnace, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk
by Telephone/ Skype / Whatsapp / Weichat/ E-mail.
Q3: If some problems happen to this furnace during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
6. Company Profile
-- Has a complete product line of aluminum casting equipment, all products are independent research
and development, manufacturing
