Product Details:
|
| Key Words: | 600KG Gas Fired Siliver Hydraulic Tilting Melting Crucible Furnace For Melting Aluminum Ingot | Material: | Iron Steel Shell |
|---|---|---|---|
| Color: | Siliver | MOQ: | 1 Set |
| Max. Temperature: | 980 ℃ | Crucible Capacity: | 515 KG |
| Supply Source: | LPG/NG | Capacity: | 600KG |
| High Light: | 600kg Aluminum Melting Furnace,950C Aluminum Melting Furnace,industrial electric furnace For Die Casting |
||
600KG Siliver Hydraulic Tilting Gas Fired Melting Crucible Furnace For Die Casting Line
600KG Gas Fired Hydraulic Tilting Crucible Furnace For Die Casting Area
1. Genernal Description
We are highly appreciated in the international market for our exquisite collection of Electrical Aluminium Melting Furnace.
The furnace we offer is considered for holding and preserve of molten metal. It is suitable for transport between molten
aluminum to the workstation. This type of furnace is used in pressure die and gravity die casting foundry.
These furnaces are used to hold and maintain the molten metal at specific temperature inside the crucible
2. Specification Data
| SN | Items | Data | Remarks | |
| 1 | Efficient furnace capacity kg (Al) | 515 | ||
| 2 | Melting Rate kg/h (Al) | 200 | Inside the crucible there is already have 1/3 molten aluminum. | |
| 3 | Burner | TGB35P | ||
| 4 | Energy Consumption m3/h | Around 40 | ||
| 5 | Maximum furnace temperature ℃ | 950 | ||
| 6 | Precision of molten aluminum temperature control ℃ | ≤± 5 | ||
| 7 | Temperature control mode | PID+Dual temperature control | ||
| 8 | Crucible type and size mm |
ODΦ880, Height 1170 |
TBN1100 Morgen |
|
| 9 | Furnace surface temperature rise ℃ | ≤50 | Except for the installation site of the heating tube, the discharge outlet and rising tube | |
| 10 | Gas Source | Gas type | Natural Gas | |
| Gas pressure | 5 Kpa | |||
| Max. Flow | 75 m3/h | |||
| 11 | Power Source | Voltage V | 380 | |
| Frequency HZ | 50 | |||
| Power Kw | ≤5 | |||
| 12 | Air Pressure MPa | 0.5-0.7 | ||
3. Types
| Type | GRL-300 | GRL-500 | GRL-600 | GRL-800 | GRL-1000 | GRL-1200 |
| Capacity | 191KG | 338KG | 515KG | 763KG | 952KG | 1062KG |

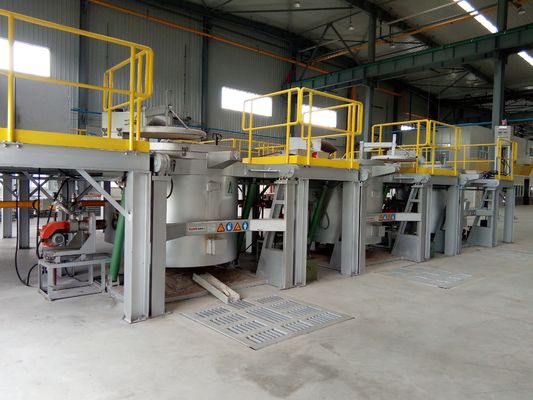

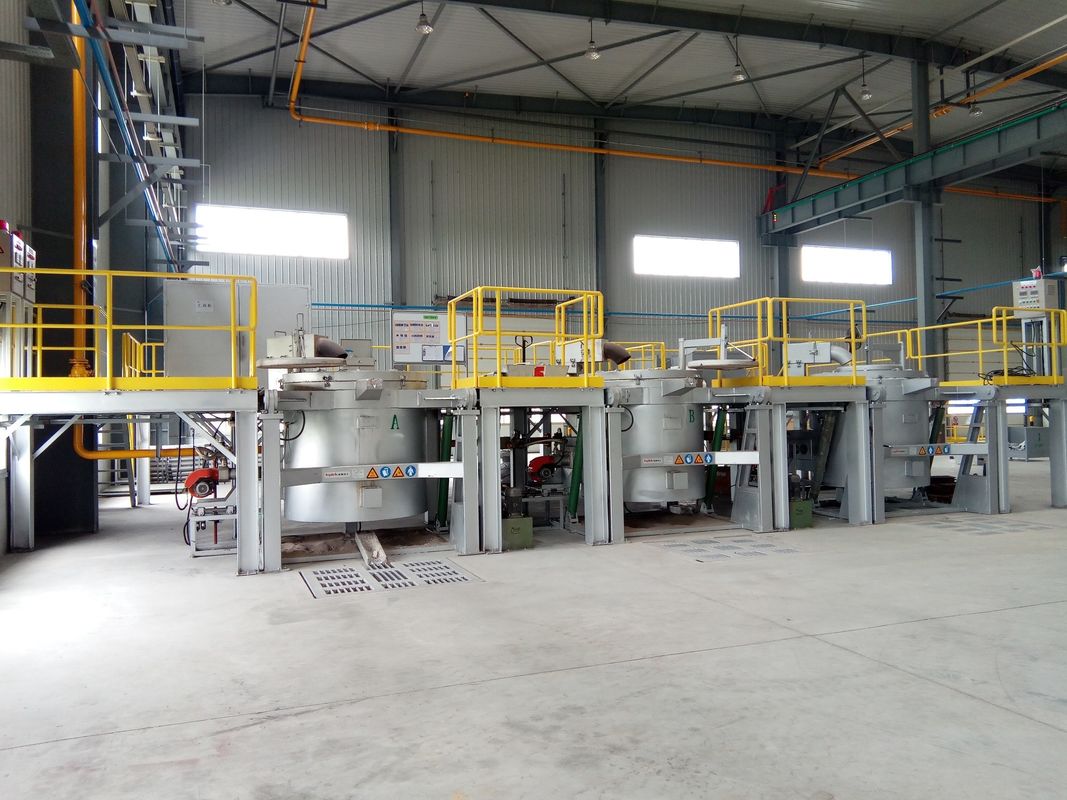

4. Reference Pictures
5. Company Profile
-- Has a complete product line of aluminum casting equipment, all products are independent research
and development, manufacturing
Q1: I know nothing about this machine, what kind of machine I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to
do by using this machine, then let us give you perfect solutions and suggestions.
Q2: When I get this machine, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk
by Telephone/ Skype / Whatsapp / Weichat/ E-mail.
Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
