CFF12 12in CFF In Line Air Handler Filter Box For Purity Molten Aluminum ISO9001

CFF12 12in CFF In Line Air Handler Filter Box For Purity Molten Aluminum ISO9001
CFF12 12in CFF In Line Air Handler Filter Box For Purity Molten Aluminum ISO9001
CFF12 12in CFF In Line Air Handler Filter Box For Purity Molten Aluminum ISO9001 CFF12 12in CFF In Line Air Handler Filter Box For Purity Molten Aluminum ISO9001 CFF12 12in CFF In Line Air Handler Filter Box For Purity Molten Aluminum ISO9001

Large Image :  CFF12 12in CFF In Line Air Handler Filter Box For Purity Molten Aluminum ISO9001

Product Details:
Place of Origin: China
Brand Name: Hydeb
Certification: CE,ISO9001,ISO14001,IS45001,High-tech Enterprise,Intellectual Property,Patents
Model Number: CFF12
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $ 20000-$50000/set
Packaging Details: Wooden Case or Pallet
Delivery Time: 50 working days
Payment Terms: T/T
Supply Ability: 50 sets per year

CFF12 12in CFF In Line Air Handler Filter Box For Purity Molten Aluminum ISO9001

Description
Name: CFF12 In Line Filtration Box 15 Inches In Line Siliver For Purity Molten Aluminum Specification: 12 Inches
Number: 1 Plate Porosity: 20 PPI
Filtration Flow T/h: 5 Colour: Siliver
High Light:

CFF12 air handler filter box

,

15in CFF air handler filter box

,

box hepa filter ISO9001



CFF12 12in CFF In Line Air Handler Filter Box For Purity Molten Aluminum ISO9001 0

CFF12 In Line Filtration Box 15 Inches In line Siliver for Purity Molten Aluminum


In line Siliver CFF Filtration Box for Purity Molten Aluminum

Molten Aluminum On Line Filtration Plate Purity Box


1.  Genernal Introduce



 Filtration Box (CFB) is widely used for molten aluminum filtration in the aluminum casting process to
prevent the particulate impurities in molten aluminum from entering the casting blank and affecting the quality of
aluminum products.



According to the quality requirements of castings, the volume of molten aluminum, the total volume of filtered
aluminum, and the cleanliness of the aluminum itself, the correct selection of the type of filter box and the specifications
of the foam filter plate help to achieve satisfactory filtration results. With foam ceramic filter plate, the filtering effect
is better.



2.  Hydeb Profile



-- Established in January 2003, and now has 56 employees

-- Sales of 50 million RMB in 2020

-- Focus on one industry -- "aluminum casting"

-- Has a complete product line of aluminum casting equipment, all products are independent research

and development, manufacturing

-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid

hydrogen measurement, until aluminum solution aging treatment equipment



3.  Filtration Box Parameter



Item Data Remark
Power Source Phase 3
Voltage V 380±10%
Frequency Hz 50
Total Power kW < 30
Heating Power kW 60
Rated Filtration Flow t/h 5
Filter Plate Size 12″*12″*1″
Filter Plate Porosity 20 PPI
Lining Preheating Heating Speed >40℃/hr
Temperature Control PLC+Atmosphere, aluminum liquid temperature control
Temperature Rising of the outer shell of the box ℃ ≤55 Measure below 100mm on the plane of the box, except for the area within 100mm of the junction of the box chute


4.  Types


Size of Plate 12’’ 17’’ 23’’
Type CFF-12 CFF-17 CFF-23

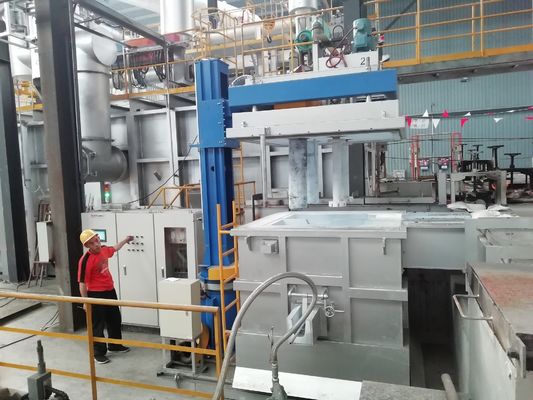

5. Working at Site


  CFF12 12in CFF In Line Air Handler Filter Box For Purity Molten Aluminum ISO9001 1

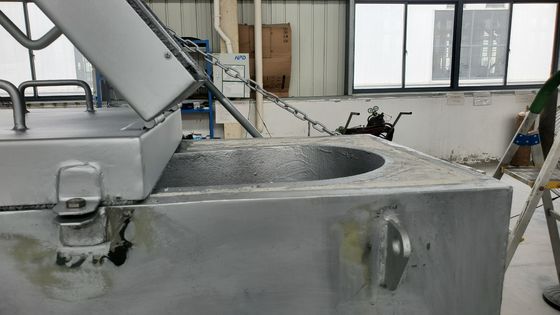

5. The Exhibition
CFF12 12in CFF In Line Air Handler Filter Box For Purity Molten Aluminum ISO9001 2

6. Packing Reference



CFF12 12in CFF In Line Air Handler Filter Box For Purity Molten Aluminum ISO9001 3



7.  FRQ

Q1: I know nothing about this filtration box, what kind of filtration box I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to do
by using this machine, then let us give you perfect solutions and suggestions.


Q2: When I get this filtration but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk by
Telephone/ Skype / Whatsapp / Weichat/ E-mail.


Q3: If some problems happen to this filtration box during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
