Product Details:
|
| Key Words: | On Line Filtration Box For Continuously Producing Aluminum Ingot Model CFF15 | Plate Size: | 15 Inches |
|---|---|---|---|
| Plate Diemension: | 15''*15''*1 | Filter Porosity: | 30 PPI |
| Rated Filtration Flow: | 10 T/H | Colour: | Blue |
| High Light: | 15'' CFF15 Plate Filter,30 PPI Plate Filter,aluminum furnace filters 10T/H |
||
On Line Filtration Box for Continuously Producing Aluminum Ingot Model CFF15
In Line CFF Filtration Box for Molten Aluminum
Molten Aluminum On Line Filtration Plate Purity Box
1. Company Introduce
-- Established in January 2003, and now has 56 employees
-- Sales of 50 million RMB in 2021
-- Focus on one industry -- "aluminum casting"
-- Has a complete product line of aluminum casting equipment, all products are independent research
and development, manufacturing
-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid
hydrogen measurement, until aluminum solution aging treatment equipment
2. Equipment Introduce
The CFF Filtration Box (CFB) is widely used for molten aluminum filtration in the aluminum casting process to
prevent the particulate impurities in molten aluminum from entering the casting blank and affecting the quality of
aluminum products.
3. Mainly Specifications
| Item | Data | Remark | |
| Power Source | Phase | 3 | |
| Voltage V | 380±10% | ||
| Frequency Hz | 50 | ||
| Total Power kW | < 30 | ||
| Heating | Power kW | 60 | |
| Rated Filtration Flow t/h | 10 | ||
| Filter Plate Size | 15″*15″*1″ | ||
| Filter Plate Porosity | 30 PPI | ||
| Lining Preheating Heating Speed | ＞40℃/hr | ||
| Temperature Control | PLC＋Atmosphere, aluminum liquid temperature control | ||
| Temperature Rising of the outer shell of the box ℃ | ≤55 | Measure below 100mm on the plane of the box, except for the area within 100mm of the junction of the box chute | |
3. Types
| Size of Plate | 15’’ | 17’’ | 23’’ |
| Type | CFF-15 | CFF-17 | CFF-23 |

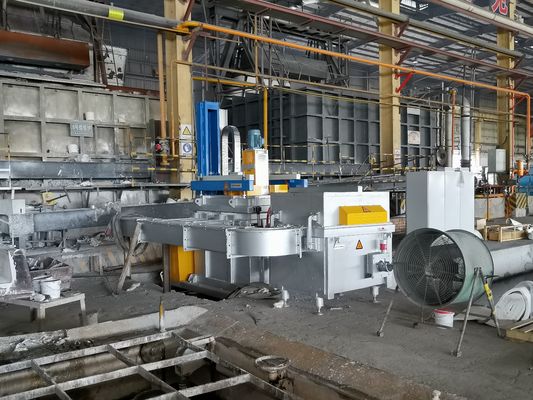

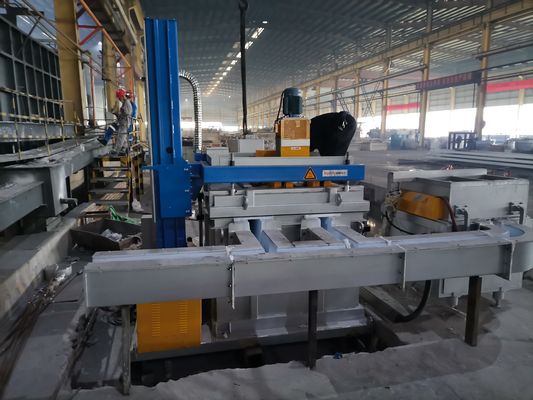

4. Reference Show
5. The Exhibition
6. FRQ
Q1: I know nothing about this machine, what kind of machine I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to do
by using this machine, then let us give you perfect solutions and suggestions.
Q2: When I get this machine, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk by
Telephone/ Skype / Whatsapp / Weichat/ E-mail.
Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
