Product Details:
|
| Product Name: | 17 Inches On Line Siliver CFF17 Filtration Box For Deal With Molten Aluminum | Specification: | 17 Inches |
|---|---|---|---|
| Plate Number: | 2 | Rated Filtration Flow T/h: | 15 T/H |
| Colour: | Siliver/blue Or Customized | Power: | 30KW |
| High Light: | 17 Inches aluminum furnace filters,aluminum furnace filters,furnace filter box |
||
17 Inches On Line Siliver CFF17 Filtration Box For Deal With Molten Aluminum
In line Siliver CFF Filtration Box for Purity Molten Aluminum
Molten Aluminum On Line Filtration Plate Purity Box
1. Filtration Box Introduce
The CFF Filtration Box (CFB) is widely used for molten aluminum filtration in the aluminum casting process to
prevent the particulate impurities in molten aluminum from entering the casting blank and affecting the quality of
aluminum products.
2. Filtration Box Specifications
| Item | Data | Remark | |
| Power Source | Phase | 3 | |
| Voltage V | 380±10% | ||
| Frequency Hz | 50 | ||
| Total Power kW | < 30 | ||
| Heating | Power kW | 60 | |
| Rated Filtration Flow t/h | 15 | ||
| Filter Plate Size | 17″*17″*2″ | ||
| Filter Plate Porosity | 60 PPI | ||
| Lining Preheating Heating Speed | ＞40℃/hr | ||
| Temperature Control | PLC＋Atmosphere, aluminum liquid temperature control | ||
| Temperature Rising of the outer shell of the box ℃ | ≤55 | Measure below 100mm on the plane of the box, except for the area within 100mm of the junction of the box chute | |
3. Filtration Box Types
| Size of Plate | 15’’ | 17’’ | 23’’ |
| Type | CFF-15 | CFF-17 | CFF-23 |

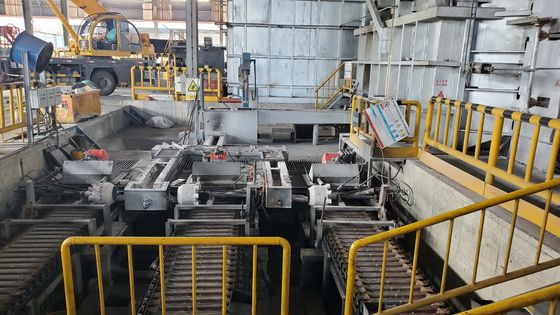

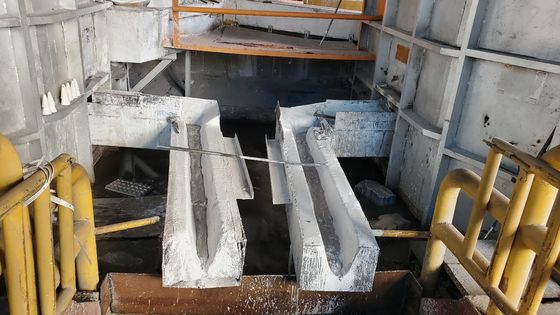

4. Filtration Box Reference Show
5. Company Profile
-- Established in January 2003, and now has 56 employees
-- Sales of 50 million RMB in 2020
-- Focus on one industry -- "aluminum casting"
-- Has a complete product line of aluminum casting equipment, all products are independent research
and development, manufacturing
-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid
hydrogen measurement, until aluminum solution aging treatment equipment
6. FRQ
Q1: I know nothing about this filtration box, what kind of filtration box I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to
do by using this machine, then let us give you perfect solutions and suggestions.
Q2: When I get this filtration box, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk
by Telephone/ Skype / Whatsapp / Weichat/ E-mail.
Q3: If some problems happen to this filtration box during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
