Product Details:
|
| Product Name: | 1200KG Capacity Forklift Tea-pot Type Siliver Transfer Ladles For Molten Aluminium | MOQ: | 1 Set |
|---|---|---|---|
| Colour: | Customized | Application: | Moving Molten Aluminum |
| Raw Material: | Castable | Appearance: | Tea-pot Type |
| High Light: | 1200KG Cap ladle heating furnace,ladle heating furnace metal transfer,ladle pouring molten metal Moving tool |
||
1200KG Capacity Forklift Tea-pot Type Siliver Transfer Ladles for Molten Aluminium
Molten Aluminum Transfer Ladles for Transfer Aluminum Liquid
1. Ladle Introduce
Molten Aluminium Transfer Ladle is a refractory product, which is basically used for molten metal transfer.
Ladles enable molten aluminium to be held at temperature for extended periods, keeping metal clean.
2. Hydeb Company Introduce
-- Hydeb Established in January 2003, and now has 56 employees
-- Sales of 50 million RMB in 2020
-- Focus on one industry -- "aluminum casting"
-- Has a complete product line of aluminum casting equipment, all products are independent research
and development, manufacturing
-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid
hydrogen measurement, until aluminum solution aging treatment equipment
3. Ladle Technical Data
| Items | Parameters | Remarks |
| Maximum temperature of molten aluminum | 800℃ | |
| Maximum ladle lining temperature | 900℃ | |
| Natural temperature drop of molten aluminum | ≤18℃/h | For a 500-kg ladle; the lower the capacity, the higher the figure |
| Ladle shell surface temperature | ≤50℃ | |
| Ladle capacity | 1200 KG | The specific gravity of molten aluminum is set to 2.5t/m3 |
| Ladle body weight | Around 1500KG |
4. Ladle Merits
-- Smooth Tilting Mechanism
-- Less Skin temperature
-- Long Refractory life
-- Maintenance free
-- Easy Handling
5. Ladle Advantages
| 1 | Increased metal quality |
| 2 | Lower energy costs |
| 3 | Improved process efficiency |
| 4 | Reduced downtime and replacement costs |
| 5 | Customized designs |

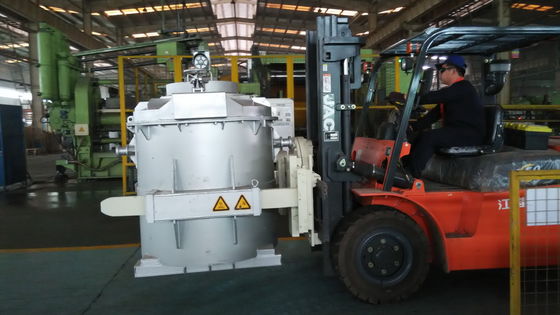

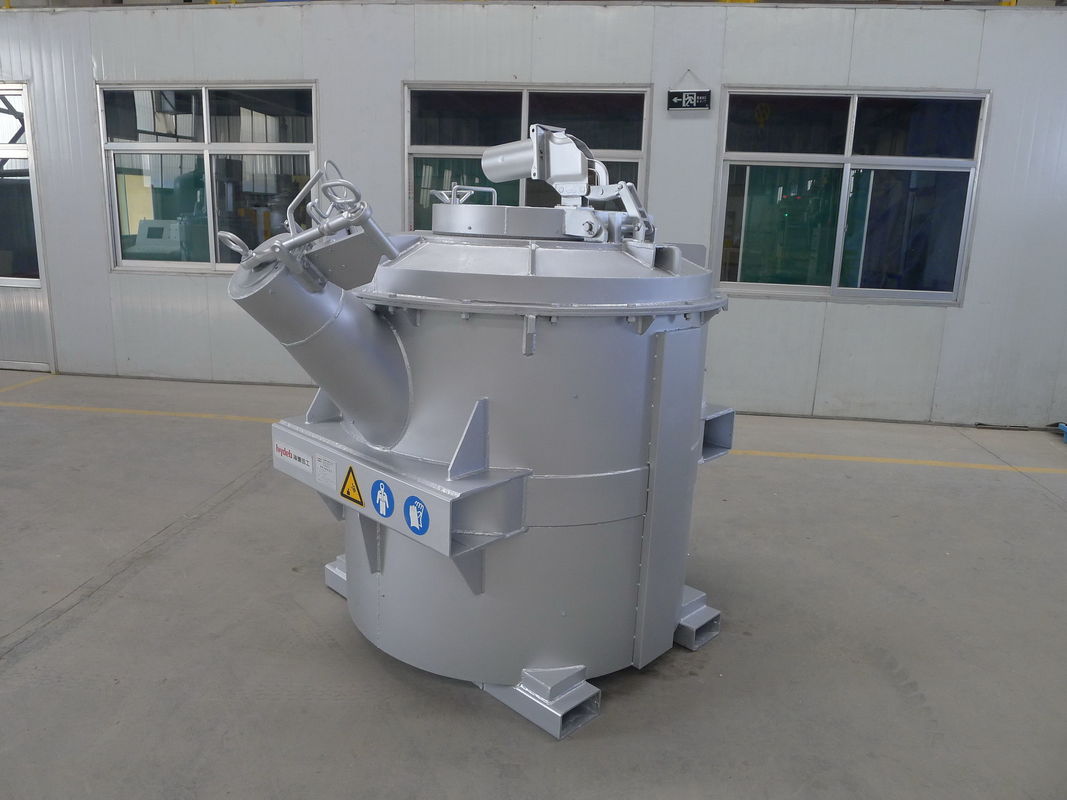

6. Pictures
6. Modles
| Type | HLB-15 | HLB-20 | HLB-30 | HLB-50 | HLB-80 | HLB-100 | HLB-120 | HLB-150 |
| Capacity | 150KG | 200KG | 300KG | 500KG | 800KG | 1000KG | 1200KG | 1500KG |
7. Our Package
8. FRQ
Q1: I know nothing about this ladle, what kind of ladle I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to
do by using this machine, then let us give you perfect solutions and suggestions.
Q2: When I get this ladle, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk
by Telephone/ Skype / Whatsapp / Weichat/ E-mail.
Q3: If some problems happen to this ladle during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
