Product Details:
|
| Key Words: | 500KG Capacity Forklift Type Siliver Transfer Ladles For Moving Molten Aluminium | Moving Way: | Forklift |
|---|---|---|---|
| Colour: | Siliver | Application: | Transfer Molten Aluminum |
| Raw Material: | Iron Steel Shell | Warranty Time: | 1 Year |
| High Light: | 500KG Molten Aluminum Transfer Ladles,Forklift Molten Aluminum Transfer Ladles,ladle pouring molten metal 800 deg |
||
500KG Capacity Forklift Type Siliver Transfer Ladles for Moving Molten Aluminium
Road Molten Aluminum Transfer Ladles for Die Casting Line
1. Transfer Ladle Application
Molten Aluminium Transfer Ladle is a refractory product, which is basically used for molten metal transfer.
Ladles enable molten aluminium to be held at temperature for extended periods, keeping metal clean.
2. Transfer Ladle Characteristic
| 1 | Increased metal quality |
| 2 | Lower energy costs |
| 3 | Improved process efficiency |
| 4 | Reduced downtime and replacement costs |
| 5 | Customized designs |
3. Transfer Ladle Parameters
| Items | Parameters | Remarks |
| Maximum temperature of molten aluminum | 800℃ | |
| Maximum ladle lining temperature | 900℃ | |
| Natural temperature drop of molten aluminum | ≤18℃/h | For a 500-kg ladle; the lower the capacity, the higher the figure |
| Ladle shell surface temperature | ≤50℃ | |
| Ladle capacity | 500 KG | The specific gravity of molten aluminum is set to 2.5t/m3 |
| Ladle body weight | Around 1200KG |
4. Merits
-- Smooth Tilting Mechanism
-- Less Skin temperature
-- Long Refractory life
-- Maintenance free
-- Easy Handling

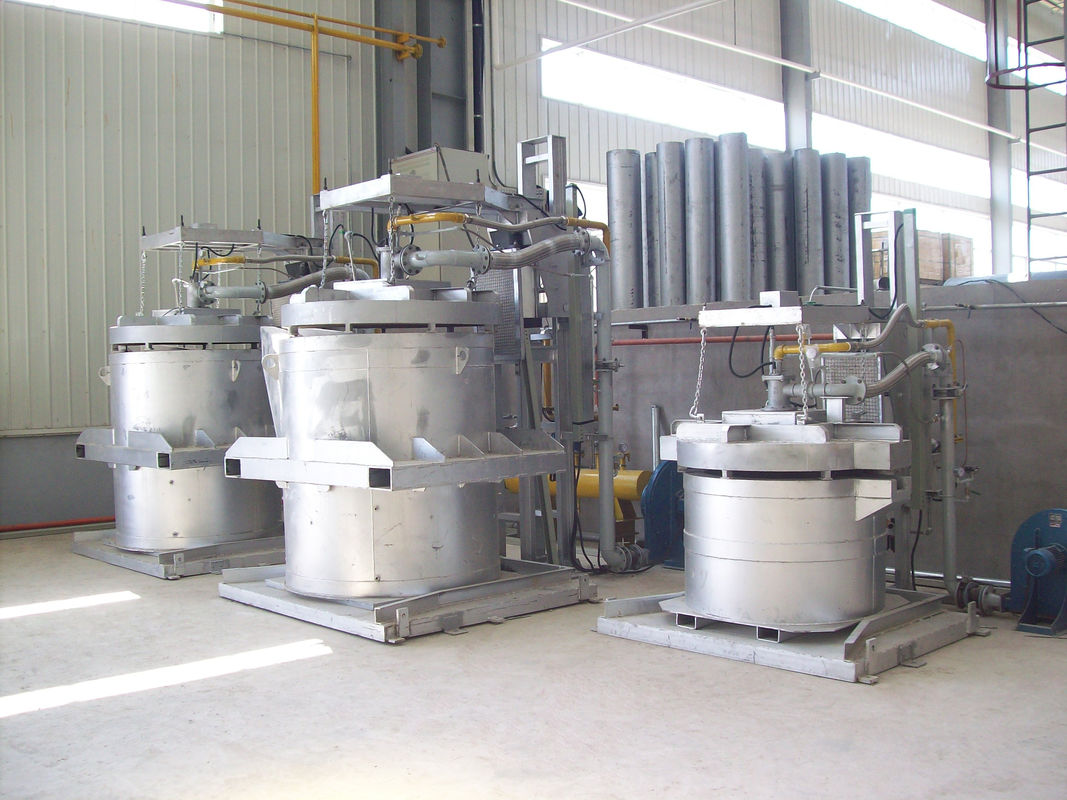

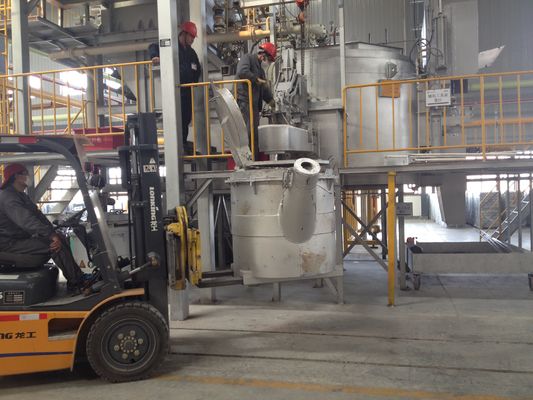

5. Refernce Show
6. Modles
| Type | XLB-15 | XLB-20 | XLB-30 | XLB-50 | XLB-80 | XLB-100 | XLB-120 | XLB-150 |
| Capacity | 150KG | 200KG | 300KG | 500KG | 800KG | 1000KG | 1200KG | 1500KG |
7. Our Package
8. FRQ
Q1: I know nothing about this transfer ladle , what kind of transfer ladle I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to
do by using this machine, then let us give you perfect solutions and suggestions.
Q2: When I get this transfer ladle, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk
by Telephone/ Skype / Whatsapp / Weichat/ E-mail.
Q3: If some problems happen to this transfer ladle during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
9. CE Certification
