Product Details:
|
| Product Name: | 700KG Blue Color Die Casting Peripheral Dosing Holding Furnace For Aluminum Alloy | Dosing Accuracy: | ＜± 1.5% |
|---|---|---|---|
| Material: | Iron Steel | Color: | Blue |
| Capacity: | 500KG | MOQ: | 1 Set |
| Application: | Pouring Molten Aluminum | Size: | According To Your Need |
| High Light: | 700KG Aluminum Holding Furnace,Aluminum Holding Furnace Pouring liquid metal,induction furnace for aluminium melting 0.2mpa |
||
700KG Blue Color Die Casting Peripheral Dosing Holding Furnace for Aluminum Alloy
For Die Casting Dosing Holding Furnace
1. Holding Furnace Application
The dosing holding furnace is mainly used for maintaining temperature of
molten aluminum and fixed supply of aluminum during aluminum die casting.
For the furnace, aluminum is supplied by gas pressurization and an
expert-based dosing calculation procedure is adopted, realizing the
quantification of aluminum supply and high-efficiency production. The
furnace is a new-type holding furnace manufactured by the company using
our self-developed “dosing control technology” based on years of
experience in producing low pressure holding furnaces and automatic liquid
surface compression systems.
2. Holding Furnace Feature
• The molten aluminum outflows from the lower part of the molten pool, not mixed with oxidation slags on its surface.
• High dosing accuracy, the dosing accuracy<± 1.5% (by weight).
• The furnace is closed heating, minimizing the oxidation loss of molten aluminum to≤0.1%.
• The molten aluminum is of high quality owing to less hydrogen absorbed.
• The high consistency of casting weight, casting flow rate, casting speed, casting temperature and casting time
and other parameters prevents various casting factors from affecting casting quality.
• It can be equipped with an in-line air brick degassing and refining device to continuously provide high-quality molten
aluminum.
3. Main Specification for Holding Furnace
| Furnace bath capacity | 700 Kg (AL) |
| Single aluminum tapping volume | 1-150 kg |
| Dosing accuracy | ＜± 1.5% |
| Maximum allowable pressure | 0.20 MPa |
| Rated temperature of furnace chamber | 900℃ |
| ontrol precision of molten aluminum temperature | ±2℃ |
| Molten aluminum heating rate | ≥0.5℃/min |
| Temperature rise in the furnace shell surface | ≤45℃ |

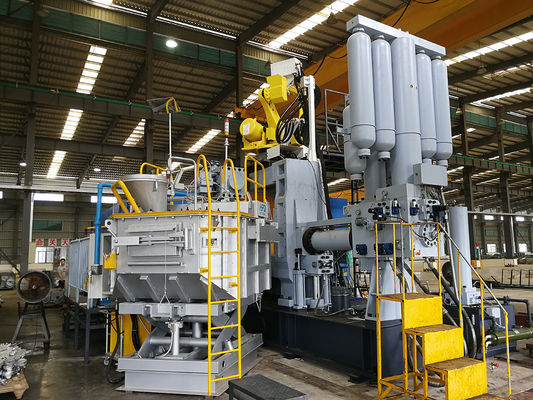

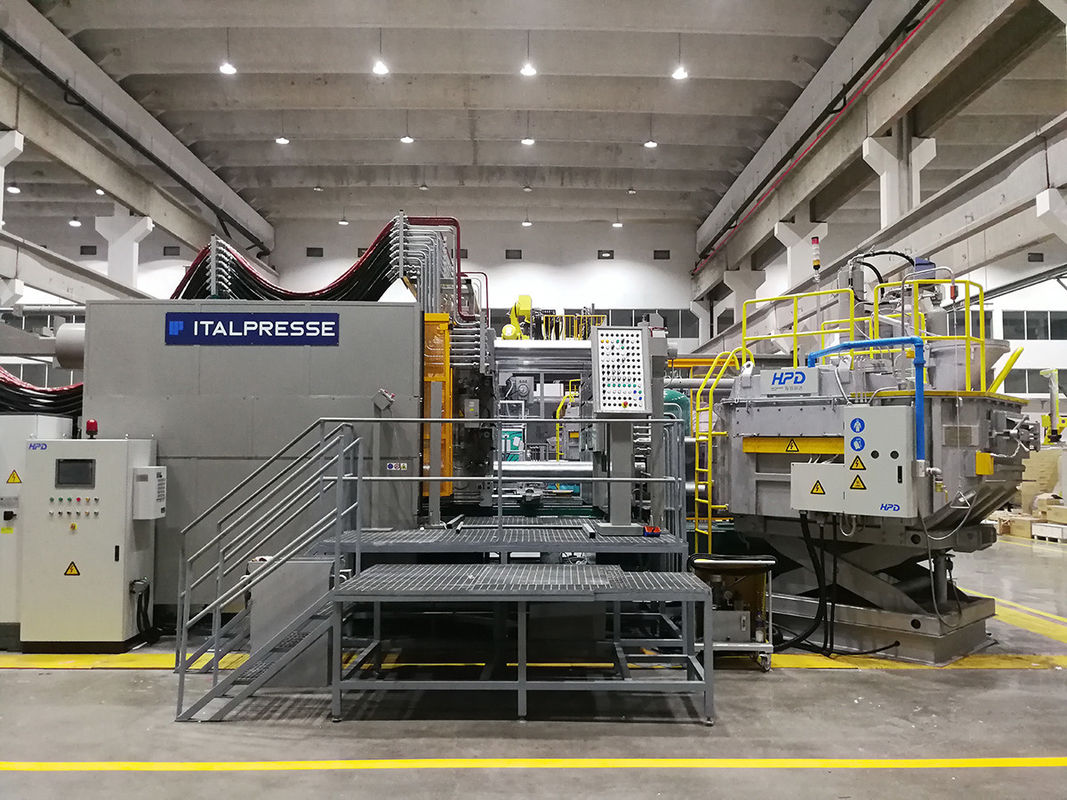

4. Reference Picture
5. Our Clients
6. About Us
7. FRQ
Q1: I know nothing about this machine, what kind of machine I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to
do by using this machine, then let us give you perfect solutions and suggestions.
Q2: When I get this machine, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk
by Telephone/ Skype / Whatsapp / Weichat/ E-mail.
Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
