Product Details:
|
| Name: | 1000KG Capacity Crane Hanger Type Blue Molten Aluminium Transfer Ladles | Ladle Weight: | 1200 KG |
|---|---|---|---|
| Colour: | Blue | Application: | Transfer Molten Aluminum |
| Lining Material: | Castable | Warranty Time: | 1 Year |
| High Light: | Crane Hanger Type molten metal transfer,molten metal transfer 1000KG Capacity,industrial vacuum furnaceeasy balancing |
||
1000KG Capacity Crane Hanger Type Blue Molten Aluminium Transfer Ladles
Long Distance Transfer Ladle for Aluminum Liquid
1. Molten Metal Transfer Ladle Function
Molten Aluminium Transfer Ladle is a refractory product, which is basically used for molten metal transfer.
Ladles enable molten aluminium to be held at temperature for extended periods, keeping metal clean.
2. Molten Metal Transfer Ladle Advantges
Minimize the temperature loss
Rigid structure design for longer life
Easy to operating & balancing
High quality insulation
3. Molten Metal Transfer Ladle Merits
-- Smooth Tilting Mechanism
-- Less Skin temperature
-- Long Refractory life
-- Maintenance free
-- Easy Handling
4. Molten Metal Transfer Ladle Features
| 1 | Increased metal quality |
| 2 | Lower energy costs |
| 3 | Improved process efficiency |
| 4 | Reduced downtime and replacement costs |
| 5 | Customized designs |
5. Specification
| Items | Parameters | Remarks |
| Maximum temperature of molten aluminum | 800℃ | |
| Maximum ladle lining temperature | 900℃ | |
| Natural temperature drop of molten aluminum | ≤18℃/h | For a 500-kg ladle; the lower the capacity, the higher the figure |
| Ladle shell surface temperature | ≤50℃ | |
| Ladle capacity | 1000 KG | The specific gravity of molten aluminum is set to 2.5t/m3 |
| Ladle body weight | Around 1300KG |
6. FRQ
Q1: I know nothing about this metal transfer, what kind of metal transfer I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to
do by using this machine, then let us give you perfect solutions and suggestions.
Q2: When I get this metal transfer, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk
by Telephone/ Skype / Whatsapp / Weichat/ E-mail.
Q3: If some problems happen to this metal transfer during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.

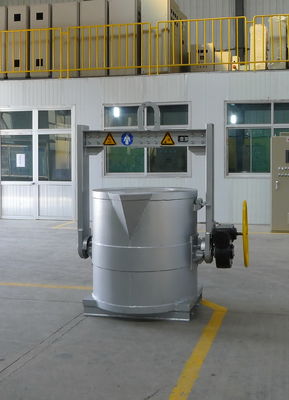

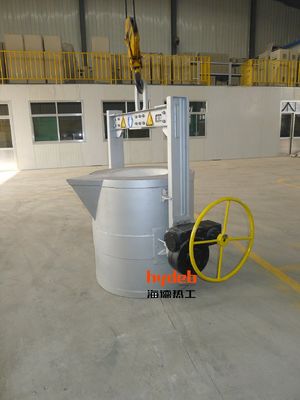

7. Pictures
8. Modles
| Type | CLB-15 | CLB-20 | CLB-30 | CLB-50 | CLB-80 | CLB-100 | CLB-120 | CLB-150 |
| Capacity | 150KG | 200KG | 300KG | 500KG | 800KG | 1000KG | 1200KG | 1500KG |
9. Our Delivery
