Product Details:
|
| Product Name: | 800KG Electric Heating Silive Aluminum Alloy Melting Die Casting Crucible Furnace | Furnace Body Material: | Steel |
|---|---|---|---|
| Color: | Blue | Max. Temperature: | 980 ℃ |
| Power: | Electricity | Capacity: | CRL-300 191kg |
| High Light: | rapid heat up Aluminum Melting Furnace,Aluminum Melting Furnace Capcity 800KG,electric crucible melting furnace 980 deg |
||
800KG Electric Heating Silive Aluminum Alloy Melting Die Casting Crucible Furnace
800KG Capacity Electric Heating Smelting Crucible Furnace
1. Furnace Introduce
Multilayer Insulation of High Grade Ceramic Fiber to withstand temperature up to 950 °C. The furnace chamber
insulation with high-quality lightweight refractory bricks is recommended for holding operation for rapid heat-up times
in non-continuous operation.
-- Use in all foundries or aluminum die casting area
– smeltery for feeding holding furnaces or for direct casting.
-- Low heat losses through high-quality insulation
-- No exhaust system needed
-- Accurate temperature control Crucible
-- Standard design for the use of graphite crucible
2. Specification
| SN | Items | Data | Remarks | |
| 1 | Efficient furnace capacity kg (Al) | 580 | ||
| 2 | Melting Rate kg/h (Al) | 280 | Inside the crucible there is already have 1/3 molten aluminum. | |
| 5 | Maximum furnace temperature ℃ | 950 | ||
| 6 | Precision of molten aluminum temperature control ℃ | ≤± 5 | ||
| 7 | Temperature control mode | PID+Dual temperature control | ||
| 8 | Crucible type and size mm | OD 880, d 350mm, H 1000 |
BN800 Morgen |
|
| 9 | Furnace surface temperature rise ℃ | ≤50 | Except for the installation site of the heating tube, the discharge outlet and rising tube | |
| 11 | Power Source | Voltage V | 380 | |
| Frequency HZ | 50 | |||
| 12 | Air Pressure MPa | 0.5-0.7 | ||
3. Types
| Type | CRL-300 | CRL-500 | CRL-600 | CRL-800 | CRL-1000 | CRL-1200 |
| Capacity | 191KG | 338KG | 515KG | 763KG | 952KG | 1062KG |

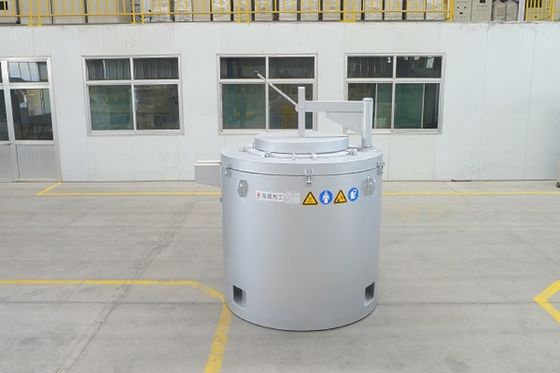

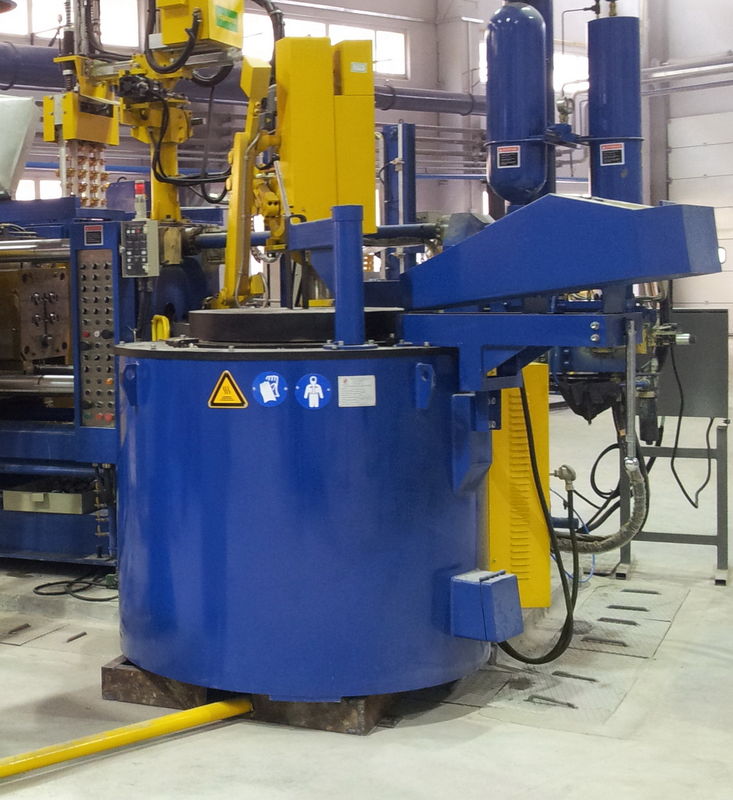

4. Picture Show
5. Company Introduce
-- Has a complete product line of aluminum casting equipment, all products are independent research
and development, manufacturing
