Product Details:
|
| Product Name: | 500KG Capacity Forklift Type With Cover Siliver Molten Aluminum Transfer Ladles | Ladle Capacity: | 500KG |
|---|---|---|---|
| Color: | Siliver | Application: | Transfer Molten Aluminum |
| Material: | Iron Steel & Allied Castable Material | MOQ: | 1 Set |
| Natural Temperature Drop Of Molten Aluminum: | ≤18℃/h | Transfer Method: | Forklift |
| High Light: | 0.5T cap Molten Aluminum Transfer Ladles,Molten Aluminum Transfer Ladles Forklift,Silver aluminum heat transfer 1100KG |
||
500KG Capacity Forklift Type with Cover Siliver Molten Aluminum Transfer Ladles
Aluminum Recyclling Transfer Ladles for Long Distance Transfer
1. Transfer Ladle Application
Molten Aluminium Transfer Ladle is a refractory product, which is basically used for molten metal transfer.
Ladles enable molten aluminium to be held at temperature for extended periods, keeping metal clean. Our
transfer ladle having gear box for smooth tilting & ladle having refractory lining of non wetting castable,
Available capacity 100 to 3000 Kgs
2. Transfer Ladle Advantages
-- Smooth Tilting Mechanism
-- Less Skin temperature
-- Long Refractory life
-- Maintenance free
-- Easy Handling
3. Company Introduce
-- Established in January 2003, and now has 56 employees
-- Sales of 50 million RMB in 2020
-- Focus on one industry -- "aluminum casting"
-- Has a complete product line of aluminum casting equipment, all products are independent research
and development, manufacturing
-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid
hydrogen measurement, until aluminum solution aging treatment equipment
4. Transfer Ladle Characteristic
| 1 | Increased metal quality |
| 2 | Lower energy costs |
| 3 | Improved process efficiency |
| 4 | Reduced downtime and replacement costs |
| 5 | Customized designs |
5. Transfer Ladle Technical Parameters
| Items | Parameters | Remarks |
| Maximum temperature of molten aluminum | 800℃ | |
| Maximum ladle lining temperature | 900℃ | |
| Natural temperature drop of molten aluminum | ≤18℃/h | For a 500-kg ladle; the lower the capacity, the higher the figure |
| Ladle shell surface temperature | ≤50℃ | |
| Ladle capacity | 500 KG | The specific gravity of molten aluminum is set to 2.5t/m3 |
| Ladle body weight | Around 1100KG |
6. Modles
| Type | CLB-15 | CLB-20 | CLB-30 | CLB-50 | CLB-80 | CLB-100 | CLB-120 | CLB-150 |
| Capacity | 150KG | 200KG | 300KG | 500KG | 800KG | 1000KG | 1200KG | 1500KG |

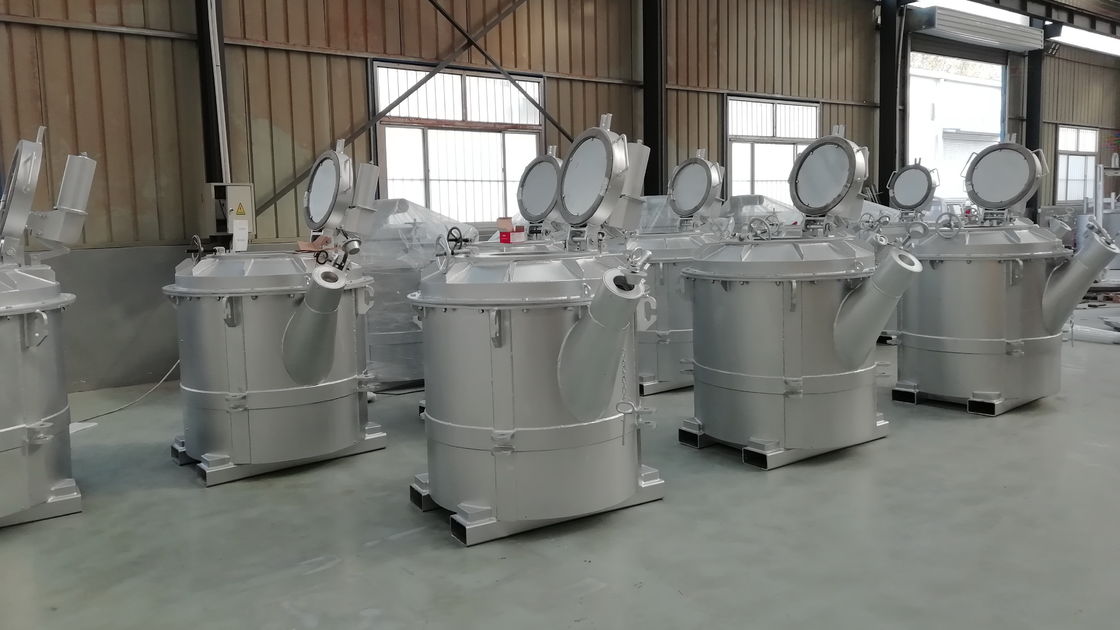

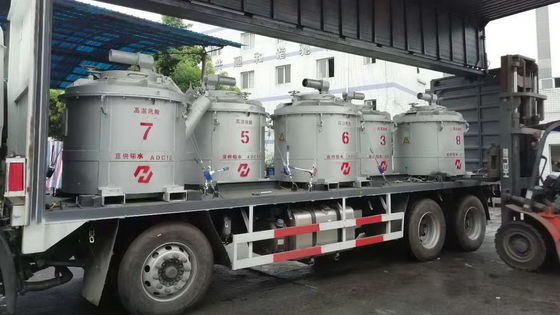

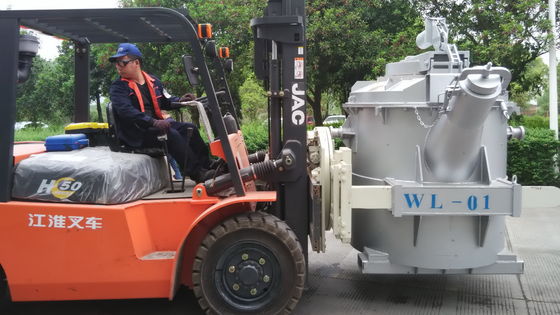

7. Reference Pictures
8. Our Strengths
