Side Wall Mounted Rotary Degasser with High Purity Gas and Graphite Rotor for Aluminum Degassing

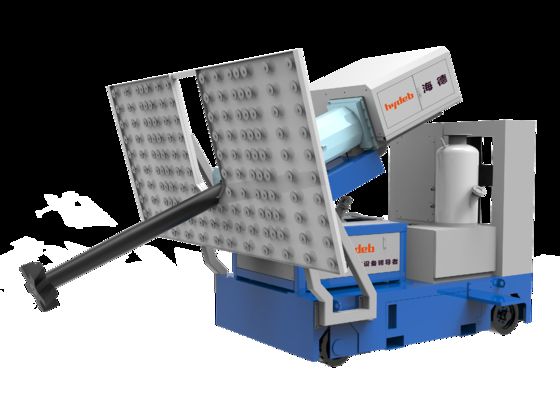

Large Image : Side Wall Mounted Rotary Degasser with High Purity Gas and Graphite Rotor for Aluminum Degassing

Product Details:

Place of Origin:	Shandong, China
Brand Name:	HYDEB
Certification:	CE certificate, ISO
Model Number:	AF

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	$ 50000-$100000/set
Packaging Details:	Wooden box
Delivery Time:	2 months
Payment Terms:	By T/T
Supply Ability:	1000 sets/ year

Contact Now

Side Wall Mounted Rotary Degasser with High Purity Gas and Graphite Rotor for Aluminum Degassing

Description

Refined Gas Purity %:	≥99.997	Refined Gas Pressure MPa:	0.1-0.6
Refined Gas Flow Rate M³/h:	5.7～25.5	MOPower Supply PhasesQ:	Three-phase Four-wire
Voltage V:	380V	Frequency Hz:	50Hz
Total Power KW:	＜15kw	Rotor Oscillation Range:	30°
Rotor Tilt Range Mm:	0~32°	Graphite Rotor Speed R/min:	100－400
Refining And De-gassing Time Min:	0～99
Highlight:	930 KG small aluminium melting furnace , 880mm Ingot small aluminium melting furnace , electric melting furnace aluminum fast melting

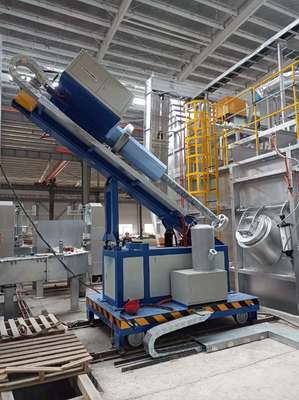

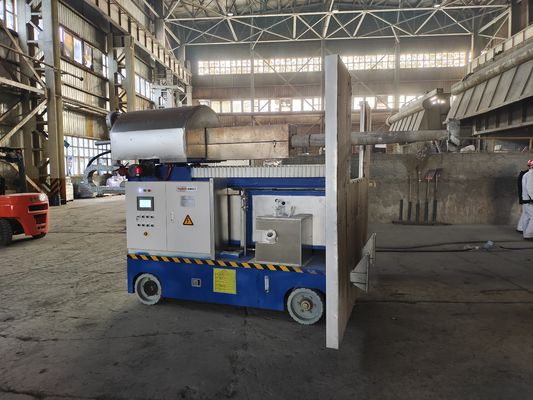

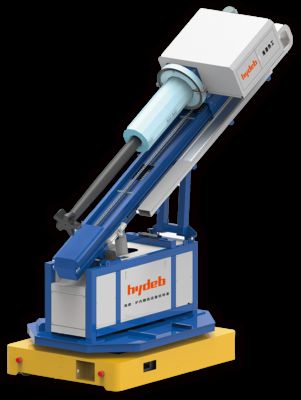

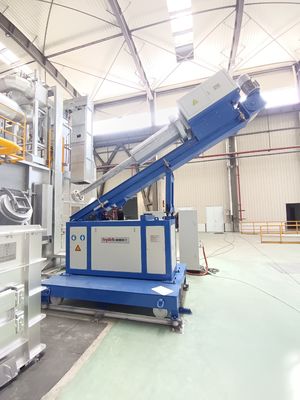

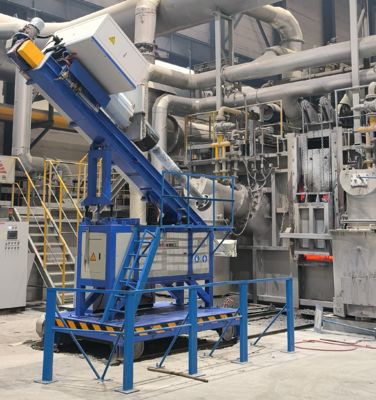

Aluminum Degassing Furnace Side Wall Rotary Flux Injector

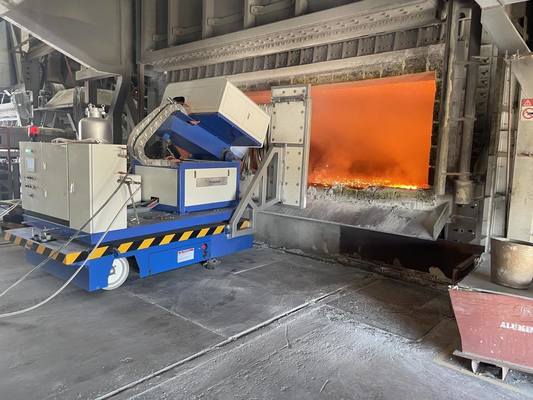

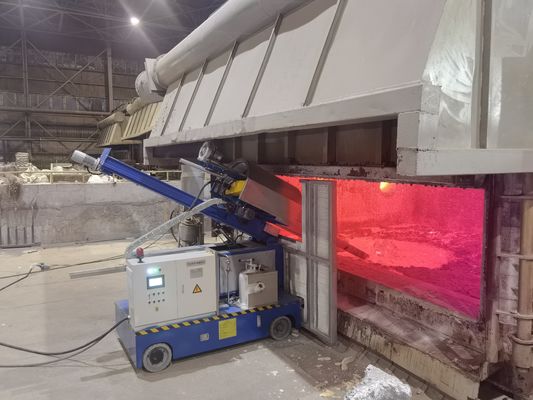

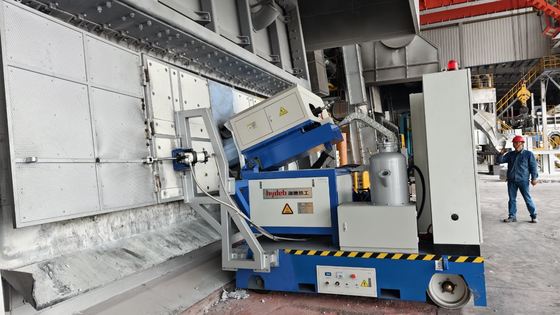

The Furnace Side Wall Rotary Flux Injector operates through small furnace wall openings, minimizing thermal loss during degassing and fluxing processes. Its sealed design ensures refining gas (nitrogen or argon) fills the space above molten aluminum, preventing oxidation.

Equipment Introduction

This system features a motor-driven graphite rotor immersed in molten aluminum. High-purity nitrogen or argon is introduced through the rotor, which breaks the inert gas into fine bubbles. These bubbles disperse evenly through the molten aluminum, allowing hydrogen to diffuse into them and rise to the surface, effectively reducing hydrogen content.

Performs dehydrogenation, impurity removal, and dealkalization
One of the most effective molten aluminum degassing technologies
Ideal for high-end aluminum castings
Can be installed between two holding furnaces
Single unit can service two furnaces, saving space

Equipment Features

Sturdy construction with no operational vibration
304 stainless steel flux feeding mechanism for corrosion resistance and precise powder adjustment
Block-clip graphite shaft connection ensures excellent coaxiality and easy maintenance
Precision-engineered rotating rotor with superior coaxiality and minimal vibration
Rotor shaft withstands continuous operation at 200°C
Special guide rail and self-lubricating rollers require no maintenance
Significant advantages over manual fluxing:
- Reduces flux consumption
- Accelerates waste and alloy melting
- Ensures uniform chemical composition and temperature
- Minimizes chlorine/fluoride use
- Reduces emissions
- Improves worker safety
Premium components from Siemens, Schneider, and other international brands

Technical Specifications

Parameter	Value
Refined Gas Purity	≥99.997%
Refined Gas Pressure	0.1-0.6 MPa
Refined Gas Flow Rate	5.7～25.5 m³/h
Power Supply	Three-phase four-wire
Voltage	380V
Frequency	50Hz
Total Power	<15kW
Rotor Oscillation Range	30°
Rotor Tilt Range	0~32°
Graphite Rotor Speed	100－400 r/min
Refining and Degassing Time	0～99 min
