Product Details:
|
| Refined Gas Pressure MPa: | Adjustable From 0.1 To 0.6 | Refined Flux Powder Spraying Amount G/min: | 0～350 |
|---|---|---|---|
| Refined Gas Purity %: | ≥99.996 | Power Wire Diameter Mm2: | ≥2.5 |
| Power Supply Phases: | Three-phase Four-wire | Refined Gas Flow Rate L/min: | Adjustable From 15 To 30 |
| Net Weight: | 1200kg | Frequency Hz: | 50Hz |
| Highlight: | 380V Molten Aluminum Degassing Machine,0-350g/min Molten Aluminum Degassing Machine,Customizable Molten Aluminum Degassing Machine |
||

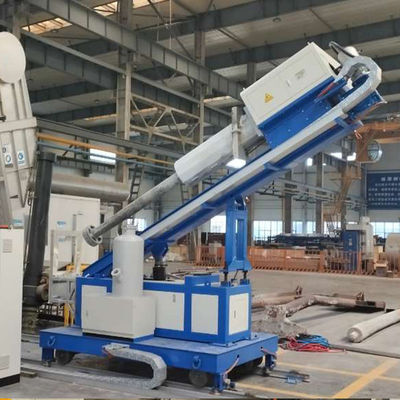

The Rotary Degassing Unit is a vital piece of furnace side refining equipment designed for aluminum refining. This advanced degassing machine features a Graphite rotor speed of up to 600 r/min, which can be easily adjusted through Frequency Conversion settings. This allows for precise control over the degassing process to achieve optimal results.
The unit also boasts a refined flux powder spraying amount ranging from 0 to 350 g/min. This capability ensures efficient and effective degassing by providing the necessary flux powder in controlled quantities. The Refined Gas Pressure can be adjusted from 0.1 to 0.6 MPa, offering flexibility in adapting to different refining requirements.
In addition, the Rotary Degassing Unit maintains a refining flux particle size of up to 5 mm, ensuring that the degassing process is conducted with high precision and effectiveness. The Frequency of the unit is set at 50Hz, providing a stable and reliable operation for consistent refining performance.
Overall, the Rotary Degassing Unit is a state-of-the-art aluminum refining degassing machine that excels in furnace side refining equipment. With its adjustable settings, precise control features, and robust performance capabilities, this unit is a valuable asset for any aluminum refining operation seeking efficient and effective degassing processes.
| Total Power kW | 3kW |
| Power Supply Phases | Three-phase Four-wire |
| Refining flux particle size mm | ≤5 |
| Graphite rotor speed r/min | Frequency Conversion Adjustment 0-600 |
| Refined Gas Flow Rate L/min | Adjustable From 15 To 30 |
| Voltage V | 380V±10% |
| Net weight | 1200kg |
| Refinement and Degassing Time min | 0 To 99 |
| Refined Gas Pressure MPa | Adjustable From 0.1 To 0.6 |
| Refined flux powder spraying amount g/min | 0～350 |
The HYDEB XC210A(-1) Rotary Degassing Unit is a top-of-the-line aluminum In-Furnace Impurity Removal Equipment designed to meet the highest industry standards. Manufactured in Jinan, China, this product boasts CE ISO9001 certification, ensuring its quality and reliability.
With a minimum order quantity of 1 set and a competitive price of 12000USD/set, the XC210A(-1) is a cost-effective solution for aluminum producers looking to enhance their refining processes. It comes with standard exporting packaging and has a delivery time of 45 workdays, making it a convenient choice for businesses.
The Rotary Degassing Unit is versatile and can be used in various scenarios such as aluminum In-Furnace Slag Removal Equipment, and aluminum Furnace side refining equipment. Its refining flux particle size of ≤5 mm ensures efficient impurity removal, while the total power of 3kW guarantees optimal performance.
Equipped with adjustable Refined Gas Pressure (from 0.1 to 0.6 MPa) and Refined Gas Flow Rate (from 15 to 30 L/min), this unit offers flexibility in operation to suit different refining needs. Weighing 1200kg, it is sturdy and durable for long-term use.
Customers can rest assured of the product's reliability and consistent supply, with a supply ability of 500 units per year. Payment terms include L/C and T/T, providing convenience and flexibility in transactions.
