Product Details:
|
| Graphite Rotor Speed R/min: | Frequency Conversion Adjustment 0-600 | Refined Flux Powder Spraying Amount G/min: | 0～350 |
|---|---|---|---|
| Refinement And Degassing Time Min: | 0 To 99 | Frequency Hz: | 50Hz |
| Power Wire Diameter Mm2: | ≥2.5 | Net Weight: | 1200kg |
| Refined Gas Purity %: | ≥99.996 | Refined Gas Pressure MPa: | Adjustable From 0.1 To 0.6 |
| Highlight: | 3kW Rotary Degassing Unit,Gas Refining Rotary Degassing Unit,Adjustable Rotary Degassing Unit |
||

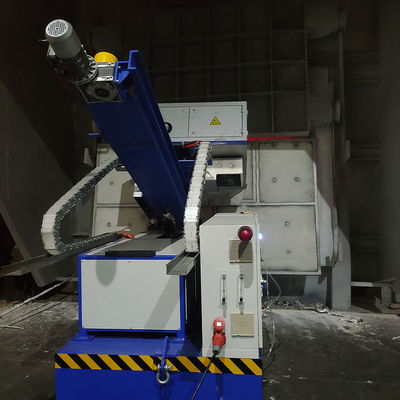

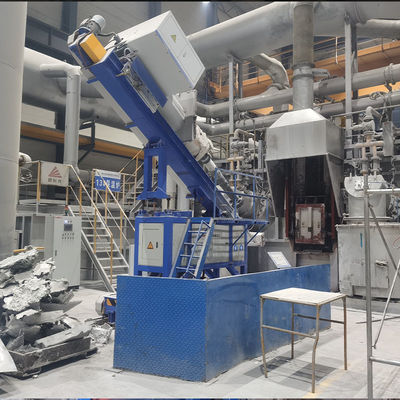

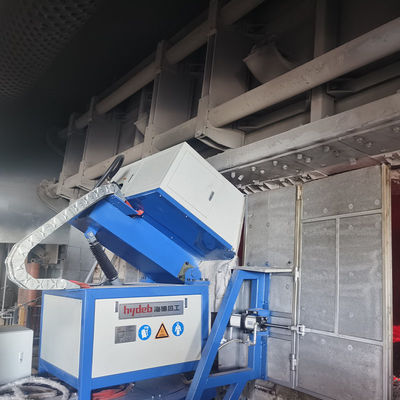

The Rotary Degassing Unit is a crucial piece of furnace side refining equipment designed to enhance the quality of molten aluminum in industrial processes. With a net weight of 1200kg, this degassing unit operates on a voltage of 380V±10% and is compatible with a three-phase four-wire power supply system. Its frequency of 50Hz ensures stable and efficient performance, while the total power of 3kW enables effective degassing of molten aluminum.
As a molten aluminum purification machine, the Rotary Degassing Unit plays a vital role in removing impurities and gases from the molten metal, thereby improving its overall quality and properties. By utilizing the degassing process, this unit helps enhance the mechanical and physical characteristics of the aluminum, making it suitable for a wide range of industrial applications.
Manufactured with precision and quality in mind, the Rotary Degassing Unit offers reliable and consistent performance, contributing to the efficiency and productivity of aluminum processing operations. Its robust construction and advanced features make it a valuable asset for foundries, smelting facilities, and other manufacturing plants that rely on high-quality molten aluminum for their production processes.
Equipped with a powerful motor and efficient degassing mechanism, this purification machine ensures thorough removal of hydrogen, oxides, and other undesired elements from the molten aluminum, resulting in a cleaner and more refined metal composition. By incorporating this degassing unit into their operations, businesses can achieve better control over the quality of their aluminum products, leading to improved performance and customer satisfaction.
The Rotary Degassing Unit offers a user-friendly interface and intuitive controls, allowing operators to easily monitor and adjust the degassing process according to specific requirements. Its compact design and ergonomic layout make installation and operation convenient, saving valuable floor space and streamlining production workflows.
In conclusion, the Rotary Degassing Unit serves as a reliable and efficient molten aluminum purification machine that delivers exceptional performance and quality results. With its advanced features, robust construction, and user-friendly design, this degassing unit is a valuable asset for businesses seeking to enhance the quality and properties of their aluminum products. Invest in the Rotary Degassing Unit today and experience the benefits of superior molten aluminum purification in your industrial processes.
| Voltage V | 380V±10% |
| Refined Gas Flow Rate L/min | Adjustable From 15 To 30 |
| Power Supply Phases | Three-phase Four-wire |
| Frequency Hz | 50Hz |
| Total Power kW | 3kW |
| Refined flux powder spraying amount g/min | 0～350 |
| Graphite rotor speed r/min | Frequency Conversion Adjustment 0-600 |
| Net weight | 1200kg |
| Refinement and Degassing Time min | 0 To 99 |
| Refined Gas Pressure MPa | Adjustable From 0.1 To 0.6 |
HYDEB Rotary Degassing Unit XC210A(-1) is a top-of-the-line smelting purification equipment designed for aluminum processing. Manufactured in Jinan, China, this product is certified with CE and ISO9001, ensuring high-quality standards for its users.
With a minimum order quantity of 1 set and priced at 12000USD/set, the HYDEB Rotary Degassing Unit is a cost-effective solution for aluminum in-furnace impurity removal. It comes in a standard exporting package with a delivery time of 45 workdays and payment terms accepted via L/C and T/T.
One of the key features of this equipment is its versatility in refining and degassing time, which can be adjusted from 0 to 99 minutes. The refined gas flow rate is adjustable from 15 to 30 L/min, offering flexibility in the purification process.
Furthermore, the HYDEB Rotary Degassing Unit is equipped with a refined flux powder spraying system that allows for precise control of the powder amount from 0 to 350 g/min. This feature ensures efficient removal of impurities from the aluminum melt.
Operating at a voltage of 380V±10% and a frequency of 50Hz, this equipment is suitable for various aluminum refining applications. Its supply ability of 500 units per year makes it a reliable choice for aluminum foundries and smelting facilities.
Overall, HYDEB Rotary Degassing Unit XC210A(-1) is the go-to solution for aluminum furnace side refining equipment, offering advanced features and high performance for smelting purification processes.
Product Customization Services:
Customize your HYDEB Rotary Degassing Unit (Model: XC210A(-1)) to meet your specific requirements:
Customization options available for furnace side refining equipment, aluminum In-Furnace Slag Removal Equipment, and aluminum In-Furnace Impurity Removal Equipment.
The Rotary Degassing Unit is designed to remove dissolved gases from molten metal in a foundry environment. The unit operates by rotating a shaft with graphite rotor blades through the molten metal, allowing the gases to escape through the rotor blades and into a hood system for extraction.
Our Product Technical Support team is available to provide guidance on the setup, operation, and maintenance of the Rotary Degassing Unit. Additionally, we offer a range of services including installation support, troubleshooting assistance, and training programs to ensure optimal performance of the unit.
Product Name: Rotary Degassing Unit
Description: The Rotary Degassing Unit is designed to efficiently remove gases from molten metal to improve casting quality.
Package Contents: - Rotary Degassing Unit - Instruction Manual - Power Cord
Shipping Information: - Shipping Method: Standard Shipping - Shipping Time: 5-7 business days - Shipping Cost: $20.00
