Product Details:
|
| Refined Gas Pressure MPa: | Adjustable From 0.1 To 0.6 | Net Weight: | 1200kg |
|---|---|---|---|
| Frequency Hz: | 50Hz | Refining Flux Particle Size Mm: | ≤5 |
| Refinement And Degassing Time Min: | 0 To 99 | Graphite Rotor Speed R/min: | Frequency Conversion Adjustment 0-600 |
| Refined Gas Purity %: | ≥99.996 | Refined Flux Powder Spraying Amount G/min: | 0～350 |
| Highlight: | Adjustable Aluminum Degassing Machine,3kW Aluminum Degassing Machine,Adjustable Aluminium Degassing Machine |
||

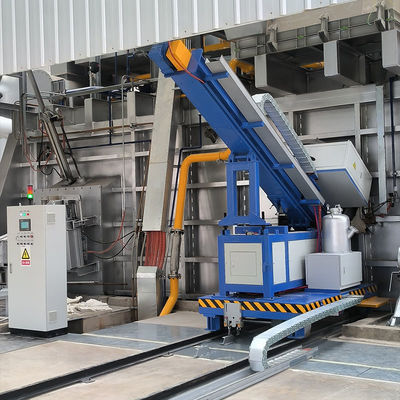

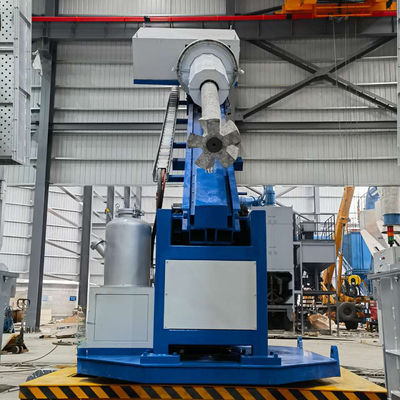

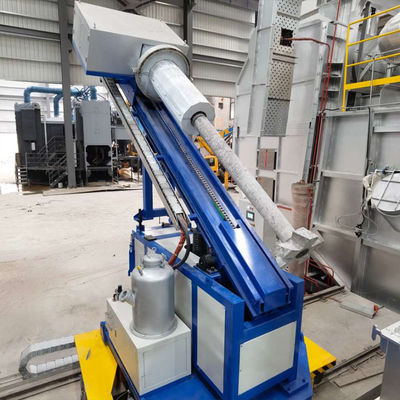

The Rotary Degassing Unit is a cutting-edge molten Aluminum degassing machine designed to significantly enhance the quality of aluminum production. This advanced equipment serves as an essential component of aluminum In-Furnace Impurity Removal Equipment and aluminum In-Furnace Slag Removal Equipment.
Key Features:
Refined Gas Flow Rate L/min: Adjustable From 15 To 30
Refined Gas Pressure MPa: Adjustable From 0.1 To 0.6
Refined flux powder spraying amount g/min: 0～350
Graphite rotor speed r/min: Frequency Conversion Adjustment 0-600
Frequency Hz: 50Hz
The Rotary Degassing Unit offers unparalleled flexibility with an adjustable Refined Gas Flow Rate ranging from 15 to 30 L/min. This feature allows for precise control over the degassing process, ensuring optimal results and minimal wastage.
Moreover, the equipment enables users to adjust the Refined Gas Pressure within the range of 0.1 to 0.6 MPa, offering versatility to accommodate different production requirements and aluminum compositions.
With a refined flux powder spraying amount that can be set between 0 to 350 g/min, the Rotary Degassing Unit ensures efficient removal of impurities and slag from molten aluminum, enhancing the overall quality of the final product.
Equipped with a graphite rotor speed adjustment capability ranging from 0 to 600 r/min, users can fine-tune the degassing process to achieve optimal results based on specific production parameters and desired output quality.
Operating at a frequency of 50Hz, this degassing unit delivers consistent and reliable performance, making it a dependable solution for aluminum producers seeking to improve their production processes.
In summary, the Rotary Degassing Unit is a state-of-the-art molten Aluminum degassing machine that offers unparalleled control and efficiency in the removal of impurities and slag from aluminum melts. With its adjustable gas flow rate, pressure, flux powder spraying amount, graphite rotor speed, and operating frequency, this equipment empowers users to achieve superior results and enhance the overall quality of their aluminum production.
| Refined Gas Flow Rate L/min: | Adjustable From 15 To 30 |
| Power wire diameter mm2: | ≥2.5 |
| Refined Gas Purity %: | ≥99.996 |
| Refined flux powder spraying amount g/min: | 0～350 |
| Graphite rotor speed r/min: | Frequency Conversion Adjustment 0-600 |
| Frequency Hz: | 50Hz |
| Power Supply Phases: | Three-phase Four-wire |
| Total Power kW: | 3kW |
| Net weight: | 1200kg |
| Voltage V: | 380V±10% |
Product Application Occasions and Scenarios for HYDEB Rotary Degassing Unit XC210A(-1)
Brand Name: HYDEB
Model Number: XC210A(-1)
Place of Origin: Jinan, China
Certification: CE ISO9001
Minimum Order Quantity: 1 set
Price: 12000USD/set
Packaging Details: Standard exporting package
Delivery Time: 45 workdays
Payment Terms: L/C, T/T
Supply Ability: 500 units per year
Frequency Hz: 50Hz
Total Power kW: 3kW
Net weight: 1200kg
Refining flux particle size mm: ≤5
Refined flux powder spraying amount g/min: 0～350
HYDEB Rotary Degassing Unit XC210A(-1) is a molten Aluminum purification machine designed for aluminum smelting purification equipment. It is widely used as refining equipment in front of the furnace in various scenarios.
Product Customization Services for the aluminum Refining degassing machine, aluminum In-Furnace Impurity Removal Equipment, aluminum Refining degassing machine:
Brand Name: HYDEB
Model Number: XC210A(-1)
Place of Origin: Jinan, China
Certification: CE ISO9001
Minimum Order Quantity: 1 set
Price: 12000USD/set
Packaging Details: Standard exporting package
Delivery Time: 45 workdays
Payment Terms: L/C, T/T
Supply Ability: 500 units per year
Graphite rotor speed r/min: Frequency Conversion Adjustment 0-600
Refined Gas Pressure MPa: Adjustable From 0.1 To 0.6
Power Supply Phases: Three-phase Four-wire
Voltage V: 380V±10%
Frequency Hz: 50Hz
The Rotary Degassing Unit is designed to remove hydrogen gas from molten aluminum in a foundry setting. Our product technical support team is available to provide assistance with installation, troubleshooting, and maintenance of the unit. Additionally, we offer a range of services including training programs, on-site visits, and remote monitoring to ensure optimal performance of the degassing unit.
Product Name: Rotary Degassing Unit
Product Description: The Rotary Degassing Unit is designed to remove gases, impurities, and oxides from molten metal to improve casting quality.
Package Contents: - Rotary Degassing Unit - User Manual - Power Cord - Necessary Installation Accessories
Product Packaging: The Rotary Degassing Unit is securely packed in a sturdy cardboard box with protective foam inserts to prevent any damage during transportation.
Shipping Information: - Shipping Method: Standard ground shipping - Shipping Time: 3-5 business days - Shipping Cost: Calculated at checkout based on location
Q: What is the brand name of the Rotary Degassing Unit?
A: The brand name is HYDEB.
Q: What is the model number of the Rotary Degassing Unit?
A: The model number is XC210A(-1).
Q: Where is the Rotary Degassing Unit manufactured?
A: The Rotary Degassing Unit is manufactured in Jinan, China.
Q: What certifications does the Rotary Degassing Unit have?
A: The Rotary Degassing Unit is certified with CE and ISO9001.
Q: What is the minimum order quantity for the Rotary Degassing Unit?
A: The minimum order quantity is 1 set.
