Product Details:
|
| Power Wire Diameter Mm2: | ≥2.5 | Refinement And Degassing Time Min: | 0 To 99 |
|---|---|---|---|
| Power Supply Phases: | Three-phase Four-wire | Net Weight: | 1200kg |
| Frequency Hz: | 50Hz | Refined Gas Pressure MPa: | Adjustable From 0.1 To 0.6 |
| Total Power KW: | 3kW | Refining Flux Particle Size Mm: | ≤5 |
| Highlight: | 380V Aluminum Degassing Machine,0～350 g/min Aluminum Degassing Machine |
||

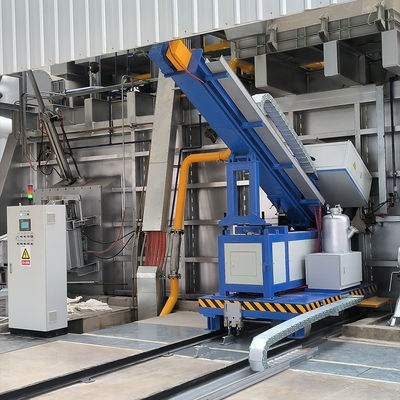

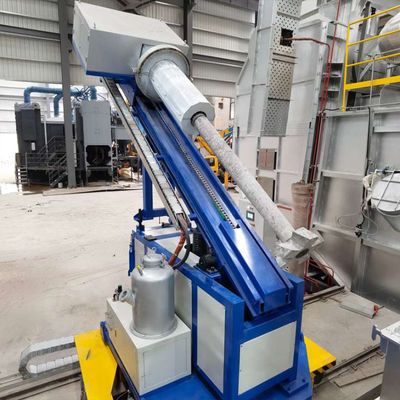

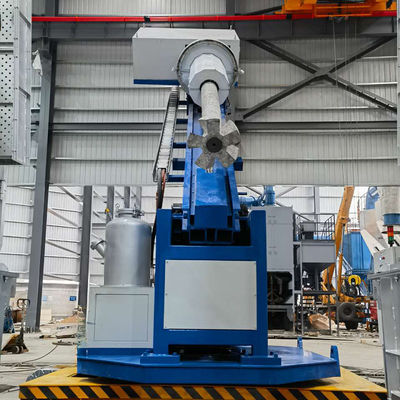

Introducing our Rotary Degassing Unit, a top-of-the-line aluminum smelting purification equipment designed to enhance the quality of molten aluminum through efficient degassing processes. This advanced degassing machine is equipped with cutting-edge features that ensure optimal refinement and degassing time, ranging from 0 to 99 minutes.
With a robust power wire diameter of ≥2.5 mm², our Rotary Degassing Unit operates seamlessly at a frequency of 50Hz, providing a stable and reliable performance for your aluminum smelting purification needs. The refined gas pressure can be easily adjusted within the range of 0.1 to 0.6 MPa, allowing for precise control and customization based on specific requirements.
One of the key highlights of our Rotary Degassing Unit is its adjustable refined gas flow rate, which can be set between 15 to 30 L/min. This flexibility in gas flow ensures thorough degassing and refinement of molten aluminum, resulting in superior quality output that meets the highest industry standards.
Designed for efficiency and effectiveness, our Rotary Degassing Unit is a must-have addition to any aluminum smelting facility looking to improve the purity and quality of their products. With its user-friendly controls and high-performance capabilities, this degassing machine streamlines the purification process and enhances overall productivity.
Whether you are involved in aluminum casting, extrusion, or any other smelting operation, our Rotary Degassing Unit offers a reliable solution to remove impurities and gases from the molten metal, resulting in cleaner and more refined aluminum products. Trust in our aluminum smelting purification equipment to deliver consistent and exceptional results every time.
| Refinement and Degassing Time (min) | 0 - 99 |
| Refined Gas Flow Rate (L/min) | Adjustable from 15 to 30 |
| Refined Gas Purity (%) | ≥99.996 |
| Total Power (kW) | 3kW |
| Refined Flux Powder Spraying Amount (g/min) | 0 - 350 |
| Frequency (Hz) | 50Hz |
| Power Wire Diameter (mm 2 ) | ≥2.5 |
| Net Weight | 1200kg |
| Refined Gas Pressure (MPa) | Adjustable from 0.1 to 0.6 |
| Voltage (V) | 380V ±10% |
The HYDEB XC210A(-1) Rotary Degassing Unit is a high-quality product designed for refining equipment in front of the furnace, aluminum in-furnace impurity removal, and molten aluminum degassing applications. This advanced degassing unit is manufactured in Jinan, China, and comes with CE ISO9001 certification.
With a refined flux powder spraying amount ranging from 0 to 350 g/min, this degassing unit is highly efficient in removing impurities from molten aluminum. The adjustable refined gas flow rate from 15 to 30 L/min ensures precise control over the degassing process.
The XC210A(-1) model operates at a voltage of 380V±10% and has a total power of 3kW. Weighing 1200kg, this unit is sturdy and reliable for continuous operation. The minimum order quantity is 1 set, with each set priced at 12000USD and packaged in a standard exporting package for safe delivery.
Customers can expect a delivery time of 45 workdays, with payment terms available in L/C or T/T. The HYDEB Rotary Degassing Unit has a supply ability of 500 units per year, making it readily accessible for various industrial applications.
Product Customization Services for the Rotary Degassing Unit:
Brand Name: HYDEB
Model Number: XC210A(-1)
Place of Origin: Jinan, China
Certification: CE ISO9001
Minimum Order Quantity: 1 set
Price: 12000USD/set
Packaging Details: Standard exporting package
Delivery Time: 45 workdays
Payment Terms: L/C, T/T
Supply Ability: 500 units per year
Refined Gas Flow Rate L/min: Adjustable From 15 To 30
Frequency Hz: 50Hz
Net weight: 1200kg
Total Power kW: 3kW
Power Supply Phases: Three-phase Four-wire
The Rotary Degassing Unit is a high-performance equipment designed to remove dissolved gases from molten aluminum. Our Product Technical Support team is dedicated to providing expert assistance with installation, operation, and troubleshooting of the unit to ensure optimal performance.
In addition, we offer a range of services to support our customers, including regular maintenance programs, on-site training for operators, and access to spare parts to minimize downtime.
Product Name: Rotary Degassing Unit
Description: The Rotary Degassing Unit is designed to efficiently remove impurities from molten metal to improve metal quality.
Package Contents:
Shipping Information:
Q: What is the brand name of this Rotary Degassing Unit?
A: The brand name is HYDEB.
Q: What is the model number of this Rotary Degassing Unit?
A: The model number is XC210A(-1).
Q: Where is this Rotary Degassing Unit manufactured?
A: It is manufactured in Jinan, China.
Q: What certifications does this Rotary Degassing Unit have?
A: It is CE and ISO9001 certified.
Q: What is the minimum order quantity for this Rotary Degassing Unit?
A: The minimum order quantity is 1 set.
