Product Details:
|
| Number Of Rotors: | 3 | Maximum Molten Aluminum Flow T/hr: | 15 |
|---|---|---|---|
| L/min Maximum Gas Consumption L/min: | 140 | Refined Gas Purity %: | ≥99.996 |
| Maximum Temperature Of Molten Aluminum: | 750℃ | Launder Shell Surface Temperature: | ≤60℃ |
| Launder Lining Life: | ≥12 Months | Rotor Speed: | 100-600rpm |
| Inert Gases: | High-purity N2, High-purity Ar | Power Supply: | 380V AC 50Hz, ≤10KVA |
| Highlight: | Launder Type Degassing Unit,In-Line Rotor Degassing Unit |
||
The refinement and degassing time of the Rotary Degassing Unit can be set from 0 to 99 minutes, providing flexibility in the refining process to achieve the desired results. The refined gas pressure is adjustable from 0.1 to 0.6 MPa, allowing for fine-tuning of the refining process to meet specific requirements. Additionally, the graphite rotor speed can be adjusted through frequency conversion, with a range of 0 to 600 r/min.
The Rotary Degassing Unit operates at a frequency of 50Hz, making it suitable for use in a variety of locations. Its compact design and easy-to-use interface make it a convenient and practical solution for aluminum refining and degassing. With its ability to remove impurities from molten aluminum, the Rotary Degassing Unit is an essential piece of aluminum in-furnace slag removal equipment that can significantly improve the quality of aluminum products.

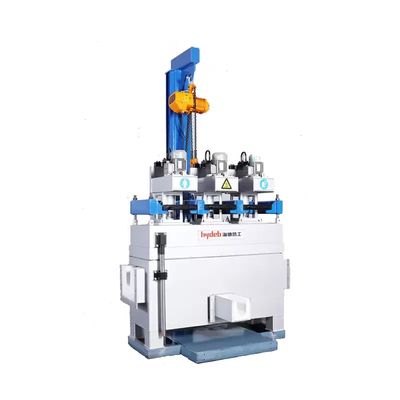

Product Name: Rotary Degassing Unit
This product is a Smelting Purification Equipment and aluminum Furnace side refining equipment.
| Technical Parameter | Value |
|---|---|
| Product Name | Rotary Degassing Unit |
| Graphite Rotor Speed (r/min) | Frequency Conversion Adjustment 0-600 |
| Net Weight (kg) | 600 |
| Frequency (Hz) | 50 |
| Refining Flux Particle Size (mm) | ≤5 |
| Refined Gas Flow Rate (L/min) | Adjustable From 15 To 30 |
| Refined Flux Powder Spraying Amount (g/min) | 0～350 |
| Power Wire Diameter (mm2) | ≥2.5 |
| Refinement and Degassing Time (min) | 0 To 99 |
| Refined Gas Pressure (MPa) | Adjustable From 0.1 To 0.6 |
| Voltage (V) | 380 |
| Product Type | Aluminum Refining Degassing Machine, Molten Aluminum Degassing Machine, Aluminum Smelting Purification Equipment |
The HYDEB Rotary Degassing Unit is a top-of-the-line aluminum refining degassing machine. It is designed to remove in-furnace impurities in order to produce high-quality aluminum products. The refined gas purity percentage is ≥99.996 and the refined gas pressure can be adjusted from 0.1 to 0.6 MPa. Its net weight is 600kg and total power is 4kW. The graphite rotor speed is frequency conversion adjustable from 0-600 r/min.
The Rotary Degassing Unit is ideal for use in various aluminum production scenarios, such as aluminum casting, aluminum extrusion, aluminum rolling, and aluminum forging. It is also suitable for use in different industries, such as aerospace, automotive, construction, and packaging.
Overall, the HYDEB Rotary Degassing Unit is the perfect aluminum in-furnace impurity removal equipment that guarantees high-quality aluminum products.
Originating from Jinan, China, this Rotary Degassing Unit has CE ISO9001 certification and a net weight of 600kg. The refined gas pressure MPa is adjustable from 0.1 to 0.6, with a total power of 4kW and a graphite rotor speed r/min of frequency conversion adjustment 0-600.
The minimum order quantity for this product is 1 set, with a price of 9998USD/set. It is packaged in standard exporting packages and has a delivery time of 45 workdays. Payment terms include L/C, T/T, Western Union, and MoneyGram. The supply ability for this product is 60 sets per year, with a frequency of 50Hz.
The Rotary Degassing Unit is a state-of-the-art product designed to remove hydrogen gas from molten aluminum using a spinning rotor. Our technical support and services for this product include:
- Installation and setup assistance
- Troubleshooting and repair services
- Regular maintenance services
- Training for operators and maintenance personnel
- Upgrades and customization options
Our team of experienced technicians is dedicated to providing prompt and efficient support to ensure the optimal performance of your Rotary Degassing Unit.
Product Packaging:
The Rotary Degassing Unit will be packed in a sturdy cardboard box with foam padding to ensure safe transportation. The box will be labeled with the product name and a clear handling instruction label.
Shipping:
The product will be shipped via standard ground shipping. Alternatively, expedited shipping options are available for an additional fee. Shipping fees will be calculated at checkout based on the customer's location.
Q1: What is the brand name of the Rotary Degassing Unit?
A1: The brand name of the Rotary Degassing Unit is HYDEB.
Q2: What is the model number of the Rotary Degassing Unit?
A2: The model number of the Rotary Degassing Unit is XCP220-1.
Q3: Where is the Rotary Degassing Unit manufactured?
A3: The Rotary Degassing Unit is manufactured in Jinan, China.
Q4: Does the Rotary Degassing Unit have any certifications?
A4: Yes, the Rotary Degassing Unit has CE and ISO9001 certifications.
Q5: What is the minimum order quantity of the Rotary Degassing Unit and how much does it cost?
A5: The minimum order quantity of the Rotary Degassing Unit is 1 set and it costs 9998USD/set. Standard exporting package is included and the delivery time is 45 workdays. Payment terms accepted are L/C, T/T, Western Union and MoneyGram. The supply ability is 60 sets per year.
