Product Details:
|
| Aluminum Liquid Depth Range: | 600-1100㎜ | Refining Degassing Time: | 0～99min |
|---|---|---|---|
| Graphite Rotor Speed: | 0～400r/min | Maximum Flow Rate Of Refining Gas: | Adjustable From 6～30m3/h |
| Aluminum Liquid Temperature: | 680-750℃ | Refining Gas Pressure: | 0.4～0.6MPa |
| Refining Flux: | Granularity≤3mm | Maximum Furnace Time (including Preheating, Refining, Etc.): | 90min |
| Highlight: | Graphite rotor Rotary Flux Injection Machine,Aluminum refining Rotary Flux Injection Machine,400r/min Rotary Flux Injection Machine |
||

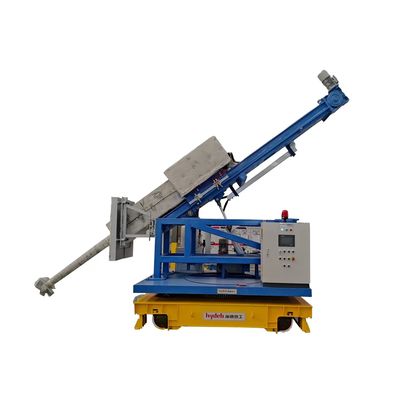

Rotary Flux Injectior
The machine is powered by a reliable 380V/220V±10% power supply, ensuring that it is able to operate efficiently and effectively. The temperature of the aluminum liquid is maintained between 680-750℃, which is the ideal temperature range for aluminum refining. The machine is also equipped with a variety of safety features to ensure that it operates safely and effectively, including a pressure relief valve and an emergency stop button.
The Rotary Flux Injector is ideal for use in a variety of industries, including the aluminum industry. The machine is able to remove impurities from the aluminum, which increases the purity of the metal and improves its quality. This results in a higher quality product that is more valuable and can be used in a variety of applications.
The Rotary Flux Injector is easy to use and requires minimal maintenance. It is designed to be durable and long-lasting, ensuring that it provides reliable performance for many years. The machine is also designed to be energy-efficient, helping to reduce operating costs and improve the overall efficiency of the refining process.
In summary, the Rotary Flux Injector is a high-quality machine that is designed for aluminum refining and degassing slag removal. It is powered by a reliable power supply and is equipped with a variety of safety features to ensure that it operates safely and effectively. The machine is easy to use, requires minimal maintenance, and is designed to be durable and long-lasting. It is an ideal choice for any industry that requires high-quality aluminum with minimal impurities.
| Technical Parameter | Value |
|---|---|
| Refined gas purity | ≥99.996% |
| Type of refining gas | High-purity Nitrogen Or Argon Gas |
| Refining flux | Granularity≤3mm |
| Graphite rotor speed | 0～400r/min |
| Refining gas pressure | 0.4～0.6MPa |
| Aluminum liquid temperature | 680-750℃ |
| Maximum furnace time (including preheating, refining, etc.) | 90min |
| Motor power | 300W |
| Minimum cooling time between refining | 20min |
| Refining degassing time | 0～99min |
The Rotary Flux Injector, also known as a Rotary Flux Injector with rotor, is designed for degassing and slag removal.
