Product Details:
|
| Graphite Rotor Speed R/min: | Frequency Conversion Adjustment 0-600 | Voltage V: | 380V |
|---|---|---|---|
| Frequency Hz: | 50Hz | Total Power KW: | 4kW |
| Refinement And Degassing Time Min: | 0 To 99 | Refining Flux Particle Size Mm: | ≤5 |
| Refined Gas Purity %: | ≥99.996 | Refined Gas Pressure MPa: | Adjustable From 0.1 To 0.6 |
| Highlight: | 0-350 g/min Rotary Degassing Unit,5mm Rotary Degassing Unit,Refined Flux Powder Rotary Degassing Unit |
||
With a refinement and degassing time ranging from 0 to 99 minutes, our degassing unit ensures that your aluminum is properly refined and purified. The refined gas purity is also guaranteed to be at least 99.996%, which means that you can trust in the quality of your final product.
Our Rotary Degassing Unit also boasts a refined flux powder spraying amount of 0 to 350 g/min, as well as a total power of 4kW. This ensures that your aluminum is properly heated and refined during the degassing process, resulting in a high-quality final product.
In addition, our refining flux particle size is ≤5mm, which means that impurities are effectively removed from your aluminum. Our Rotary Degassing Unit is the perfect choice for any aluminum smelting or refining operation that requires high-quality, pure aluminum.
This aluminum degassing machine is ideal for use as refining equipment in front of furnace. It can be used as aluminum In-Furnace Slag Removal Equipment.
| Product Attribute | Value |
| Product Name | Rotary Degassing Unit |
| Product Type | Aluminum degassing machine, Smelting Purification Equipment, Furnace side refining equipment |
| Voltage V | 380V |
| Total Power kW | 4kW |
| Frequency Hz | 50Hz |
| Power Supply Phases | Three-phase Four-wire |
| Refinement and Degassing Time min | 0 To 99 |
| Refined Gas Flow Rate L/min | Adjustable From 15 To 30 |
| Net weight | 600kg |
| Refining flux particle size mm | ≤5 |
| Graphite rotor speed r/min | Frequency Conversion Adjustment 0-600 |
| Refined Gas Purity % | ≥99.996 |

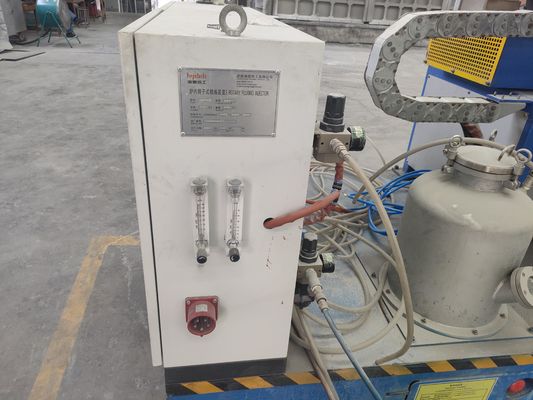

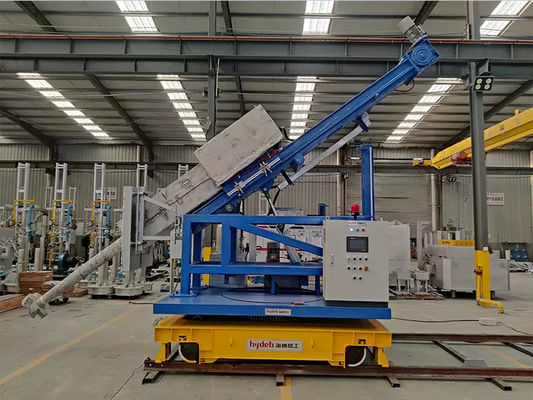

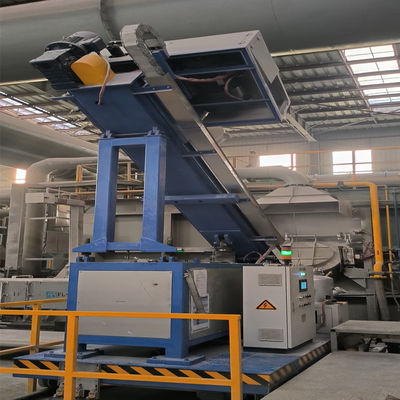

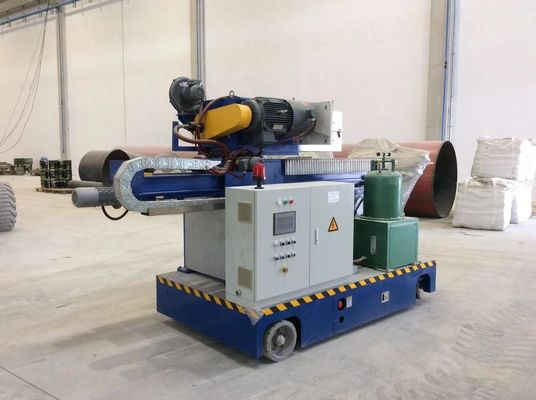

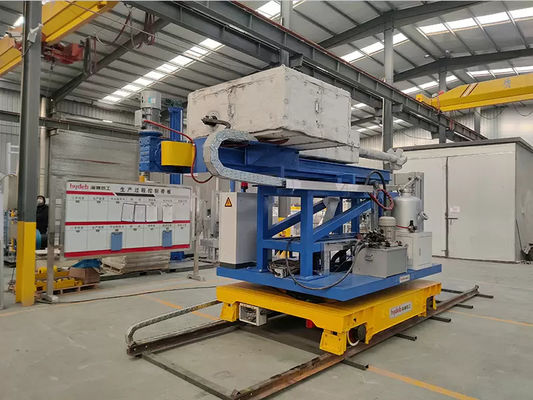

HYDEB Rotary Degassing Unit XCP220-1 is a molten Aluminum purification machine designed to remove hydrogen gas from molten Aluminum. It is a refining equipment in front of furnace, which can effectively improve the quality of Aluminum castings. The product is manufactured in Jinan, China and has obtained CE and ISO9001 certifications.
The degassing machine is suitable for a wide range of product application occasions, including aluminum alloy die casting plants, aluminum casting workshops and aluminum extrusion plants. It is especially useful in scenarios where high-quality aluminum castings are required, such as aerospace, automotive, and other high-tech industries.
The HYDEB Rotary Degassing Unit XCP220-1 is easy to operate and can be customized according to the specific needs of the customer. The graphite rotor speed can be adjusted between 0-600 r/min, and the refined gas pressure can be adjusted from 0.1 to 0.6 MPa. The frequency is 50Hz, and the power wire diameter is ≥2.5 mm2. The net weight of the machine is 600kg, and it comes with standard exporting packaging.
The minimum order quantity for this product is 1 set, and the price is 9998USD/set. The delivery time is 45 workdays, and payment terms include L/C, T/T, Western Union, and MoneyGram. The supply ability is 60 sets per year.
The Rotary Degassing Unit is a high-quality product designed to remove unwanted gases from molten aluminum. Our technical support team is dedicated to helping you get the most out of your degassing unit. We offer:
In addition to our technical support, we also offer a range of services to ensure your degassing unit is always operating at peak performance:
Our goal is to provide you with the best possible support and services to ensure your Rotary Degassing Unit is always working at its best.
Product Packaging:
The Rotary Degassing Unit will come in a sturdy cardboard box with foam inserts to ensure safe transportation and protection of the product. The product will be packed securely and sealed to prevent any damage during shipping.
Shipping:
The Rotary Degassing Unit will be shipped through a reliable and trusted courier service. Shipping costs will be calculated based on the destination and weight of the package. Customers will receive a tracking number once the product is shipped to track the delivery status.
Q: What is the brand name of this degassing unit?
A: The brand name of this degassing unit is HYDEB.
Q: What is the model number of this degassing unit?
A: The model number of this degassing unit is XCP220-1.
Q: Where is this degassing unit manufactured?
A: This degassing unit is manufactured in Jinan, China.
Q: What certifications does this degassing unit have?
A: This degassing unit has CE and ISO9001 certifications.
Q: What is the minimum order quantity for this degassing unit?
A: The minimum order quantity for this degassing unit is 1 set.
Q: What is the price of this degassing unit?
A: The price of this degassing unit is 9998USD/set.
Q: What are the packaging details for this degassing unit?
A: The packaging details for this degassing unit are standard exporting package.
Q: What is the delivery time for this degassing unit?
A: The delivery time for this degassing unit is 45 workdays.
Q: What are the payment terms for this degassing unit?
A: The payment terms for this degassing unit are L/C, T/T, Western Union, and MoneyGram.
Q: What is the supply ability of this degassing unit?
A: The supply ability of this degassing unit is 60 sets per year.
