680-750C Aluminum Liquid Temperature And 0~99min Refining Degassing Time Rotary Flux Injector With Rotor

Certification
China Jinan Hydeb Thermal Tech Co., Ltd. certification
China Jinan Hydeb Thermal Tech Co., Ltd. certification
I'm Online Chat Now

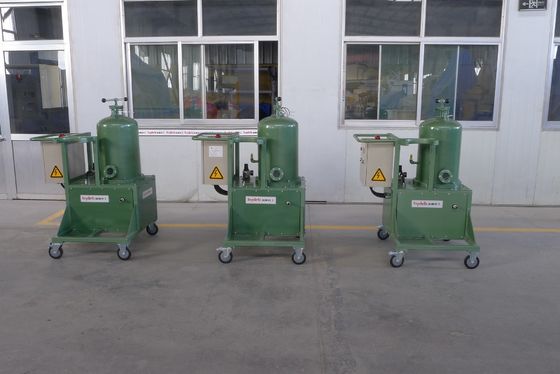

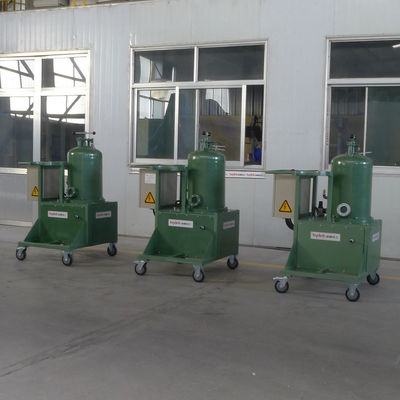

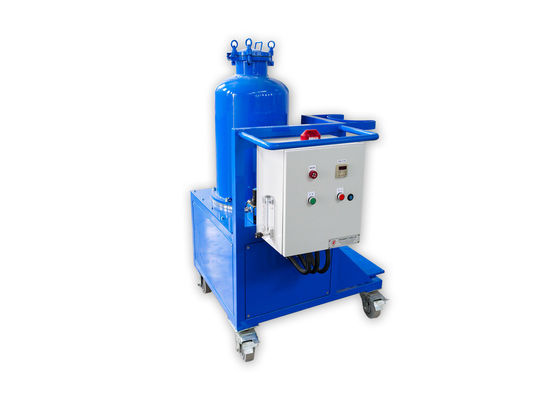

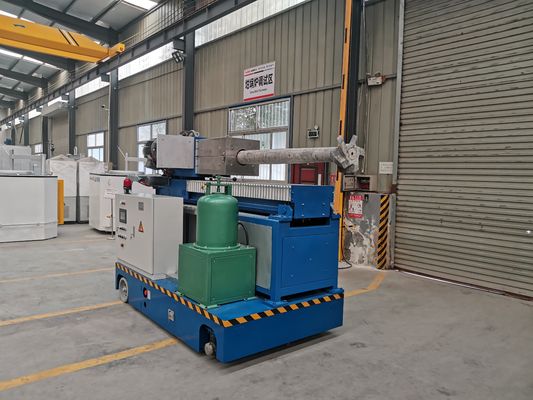

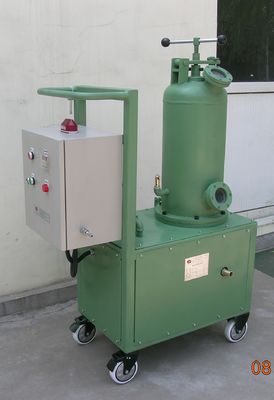

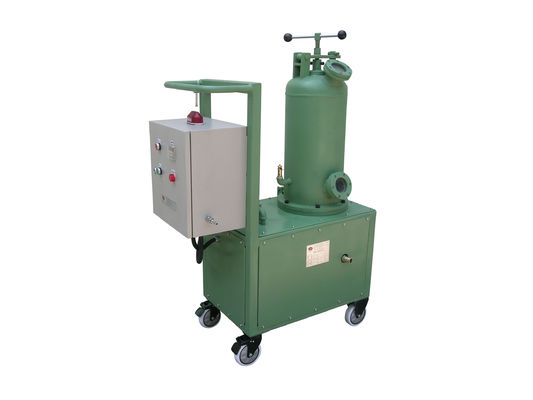

680-750C Aluminum Liquid Temperature And 0~99min Refining Degassing Time Rotary Flux Injector With Rotor

680-750C Aluminum Liquid Temperature And 0~99min Refining Degassing Time Rotary Flux Injector With Rotor
680-750C Aluminum Liquid Temperature And 0~99min Refining Degassing Time Rotary Flux Injector With Rotor 680-750C Aluminum Liquid Temperature And 0~99min Refining Degassing Time Rotary Flux Injector With Rotor 680-750C Aluminum Liquid Temperature And 0~99min Refining Degassing Time Rotary Flux Injector With Rotor 680-750C Aluminum Liquid Temperature And 0~99min Refining Degassing Time Rotary Flux Injector With Rotor 680-750C Aluminum Liquid Temperature And 0~99min Refining Degassing Time Rotary Flux Injector With Rotor 680-750C Aluminum Liquid Temperature And 0~99min Refining Degassing Time Rotary Flux Injector With Rotor

Large Image :  680-750C Aluminum Liquid Temperature And 0~99min Refining Degassing Time Rotary Flux Injector With Rotor

Product Details:
Place of Origin: Jinan, China
Brand Name: HYDEB
Certification: CE ISO9001
Model Number: HDR-2221
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 5000USD/set
Packaging Details: Standard exporting package
Delivery Time: 45 workdays
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 60 sets per year

680-750C Aluminum Liquid Temperature And 0~99min Refining Degassing Time Rotary Flux Injector With Rotor

Description
Maximum Flow Rate Of Refining Gas: Adjustable From 6~30m3/h Aluminum Liquid Depth Range: 600-1100㎜
Minimum Cooling Time Between Refining: 20min Refining Gas Pressure: 0.4~0.6MPa
Type Of Refining Gas: High-purity Nitrogen Or Argon Gas Power Supply: 380V/220V±10%
Refined Gas Purity: ≥99.996% Refining Flux: Granularity≤3mm
Highlight:

Rotor Rotary Flux Injector

,

rotary flux injection

,

RFI Rotary Flux Injector

Product Description:



680-750C Aluminum Liquid Temperature And 0~99min Refining Degassing Time Rotary Flux Injector With Rotor 0

Features:

  • Product Name: Flux Injection Machine
  • Graphite rotor speed: 0~400r/min
  • Maximum flow rate of refining gas: Adjustable From 6~30m3/h
  • Refining flux: Granularity≤3mm
  • Bucket capacity: 50L
  • Aluminum liquid temperature: 680-750℃
  • Features:
    • Degassing slag removal and impurity
    • Aluminum refining


Technical Parameters:

Graphite rotor speed 0~400r/min
Refining gas pressure 0.4~0.6MPa
Type of refining gas High-purity Nitrogen Or Argon Gas
Power supply 380V/220V±10%
Refining degassing time 0~99min
Aluminum liquid depth range 600-1100㎜
Refined gas purity ≥99.996%
Refining flux Granularity≤3mm
Aluminum liquid temperature 680-750℃
Motor power 300W


680-750C Aluminum Liquid Temperature And 0~99min Refining Degassing Time Rotary Flux Injector With Rotor 1

Applications:

The HDR-2221 Flux Injection Machine has a bucket capacity of 50L and a refining degassing time of 0 to 99 minutes. The maximum flow rate of refining gas is adjustable from 6 to 30m3/h, ensuring efficient and effective degassing and slag removal. The temperature range for aluminum liquid is between 680 and 750℃, making it suitable for use in various casting scenarios.

The product is suitable for a variety of application occasions and scenarios, including the manufacture of aluminum alloy wheels, aluminum profiles, aluminum ingots, and other aluminum products. It is also suitable for use in industries such as aerospace, automotive, and construction.

The HDR-2221 Flux Injection Machine has a minimum order quantity of 1 set and is priced at 5000USD per set. It comes with standard exporting packaging and has a delivery time of 45 workdays. Payment terms accepted include L/C, T/T, Western Union, and MoneyGram, providing flexibility for customers. The product has a supply ability of 60 sets per year, ensuring that customers can obtain the product when they need it.



Customization:

The Flux Injection Machine is a Rotary Flux Injector with rotor, designed for degassing and slag removal. The refining flux used has a granularity of ≤3mm. The aluminum liquid temperature range is 680-750℃ and the type of refining gas used is High-purity Nitrogen Or Argon Gas. The graphite rotor speed can be adjusted from 0-400r/min. The refined gas purity is ≥99.996%.



Support and Services:

The Flux Injection Machine is a complex piece of equipment that requires technical support and services to ensure its proper functioning. Our team of experts is available to provide you with the following services:

- Installation and setup assistance

- Troubleshooting and diagnostics

- Regular maintenance and repairs

- Upgrades and modifications to enhance performance

- Training and instruction for operators and maintenance personnel

We are committed to ensuring that your Flux Injection Machine operates at its optimal level and meets your production needs. Contact us for any technical support or service inquiries.



Packing and Shipping:

Product Packaging:

The Flux Injection Machine will be packaged in a sturdy cardboard box with foam inserts to ensure safe transport. The box will include the machine, power cord, user manual, and any additional accessories ordered.

Shipping:

Shipping will be handled by our trusted delivery partners and will be calculated based on the destination and shipping method selected at checkout. We offer both standard and expedited shipping options.
