Product Details:
|
| Refined Gas Pressure MPa: | Adjustable From 0.1 To 0.6 | Total Power KW: | <47kW |
|---|---|---|---|
| Frequency Hz: | 50Hz | Voltage V: | 380V |
| Pressure MPa: | 0.1-0.6 | Flow Rate (single Rotor) M3/h: | 0.5～3 |
| Aluminum Liquid Temperature: | 700～760℃ | Processing Power: | ＞30 T/h |
| Rotor Rotating Motor: | 1.1KWx2 | ||
| Highlight: | In Line Rotary Degassing Unit,Aluminum Refining Degassing Machine,Degassing Systems |
||

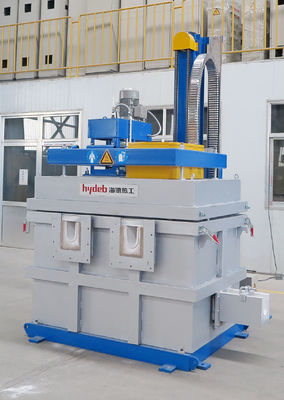

In-Line Degassing Box Type In-line Rotory Degassing Unit for Liquid aluminium degassing fluxing
Hydeb BDU Box Type In-line Rotor Degassing Unit is usually installed between the discharge outlet of the smelting furnace and the filter box. The Molten Aluminium flows into the box of the degassing unit and flows out from the outlet of the degassing unit, that is, realizing the purpose of continuous In-line refining.
◆ Optimum dispersion of the process gas in the molten aluminium
◆ The max. touch area and time between the dispersing bubbles and the molten aluminium
◆ The box is completely sealed to ensure a stable inert gas environment
◆ The molten aluminium surface is smooth without turbulent flow effect
◆ Easy for Installation & Maintenance
◆ Simple replacement of the inner lining of the pre-fired forming degassing box minimizes production downtime
◆ Low Maintenance & Operatrion Cost
◆ Long service life of heater and heater protection tubes
◆ Long service life of rotor and shaft
◆ Cooling gas without rotor rotating main shaft
| Graphite Rotor Speed r/min | 100-400 |
| Refinement and Degassing Time min | 0 To 99 |
| Power Supply Phases | Three-phase Four-wire |
| Rotor Swing Range | 30° |
| Refined Gas Flow Rate m³/h | Adjustable From 5.7 To 25.5 |
| Refined Gas Purity % | ≥99.997 |
| Refined Gas Pressure MPa | Adjustable From 0.1 To 0.6 |
| Frequency Hz | 50Hz |
| Voltage V | 380V |
| Rotor Tilt Range mm | 0 To 32° |
