Low Failture Refining Flux Injection Refining Equipment Lower Price High Quality

Low Failture Refining Flux Injection Refining Equipment Lower Price High Quality
Low Failture Refining Flux Injection Refining Equipment Lower Price High Quality Low Failture Refining Flux Injection Refining Equipment Lower Price High Quality Low Failture Refining Flux Injection Refining Equipment Lower Price High Quality Low Failture Refining Flux Injection Refining Equipment Lower Price High Quality Low Failture Refining Flux Injection Refining Equipment Lower Price High Quality

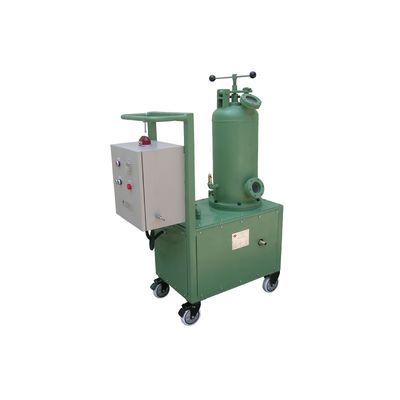

Large Image :  Low Failture Refining Flux Injection Refining Equipment Lower Price High Quality

Product Details:
Place of Origin: Jinan, China
Brand Name: HYDEB
Certification: CE ISO9001
Model Number: FFD-210
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 356USD/set
Packaging Details: Standard exporting package
Delivery Time: 45 workdays
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 60 sets per year

Low Failture Refining Flux Injection Refining Equipment Lower Price High Quality

Description
Refining Gas Pressure: 0.35~0.7MPa Crucible Capacity: 120L
Weight: Approximately 230kg Maximum Flow Rate Of Refining Gas: Adjustable From 0 To 0.30MPa
Flux Particle Size: ≤10 Mesh Flux Flow Rate: Adjustable From 0 To 5000g/min
Motor Power: 300W Type Of Refining Gas: High-purity Nitrogen Or Argon Gas
High Light:

lower price Injection refining equipment

,

Low failture Injection refining equipment

,

High Quality Flux Injection Refining Equipment

Product Description:

The dimensions of the Flux Injection Machine are customizable according to specific design requirements. The length, width, and height of the machine can be adjusted to fit different refining setups. This flexibility makes it a versatile and convenient tool for aluminum refining operations of different scales.

The Flux Injection Machine is capable of delivering flux at an adjustable flow rate of up to 5000g/min. This means that users have full control over the amount of flux injected into the molten aluminum, allowing them to fine-tune the refining process for optimal results. This feature makes the Flux Injection Machine a valuable tool for achieving consistent and high-quality aluminum refining.

The refining gas pressure of the Flux Injection Machine ranges from 0.35 to 0.7MPa, providing a stable and controlled environment for the injection process. This ensures that the flux is evenly distributed throughout the molten aluminum, resulting in a more thorough and effective refining process.

The Flux Injection Machine has a weight of approximately 230kg, making it a relatively lightweight and mobile tool. This allows users to move it around the refining setup as needed, providing flexibility and convenience in the refining process.

The Flux Injection Machine is designed to inject flux particles with a size of ≤10 Mesh. This ensures that the particles are small enough to be easily dispersed throughout the molten aluminum, facilitating a more efficient and effective refining process.

In summary, the Flux Injection Machine is a valuable tool for aluminum refining operations of all sizes. Its adjustable flux flow rate, customizable dimensions, and stable refining gas pressure make it a versatile and convenient machine for achieving consistent and high-quality results in aluminum refining processes. Its lightweight design and ability to inject small-sized flux particles further enhance its effectiveness and convenience.



Features:

  • Product Name: Flux Injection Machine
  • Motor power: 300W
  • Dimensions: Length × Width × Height (as Per Specific Design)
  • Power supply: 220V/50Hz
  • Weight: Approximately 230kg
  • Refining gas pressure: 0.35~0.7MPa
  • Features:
    • Aluminum refining
    • Degassing slag removal and impurity
    • Rotary Flux Injector


Technical Parameters:

Product Name Rotary Flux Injector
Application Aluminum refining
Flux Particle Size ≤10 Mesh
Motor Power 300W
Type of Refining Gas High-purity Nitrogen Or Argon Gas
Weight Approximately 230kg
Dimensions Length × Width × Height (as Per Specific Design)
Maximum Flow Rate of Refining Gas Adjustable From 0 To 0.30MPa
Flux Flow Rate Adjustable From 0 To 5000g/min
Power Supply 220V/50Hz
Crucible Capacity 120L
Refining Gas Pressure 0.35~0.7MPa
Product Description Rotary Flux Injector with rotor
Low Failture Refining Flux Injection Refining Equipment Lower Price High Quality 0

Applications:

HYDEB's FFD-210 Flux Injection Machine is an essential tool for aluminum refining, degassing slag removal, and impurity removal. This Rotary Flux Injector is designed and manufactured in Jinan, China, with a CE ISO9001 certification. The product can be purchased for a minimum order quantity of 1 set at a price of $5000 per set.

The Flux Injection Machine is highly versatile and can be used in various occasions and scenarios. Its flux flow rate is adjustable from 0 to 5000g/min, and its flux particle size is ≤10 Mesh. Additionally, the type of refining gas used is high-purity nitrogen or argon gas, and the motor power is 300W. The product's weight is approximately 230kg.

The Flux Injection Machine can be used in various industrial applications, including metal casting, foundry, and die casting. It is also suitable for use in aluminum smelting and refining plants.

The Flux Injection Machine is ideal for use in scenarios where there is a need to degas molten aluminum and remove impurities. It is also useful in scenarios where slag removal is necessary.

The product is packaged in a standard exporting package and has a delivery time of 45 workdays. Payment can be made through L/C, T/T, Western Union, or MoneyGram. The product's supply ability is 60 sets per year.



Customization:

Made in Jinan, China, this machine is certified by CE ISO9001 and has a minimum order quantity of 1 set. The price for each set is 5000USD and comes with standard exporting packaging. The delivery time is estimated to be 45 workdays, and payment can be made through L/C, T/T, Western Union, or MoneyGram.

The FFD-210 Flux Injection Machine runs on a 220V/50Hz power supply and requires high-purity Nitrogen or Argon Gas for refining. The refining gas pressure ranges from 0.35 to 0.7MPa, and the flux particle size is limited to ≤10 Mesh.

This machine weighs approximately 230kg and has a supply ability of 60 sets per year.



Support and Services:

The Flux Injection Machine is designed to provide high-quality and efficient injection of flux into printed circuit boards. Our product technical support and services include:

  • On-site installation and training: We offer on-site installation and training services to ensure that your Flux Injection Machine is set up correctly and you know how to use it effectively.
  • Technical support: Our technical support team is available to provide assistance with any issues or questions you may have regarding your Flux Injection Machine.
  • Maintenance and repair services: We offer maintenance and repair services to keep your Flux Injection Machine running smoothly and efficiently.
  • Upgrades and enhancements: We provide upgrades and enhancements to ensure that your Flux Injection Machine is up-to-date with the latest technology and features.

Our goal is to provide you with the best possible support and services to ensure that your Flux Injection Machine is operating at peak performance.
