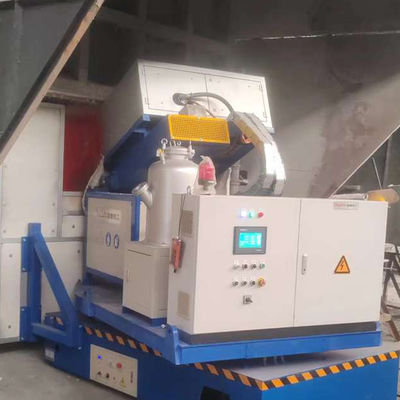

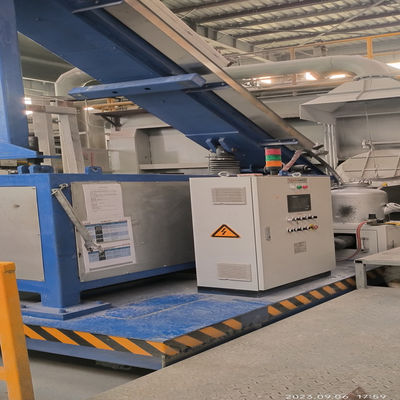

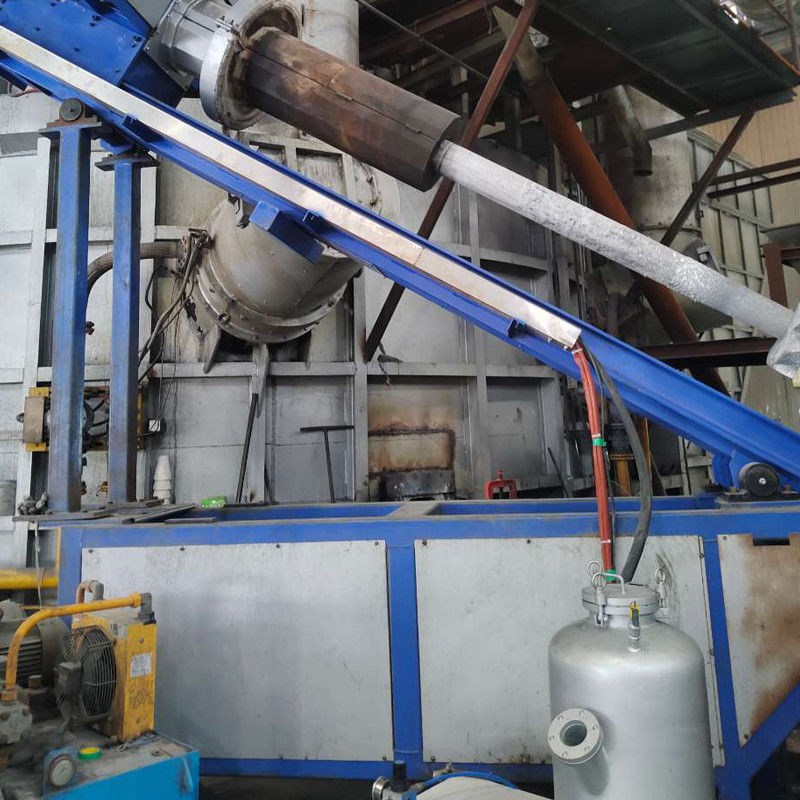

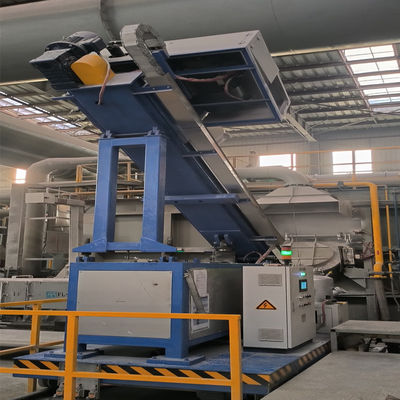

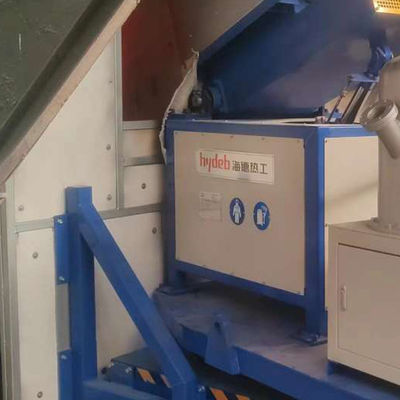

Hot Top Aluminum Billet Casting Machine Degassing Machine For Molten Aluminium

Certification
China Jinan Hydeb Thermal Tech Co., Ltd. certification
China Jinan Hydeb Thermal Tech Co., Ltd. certification
I'm Online Chat Now

Hot Top Aluminum Billet Casting Machine Degassing Machine For Molten Aluminium

Hot Top Aluminum Billet Casting Machine Degassing Machine For Molten Aluminium
Hot Top Aluminum Billet Casting Machine Degassing Machine For Molten Aluminium Hot Top Aluminum Billet Casting Machine Degassing Machine For Molten Aluminium Hot Top Aluminum Billet Casting Machine Degassing Machine For Molten Aluminium Hot Top Aluminum Billet Casting Machine Degassing Machine For Molten Aluminium Hot Top Aluminum Billet Casting Machine Degassing Machine For Molten Aluminium

Large Image :  Hot Top Aluminum Billet Casting Machine Degassing Machine For Molten Aluminium

Product Details:
Place of Origin: Jinan, China
Brand Name: HYDEB
Certification: CE ISO9001
Model Number: HDR-2xxx
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 9998USD/set
Packaging Details: Standard exporting package
Delivery Time: 45 workdays
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 60 sets per year

Hot Top Aluminum Billet Casting Machine Degassing Machine For Molten Aluminium

Description
Refined Gas Pressure MPa: Adjustable From 0.1 To 0.6 Voltage V: 380V
Graphite Rotor Speed R/min: 100-400 Power Supply Phases: Three-phase Four-wire
Total Power KW: <150kW Refined Gas Purity %: ≥99.997
Rotor Swing Range: 30° Refined Gas Flow Rate M³/h: Adjustable From 5.7 To 25.5
High Light:

Hot Top Rotary Degassing Unit

,

Aluminum Billet Casting Degassing Machine

,

Molten Aluminium Degassing Equipment

Product Description:

Rotary Degassing Unit - Molten Aluminum Degassing Machine

The Rotary Degassing Unit is a highly efficient and advanced molten aluminum degassing machine that is used as furnace side refining equipment. It is specially designed to remove impurities and gases from the molten aluminum to improve its overall quality. This aluminum furnace side refining equipment is an essential tool for aluminum production processes, ensuring the production of high-quality aluminum products.

Product Overview

The Rotary Degassing Unit is a powerful and reliable machine with a total power of less than 150 kW. It is equipped with advanced technology and superior features, making it an ideal choice for aluminum producers. This machine provides a swing range of 30°, allowing it to efficiently remove impurities and gases from the molten aluminum.

Product Attributes
  • Total Power: Less than 150kW
  • Refined Gas Purity: Equal to or greater than 99.997%
  • Voltage: 380V
  • Rotor Swing Range: 30°
  • Refinement and Degassing Time: 0 to 99 minutes
Key Features
  • High Efficiency: The Rotary Degassing Unit is designed to provide high efficiency in removing impurities and gases from the molten aluminum, resulting in the production of high-quality aluminum.
  • Advanced Technology: This machine is equipped with advanced technology, making it highly effective and reliable in its performance.
  • Ease of Use: The Rotary Degassing Unit is user-friendly and easy to operate, making it suitable for all levels of users.
  • Durable Construction: It is built with high-quality materials, ensuring its durability and long-term performance.
  • Safe and Environmentally Friendly: This machine is designed to be safe to use and environmentally friendly, making it a sustainable choice for aluminum production processes.
Application

The Rotary Degassing Unit is widely used in various aluminum production processes, including casting, extrusion, and rolling. It is suitable for all types of aluminum alloys and can be used for both small-scale and large-scale production.

Conclusion

The Rotary Degassing Unit is a highly efficient and reliable molten aluminum degassing machine that is essential for modern aluminum production processes. With its advanced technology and superior features, it ensures the production of high-quality aluminum products. It is an ideal choice for aluminum producers looking to improve their production processes and produce high-quality aluminum products.



Features:

  • Product Name: Rotary Degassing Unit
  • Voltage V: 380V
  • Total Power kW: <150kW
  • Refined Gas Pressure MPa: Adjustable From 0.1 To 0.6
  • Graphite Rotor Speed r/min: 100-400
  • Refined Gas Flow Rate m³/h: Adjustable From 5.7 To 25.5
  • Aluminum Smelting Purification Equipment
  • Furnace Side Refining Equipment
  • Molten Aluminum Degassing Machine


Technical Parameters:

Technical Parameters of Rotary Degassing Unit for Aluminum Degassing Machine
Product Name Rotary Degassing Unit for Aluminum Degassing Machine
Furnace Side Refining Equipment Yes
Aluminum Refining Degassing Machine Yes

Parameter Value
Total Power ≤150kW
Refined Gas Pressure Adjustable from 0.1 to 0.6MPa
Rotor Swing Range 30°
Frequency 50Hz
Voltage 380V
Rotor Tilt Range 0 to 32°
Refined Gas Purity ≥99.997%
Refined Gas Flow Rate Adjustable from 5.7 to 25.5m³/h
Graphite Rotor Speed 100-400r/min
Power Supply Phases Three-phase Four-wire
Hot Top Aluminum Billet Casting Machine Degassing Machine For Molten Aluminium 0

Applications:

HYDEB Rotary Degassing Unit

Brand Name: HYDEB
Model Number: HDR-2xxx
Place of Origin: Jinan, China
Certification: CE ISO9001
Minimum Order Quantity: 1 set
Price: 9998USD/set
Packaging Details: Standard exporting package
Delivery Time: 45 workdays
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 60 sets per year
Refined Gas Purity %: ≥99.997
Rotor Swing Range: 30°
Refinement and Degassing Time min: 0 To 99
Voltage V: 380V
Frequency Hz: 50Hz

HYDEB Rotary Degassing Unit is a specialized refining equipment designed for use in front of furnaces in metal casting industries. It is specifically developed for aluminum degassing and is a crucial machine for achieving high-quality aluminum casting products. This powerful machine is perfect for removing impurities and gases from molten aluminum, ensuring the production of superior quality castings.

The HYDEB Rotary Degassing Unit, also known as an Aluminum degassing machine, is equipped with advanced technology that guarantees efficient and precise degassing of molten aluminum. Its unique design allows for a rotor swing range of 30°, providing a wide coverage area for thorough degassing. This ensures that all impurities and gases are removed from the molten aluminum, resulting in a cleaner and purer metal for casting.

The product's high-quality performance is certified by CE and ISO9001, ensuring its reliability and durability. The HYDEB Rotary Degassing Unit is proudly made in Jinan, China, a city renowned for its industrial production and advanced technology. It is a testament to the product's exceptional quality and the company's commitment to delivering top-notch equipment.

The HDR-2xxx model of the HYDEB Rotary Degassing Unit is highly versatile and can be customized to meet the specific needs of different casting processes. It has a refined gas purity of ≥99.997%, ensuring the production of high-quality castings with minimal impurities. The refinement and degassing time can be adjusted from 0 to 99 minutes, providing flexibility and control over the degassing process.

The HYDEB Rotary Degassing Unit is designed to be easy to operate, with a user-friendly interface and control panel. It is also equipped with safety features to ensure the protection of workers and the machine. The unit requires a voltage of 380V and operates at a frequency of 50Hz, making it suitable for use in most industrial settings.

The HYDEB Rotary Degassing Unit is available for purchase at a competitive price of 9998USD per set. The minimum order quantity is only one set, making it accessible to both large and small-scale casting industries. The product's packaging is designed to withstand long-distance transportation, ensuring its safe arrival at the customer's location. The delivery time is 45 workdays, and the unit can be shipped worldwide.

With a supply ability of 60 sets per year, the HYDEB Rotary Degassing Unit can meet the demands of various casting industries. It is a valuable investment for companies looking to improve the quality of their castings and increase production efficiency. The product is also backed by a reliable after-sales service, providing customers with technical support and maintenance services.

The HYDEB Rotary Degassing Unit is the perfect solution for aluminum degassing in the metal casting industry. Its advanced technology, high-quality performance, and customizable features make it the go-to choice for companies looking to produce top-notch aluminum castings. Join the many satisfied customers who have experienced the benefits of using HYDEB Rotary Degassing Unit and take your aluminum casting production to the next level.



Customization:

Rotary Degassing Unit - Customization Service

Brand Name: HYDEB

Model Number: HDR-2xxx

Place of Origin: Jinan, China

Certification: CE ISO9001

Minimum Order Quantity: 1 set

Price: 9998USD/set

Packaging Details: Standard exporting package

Delivery Time: 45 workdays

Payment Terms: L/C, T/T, Western Union, MoneyGram

Supply Ability: 60 sets per year

Refined Gas Flow Rate m³/h: Adjustable From 5.7 To 25.5

Refined Gas Purity %: ≥99.997

Graphite Rotor Speed r/min: 100-400

Frequency Hz: 50Hz

Voltage V: 380V

Customization Service for Rotary Degassing Unit

At HYDEB, we understand that each customer may have different requirements for their molten Aluminum purification machine. That's why we offer customized services for our Rotary Degassing Unit to meet your specific needs.

With our experienced engineers and advanced technology, we can provide you with the perfect aluminum Smelting Purification Equipment that meets your production demands.

Customization Options
  • Refined Gas Flow Rate: Our Rotary Degassing Unit allows for an adjustable flow rate, ranging from 5.7 to 25.5 m³/h, to suit your specific refining needs.
  • Refined Gas Purity: With a minimum purity of ≥99.997%, our degassing unit ensures the highest quality of refined gas for your molten Aluminum.
  • Graphite Rotor Speed: The speed of our graphite rotor can be adjusted from 100-400 r/min, providing you with precise control over the degassing process.
  • Frequency and Voltage: Our unit operates at 50Hz frequency and 380V voltage, but we can customize it to meet the power requirements of your facility.
Order Process

1. Contact us and provide your specific requirements for the Rotary Degassing Unit.

2. Our engineers will work with you to design a customized solution that meets your needs.

3. After finalizing the design, we will provide you with a detailed quotation.

4. Once the order is confirmed, we will begin production and keep you updated on the progress.

5. Once the unit is ready, we will conduct a final inspection and testing to ensure its quality.

6. We will package the unit in a standard exporting package and arrange for its delivery to your location.

7. Our team will provide technical support and after-sales service to ensure the proper installation and operation of the unit.

For more information on our Rotary Degassing Unit and customization services, please contact us.



Packing and Shipping:

Packaging and Shipping of Rotary Degassing Unit

Our Rotary Degassing Unit is carefully packaged to ensure safe transportation and delivery to our customers.

Packaging:
  • The unit is first placed in a sturdy cardboard box to protect it from any external damage during transportation.
  • The unit is then wrapped in bubble wrap to provide additional cushioning and protection.
  • Any loose parts are secured and packaged separately to prevent any damage during transit.
  • The box is then sealed and labeled with the necessary shipping information.
Shipping:

We offer various shipping options to our customers to ensure timely delivery of the Rotary Degassing Unit.

  • Standard shipping: This option is offered at no additional cost and delivers the unit within 3-5 business days.
  • Expedited shipping: For customers who require the unit urgently, we offer expedited shipping at an additional cost. This option delivers the unit within 1-2 business days.
  • International shipping: We also offer international shipping for our customers outside of the United States. The delivery time may vary depending on the destination country.

Once the unit is shipped, we provide our customers with a tracking number so they can track the status of their delivery.

Thank you for choosing our Rotary Degassing Unit. We strive to provide the best packaging and shipping services to ensure your satisfaction.
