High Efficiency Rotary Inert Degassing Machine For Molten Aluminum

High Efficiency Rotary Inert Degassing Machine For Molten Aluminum
High Efficiency Rotary Inert Degassing Machine For Molten Aluminum High Efficiency Rotary Inert Degassing Machine For Molten Aluminum High Efficiency Rotary Inert Degassing Machine For Molten Aluminum High Efficiency Rotary Inert Degassing Machine For Molten Aluminum High Efficiency Rotary Inert Degassing Machine For Molten Aluminum

Large Image :  High Efficiency Rotary Inert Degassing Machine For Molten Aluminum

Product Details:
Place of Origin: Jinan, China
Brand Name: HYDEB
Certification: CE ISO9001
Model Number: HDR-2xxx
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 9998USD/set
Packaging Details: Standard exporting package
Delivery Time: 45 workdays
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 60 sets per year

High Efficiency Rotary Inert Degassing Machine For Molten Aluminum

Description
Frequency Hz: 50Hz Refined Gas Pressure MPa: Adjustable From 0.1 To 0.6
Voltage V: 380V Refinement And Degassing Time Min: 0 To 99
Refined Gas Purity %: ≥99.997 Power Supply Phases: Three-phase Four-wire
Graphite Rotor Speed R/min: 100-400 Rotor Tilt Range Mm: 0 To 32°
High Light:

Rotary Degassing Unit 100r/min

,

Rotary Inert Degassing Machine

,

Molten Aluminum Rotary Degassing Device

Product Description:

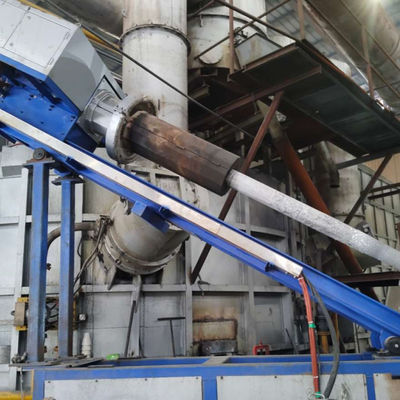

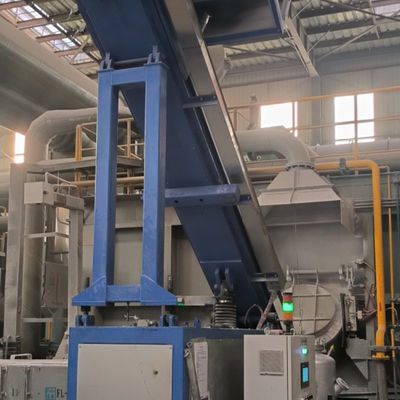

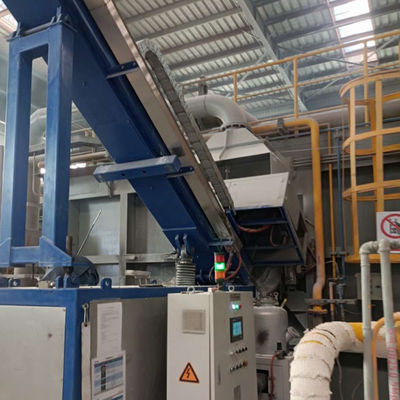

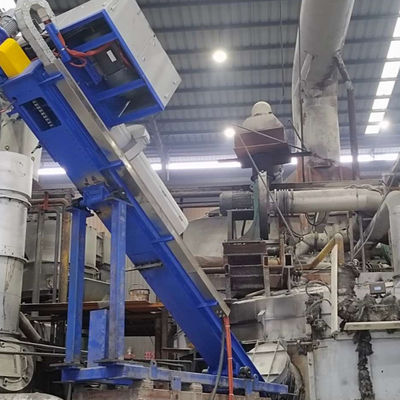

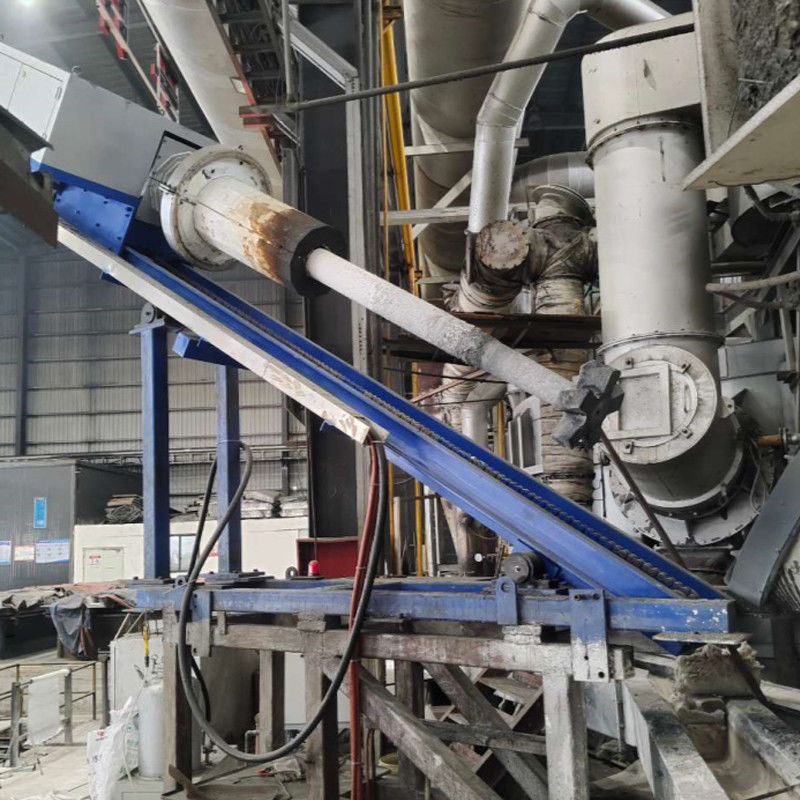

Rotary Degassing Unit is a kind of advanced molten Aluminum degassing machine and molten Aluminum purification machine, which is specially designed for smelting purification equipment. It features a rotor swing range of 30° and voltage V of 380V, plus a graphite rotor speed r/min of 100-400, making it a reliable and efficient purification device. The refined gas pressure MPa is adjustable from 0.1 to 0.6, and the refined gas flow rate m³/h is adjustable from 5.7 to 25.5. It is ideal for efficient and reliable degassing and purification of molten Aluminum.



Features:

  • Product Name: Rotary Degassing Unit
  • Frequency Hz: 50Hz
  • Power Supply Phases: Three-phase Four-wire
  • Refined Gas Flow Rate m³/h: Adjustable From 5.7 To 25.5
  • Graphite Rotor Speed r/min: 100-400
  • Voltage V: 380V
  • Aluminum degassing machine
  • Refining equipment in front of furnace
  • Smelting Purification Equipment


Technical Parameters:

Parameter Value
Graphite Rotor Speed r/min 100-400
Power Supply Phases Three-phase Four-wire
Refined Gas Flow Rate m³/h Adjustable From 5.7 To 25.5
Refined Gas Purity % ≥99.997
Frequency Hz 50Hz
Voltage V 380V
Refinement and Degassing Time min 0 To 99
Rotor Swing Range 30°
Refined Gas Pressure MPa Adjustable From 0.1 To 0.6
Total Power kW <150kW

High Efficiency Rotary Inert Degassing Machine For Molten Aluminum 0High Efficiency Rotary Inert Degassing Machine For Molten Aluminum 1

Applications:

HydeB HDR-2xxx Rotary Degassing Unit is a furnace side refining equipment, specially designed for molten Aluminum purification and degassing. It is made of superior quality materials with CE and ISO9001 Certification, and could tilt 0 to 32° with 30° swing range. The minimum order quantity is 1 set, and the price is 9998USD/set. The rotor refinement and degassing time ranges from 0 to 99 minutes. The power supply phase is three-phase four-wire, and the voltage is 380V. The package is standard exporting package, and the delivery time is 45 workdays. The payment terms includes L/C, T/T, Western Union, MoneyGram. The supply ability is up to 60 sets per year.



Customization:

HYDEB HDR-2xxx Rotary Degassing Unit

Features:

  • Brand Name: HYDEB
  • Model Number: HDR-2xxx
  • Place of Origin: Jinan, China
  • Certification: CE ISO9001
  • Minimum Order Quantity: 1 set
  • Price: 9998USD/set
  • Packaging Details: Standard exporting package
  • Delivery Time: 45 workdays
  • Payment Terms: L/C, T/T, Western Union, MoneyGram
  • Supply Ability: 60 sets per year
  • Refinement and Degassing Time min: 0 To 99
  • Rotor Tilt Range mm: 0 To 32°
  • Power Supply Phases: Three-phase Four-wire
  • Refined Gas Purity %: ≥99.997
  • Total Power kW: <150kW

The HYDEB HDR-2xxx Rotary Degassing Unit is a specialized aluminum refining and degassing machine. This aluminum in-furnace impurity removal equipment and slag removal equipment is designed to provide superior refining and degassing results. It is capable of achieving a refined gas purity of ≥99.997%, and can handle a total power of <150kW.



Support and Services:

We provide technical support and services for Rotary Degassing Unit. Our team of highly trained professionals are available around the clock to provide assistance with any issue. Our support includes telephone and email support, as well as on-site visits if necessary. We are also able to provide maintenance and repair services, to ensure that your Rotary Degassing Unit remains in optimal condition.



Packing and Shipping:

Packaging and Shipping for Rotary Degassing Unit

The Rotary Degassing Unit is supplied in two parts: a base unit and an upper unit. The upper unit is packed separately and is shipped in 1-2 boxes. Both the base and upper unit will be packed with foam and/or bubble wrap, and placed in a wooden crate for protection during shipping.

The shipping weight of the Rotary Degassing Unit is approximately 500 lbs. The dimensions of the crate are 4 ft x 4 ft x 8 ft. The Rotary Degassing Unit will be shipped via a common carrier or freight forwarder.



FAQ:

Q:What is the brand name of the Rotary Degassing Unit?
A: The brand name of the Rotary Degassing Unit is HYDEB.
Q:What is the Model Number of the Rotary Degassing Unit?
A: The Model Number of the Rotary Degassing Unit is HDR-2xxx.
Q:Where is the Rotary Degassing Unit manufactured?
A: The Rotary Degassing Unit is manufactured in Jinan, China.
Q:Does the Rotary Degassing Unit have a certification?
A: Yes, the Rotary Degassing Unit has CE ISO9001 certification.
Q:What is the minimum order quantity of the Rotary Degassing Unit?
A: The minimum order quantity of the Rotary Degassing Unit is 1 set.
