Product Details:
|
| Rotor Swing Range: | 30° | Refined Gas Flow Rate M³/h: | Adjustable From 5.7 To 25.5 |
|---|---|---|---|
| Total Power KW: | <150kW | Power Supply Phases: | Three-phase Four-wire |
| Refined Gas Purity %: | ≥99.997 | Refinement And Degassing Time Min: | 0 To 99 |
| Graphite Rotor Speed R/min: | 100-400 | Refined Gas Pressure MPa: | Adjustable From 0.1 To 0.6 |
| Highlight: | Rotary Molten Aluminum Liquid Degasser,Movable Aluminum Liquid Degasser Machine |
||

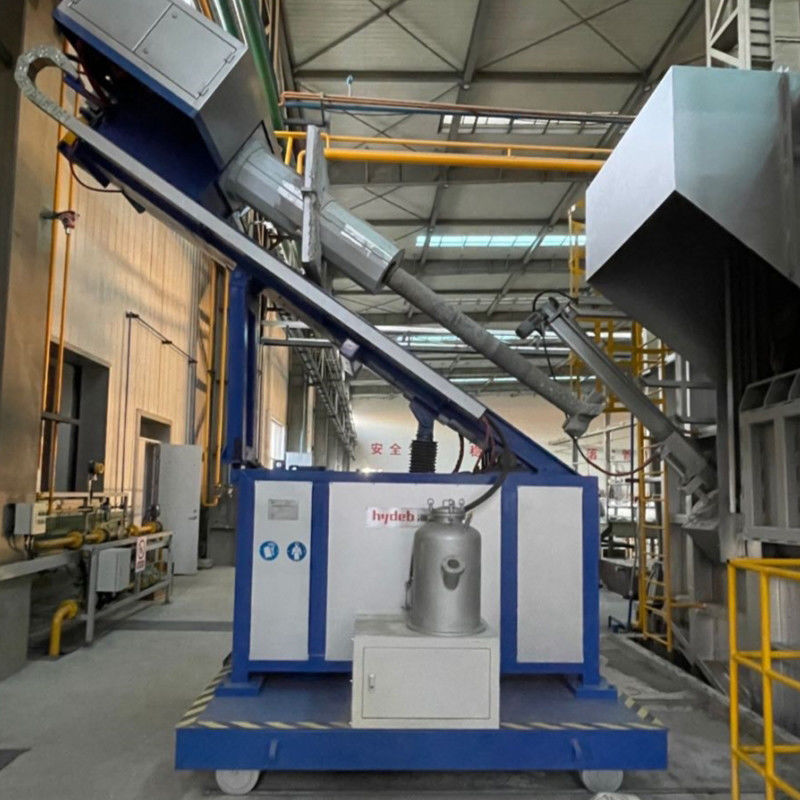

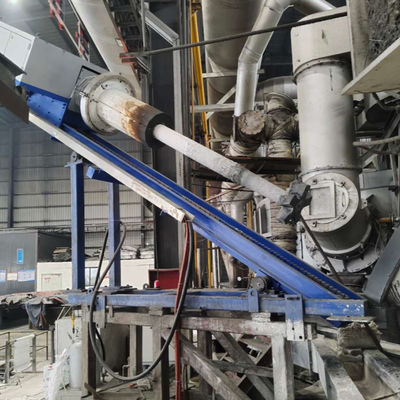

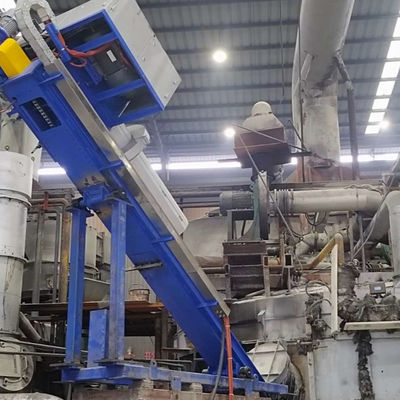

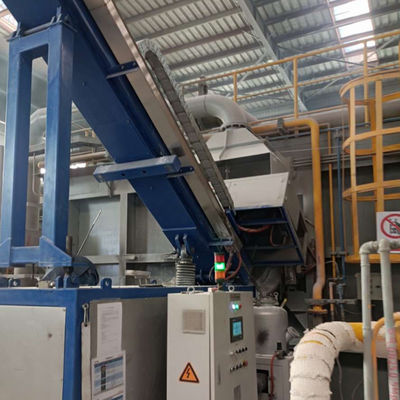

Rotary Degassing Unit is an advanced furnace side refining equipment for aluminum smelting purification, which has wide applications in aluminum alloy production. It is featured with a rotor tilt range of 0 to 32°, a frequency of 50Hz, a graphite rotor speed of 100-400 r/min and a total power of less than 150kW with three-phase four-wire power supply. This equipment can effectively and quickly remove hydrogen, oxygen and nitrogen from the molten aluminum, ensuring high-purity aluminum and improving the quality of the finished aluminum alloy products.
| Parameters | Details |
|---|---|
| Graphite Rotor Speed r/min | 100-400 |
| Frequency Hz | 50Hz |
| Voltage V | 380V |
| Refined Gas Flow Rate m³/h | Adjustable From 5.7 To 25.5 |
| Power Supply Phases | Three-phase Four-wire |
| Total Power kW | <150kW |
| Refined Gas Pressure MPa | Adjustable From 0.1 To 0.6 |
| Refined Gas Purity % | ≥99.997 |
| Rotor Tilt Range mm | 0 To 32° |
| Rotor Swing Range | 30° |
| Application | Aluminum Smelting Purification Equipment, Aluminum degassing machine , molten Aluminum purification machine |
HYDEB brand Rotary Degassing Unit (Model Number: HDR-2xxx) is an industrial equipment used for molten Aluminum degassing and purification process. It is certified by CE and ISO9001, and is developed and manufactured in Jinan, China. It can swing ±30°, and the refinement and degassing time can be adjusted from 0 to 99 minutes. It is powered by three-phase four-wire power supply, and the refined gas flow rate is adjustable from 5.7 to 25.5m³/h, with the purity of refined gas reaching above 99.997%. We are able to supply up to 60 sets of Rotary Degassing Unit per year, and the minimum order quantity is 1 set. The price for each unit is 9998USD/set, and it is shipped in standard exporting package. Delivery time is 45 workdays, and payment terms include L/C, T/T, Western Union, and MoneyGram.
HYDEB HDR-2xxx Rotary Degassing Unit is our aluminum smelting purification equipment with high performance. It is CE ISO9001 certified and produced in Jinan, China. This aluminum degassing machine is perfect for aluminum refining and degassing, and can provide a refined gas purity of ≥99.997%. It can adjust refinement and degassing time from 0 to 99 minutes, and is driven by a 50Hz voltage of 380V three-phase four-wire power supply. The minimum order quantity for this rotary degassing machine is 1 set, and the price is 9998USD/set. Standard exporting package will be used for packaging, and delivery time is 45 workdays. We accept payment terms such as L/C, T/T, Western Union, and MoneyGram, and can supply up to 60 sets per year.
Rotary Degassing Unit Technical Support and Service
At Rotary Degassing Unit, we are committed to providing you with the best technical support and service. Our knowledgeable staff is available to answer any questions you may have about our product, and we are here to provide you with the resources and expertise to ensure a successful installation.
We offer comprehensive technical support for our Rotary Degassing Unit. Our technical support team is available to answer questions about installation, operation, product performance, maintenance, troubleshooting, and more. Our technical team is available 24 hours a day, 7 days a week to provide the support you need.
We also offer comprehensive service and maintenance plans to keep your Rotary Degassing Unit operating at peak efficiency. Our service plans include regular maintenance, preventative maintenance, emergency repairs, and more. Our service technicians are highly trained and certified to ensure that your unit is operating safely and efficiently.
At Rotary Degassing Unit, we are dedicated to providing you with the best technical support and service in the industry. We are here to help you get the most out of your Rotary Degassing Unit, and ensure that you have a successful installation and operation.
Packaging and Shipping for Rotary Degassing Unit:
The rotary degassing unit will be wrapped with foam and placed in a wooden crate. The wooden crate will be securely sealed and marked with the company’s name, shipping address, and contact information. The crate will then be loaded onto a pallet for shipping.
