Molten Aluminum Furnace Front Degassing Deoxidizer Purification Equipment Q235

Molten Aluminum Furnace Front Degassing Deoxidizer Purification Equipment Q235
Molten Aluminum Furnace Front Degassing Deoxidizer Purification Equipment Q235
Molten Aluminum Furnace Front Degassing Deoxidizer Purification Equipment Q235 Molten Aluminum Furnace Front Degassing Deoxidizer Purification Equipment Q235 Molten Aluminum Furnace Front Degassing Deoxidizer Purification Equipment Q235 Molten Aluminum Furnace Front Degassing Deoxidizer Purification Equipment Q235 Molten Aluminum Furnace Front Degassing Deoxidizer Purification Equipment Q235

Large Image :  Molten Aluminum Furnace Front Degassing Deoxidizer Purification Equipment Q235

Product Details:
Place of Origin: Jinan, China
Brand Name: HYDEB
Certification: CE ISO9001
Model Number: XC220A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 13000USD/set
Packaging Details: Standard exporting package
Delivery Time: 45 workdays
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 60 sets per year

Molten Aluminum Furnace Front Degassing Deoxidizer Purification Equipment Q235

Description
Material: Q235, Motors, SiC Rotor, Hydraulic System Compressed Air: N2, Ar
Degassing Efficiency: 60% Flux Feeder: 0-500g/min
Color: Silver Gray Power: 380/50Hz/3Phases
Rotor: SiC Rotor Degassing Gas Purity: 99.996%
High Light:

Aluminum Furnace Rotary Degassing Unit

,

Q235 Rotary Degassing Unit

,

Deoxidizer Purification Equipment

Molten Aluminum Furnace Front Degassing Deoxidizer Purification Equipment Dehydrogenation Alkali Removal Injector

Equipment Features

● The bubbles are distributed in the whole melt, which increases the contact area between the refining bubbles and the metal melt, prolongs the gas contact reaction time with the harmful substances, and helps to remove the gas, slag and impurities dissolved in the metal melt out of the melt surface, the refining efficiency is high.



● The graphite rotor is made of high-purity graphite. The structure of the rotor not only breaks the bubbles, but also makes the aluminium melt and the refining gas ejected from the rotor evenly mixed, increasing the contact area and time between the bubbles and the aluminium alloy liquid, and improving the removal rate. Air purification effect.



● The combined purification process of "Gas + Flux" reduces the consumption of gas and refining agent, reduces the emission of flue gas, and improves the safety and environmental protection of the operating environment.



4. EQUIPMENT COMPOSITION



Name Qty Note
Host Part
  • Rack (Column, Hanger Arm)
1 set
  • Rotor Lifting System
1 set
  • Rotor Rotation System
1 set
Control System
  • Nitrogen/Argon Gas Pneumatic

System

1 set
  • Control System
1 set
  • Control Cabinet
1pcs B*L*H=550*300*1200mm
Other Parts
  • Graphite Rotor
1 set
  • Graphite Shaft
1 set
  • Graphite Baffle
1 set
  • Spindle Heat Shield
1 set






5. TECHNICAL DATA

  • Specification
Item Data Mark
Refining Gas Purity % ≥99.996 High Purity Nitrogen or Argon
Moisture ppm ≤ 3
O2 ppm ≤ 5
Pressure MPa 0.1-0.6 Adjustable
Flow L/min 15~30 Adjustable
Power Phrase 3
Voltage V 380±10%
Frequency Hz 50
Total Power kW < 3
Motor for Rotary Shaft Rotating Power kW 1.1 For driving graphite rotation shaft to rotate
Motor for Hanger Arm Lifting up & down Power kW 1.1 For Hanger Arm Lifting up & down
Graphite Rotor Speed r/min 100-600 VVVF adjustable
Refining Degassing Time min 0~99 Time Adjustable
Molten Aluminum Temperature ℃ 640-850 Temperature of Refined Aluminum
Graphite Rotor Size Dia. Φ mm 180
Length mm 52
Graphite Baffle Size Length mm 600
Width mm 90
Thickness mm 50
Number of Graphite Baffle 1
Weight kg About 600 According to actual production

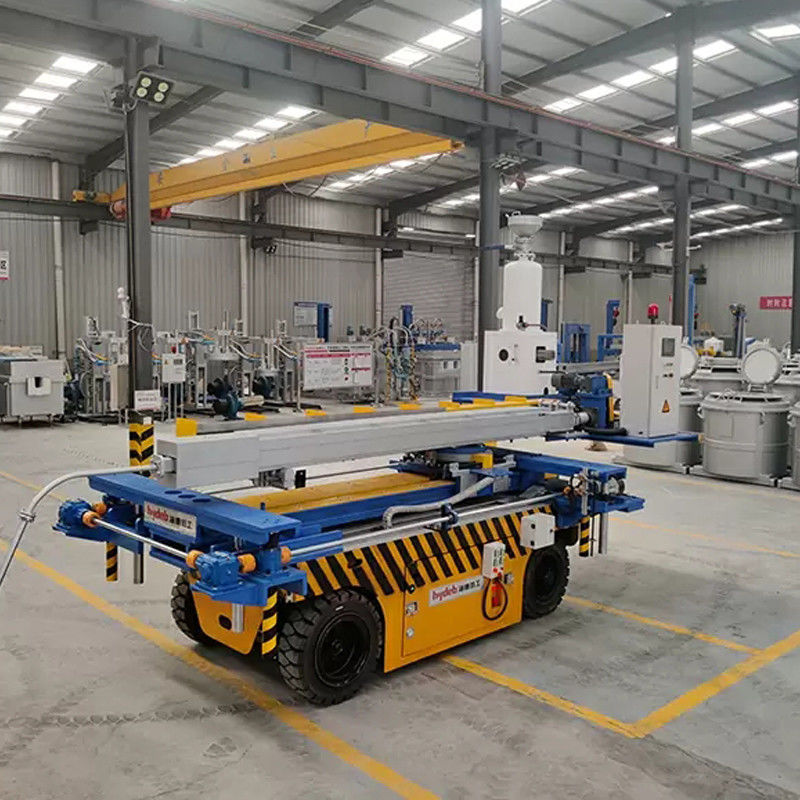

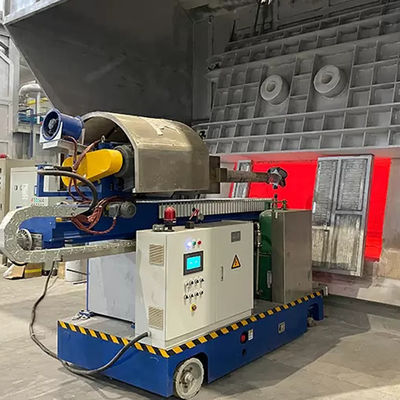

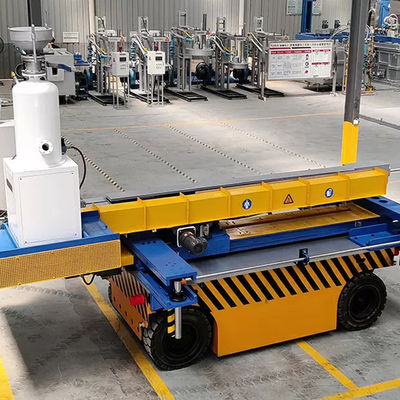

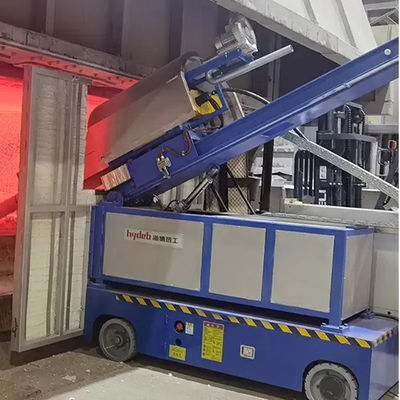

Equipment Pictures
Molten Aluminum Furnace Front Degassing Deoxidizer Purification Equipment Q235 0Molten Aluminum Furnace Front Degassing Deoxidizer Purification Equipment Q235 1Molten Aluminum Furnace Front Degassing Deoxidizer Purification Equipment Q235 2Molten Aluminum Furnace Front Degassing Deoxidizer Purification Equipment Q235 3
