80L Aluminum Foundry Flux Injection Unit For Purity Molten Aluminum

Certification
China Jinan Hydeb Thermal Tech Co., Ltd. certification
China Jinan Hydeb Thermal Tech Co., Ltd. certification
I'm Online Chat Now

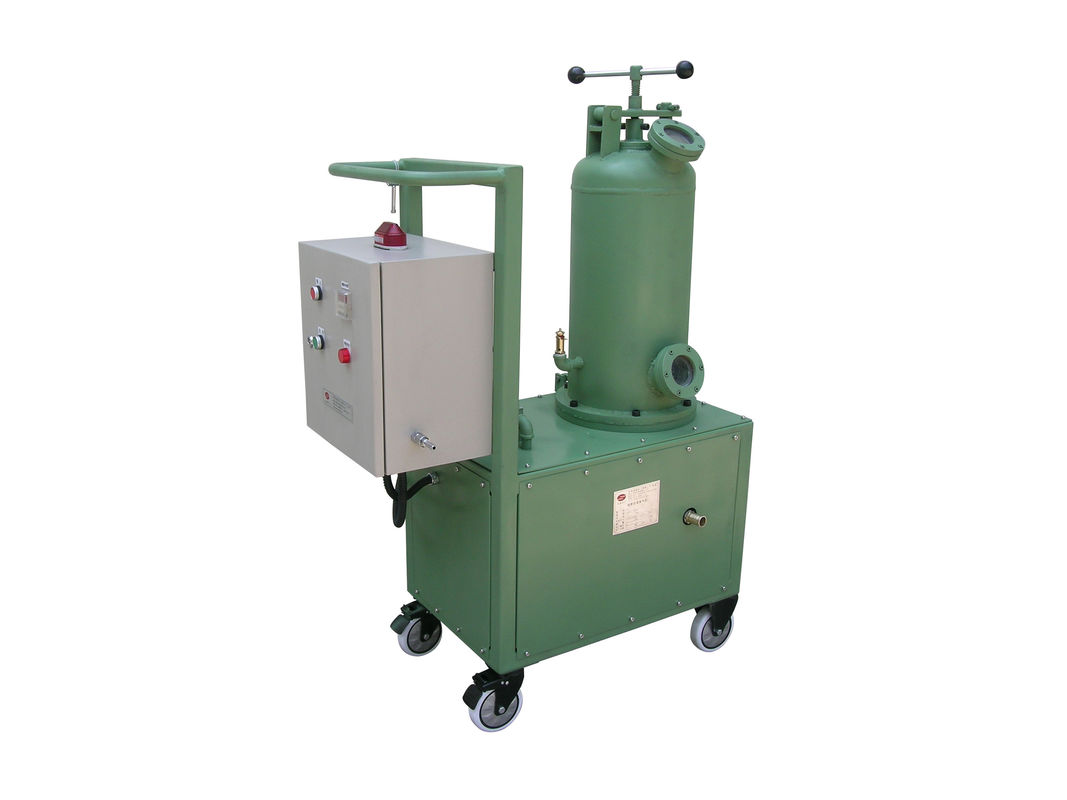

80L Aluminum Foundry Flux Injection Unit For Purity Molten Aluminum

80L Aluminum Foundry Flux Injection Unit For Purity Molten Aluminum
80L Aluminum Foundry Flux Injection Unit For Purity Molten Aluminum
80L Aluminum Foundry Flux Injection Unit For Purity Molten Aluminum 80L Aluminum Foundry Flux Injection Unit For Purity Molten Aluminum 80L Aluminum Foundry Flux Injection Unit For Purity Molten Aluminum

Large Image :  80L Aluminum Foundry Flux Injection Unit For Purity Molten Aluminum

Product Details:
Place of Origin: China
Brand Name: Hydeb
Certification: CE,ISO9001,ISO14001,IS45001,High-tech Enterprise,Intellectual Property,Patents
Model Number: FFD80
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $ 5000-$10000/set
Packaging Details: Wooden Case or Pallet
Delivery Time: 8 working days
Payment Terms: T/T
Supply Ability: 100 sets per year

80L Aluminum Foundry Flux Injection Unit For Purity Molten Aluminum

Description
Product Key Name: 80L Aluminum Foundry Flux Injection Unit For Purity Molten Aluminum Color: Blue
Tank Capacity: 80 L Flux Agent Type: Powder <5mm
Fluxing Speed: Adjustable MOQ: 1 Set
High Light:

Foundry Flux Injection Unit

,

80L Flux Injection Unit

,

Molten Aluminum Flux Injection Unit

80L Aluminum Foundry Flux Injection Unit for Purity Molten Aluminum​



Injection Fluxing Refining Device in Aluminum Alloy Die Casting Melting Furnace



• Addition of controlled and accurate amount of Flux
• Fluxing and degassing can be simultaneously carried out
• Easy to operate, maintain and extremely portable
• Nitrogen or Argon cylinder can be connected for degasing
• Flux can reach the bottom of the melt with the help of steel boom Application Instructions for use : As per attached Datasheet



Hydeb Company Introduce



-- It was established in January 2003, and there are 56 employees, last year the sales sum is more than 50 million RMB in 2021

-- Hydeb focus on one industry -- "aluminum casting" and has a complete product line of aluminum casting equipment, all products are independent research and development, manufacturing

-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid

hydrogen measurement, until aluminum solution aging treatment equipment



2. Fluxing Injector Application



This equipment is used for degassing and deslagging of the molten aluminum in static furnace.





Injection Fluxing Refining Device in Aluminum Alloy Die Casting Melting Furnace



• Addition of controlled and accurate amount of Flux
• Fluxing and degassing can be simultaneously carried out
• Easy to operate, maintain and extremely portable
• Nitrogen or Argon cylinder can be connected for degasing
• Flux can reach the bottom of the melt with the help of steel boom Application Instructions for use : As per attached Datasheet



3.  Injection Refining Equipment Merits



•  Good refining effects. The equipment has the advantages of both gas refining and flux-refining.

•  Low consumption of refining agent, and uniform feeding.

•  Low metal loss. After proper flux-refining, there is less dross on the melt surface and the dross is loose.

•  The metal is rarely encased and little metal is taken out during slag removal.





4. Injection Refining Equipment Technical Description



Barrel capacity 30L
Refining gas type high-purity nitrogen or argon
Refining gas pressure 0.1-0.4MPa
Maximum refining gas flow 300NL/min
Flux flow 0-3000g/min, adjustable
Flux size 10-70 meshes





5. Injection Refining Equipment Models



Type FFD15 FFD30 FFD50




6. Reference Show

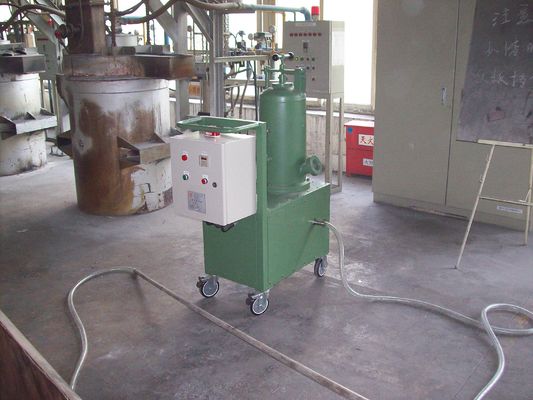

80L Aluminum Foundry Flux Injection Unit For Purity Molten Aluminum 0



7. About Us



80L Aluminum Foundry Flux Injection Unit For Purity Molten Aluminum 1



8. RFQ



Q1: I know nothing about this machine, what kind of machine I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to do
by using this machine, then let us give you perfect solutions and suggestions.


Q2: When I get this machine, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk
by Telephone/ Skype / Whatsapp / Weichat/ E-mail.


Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
