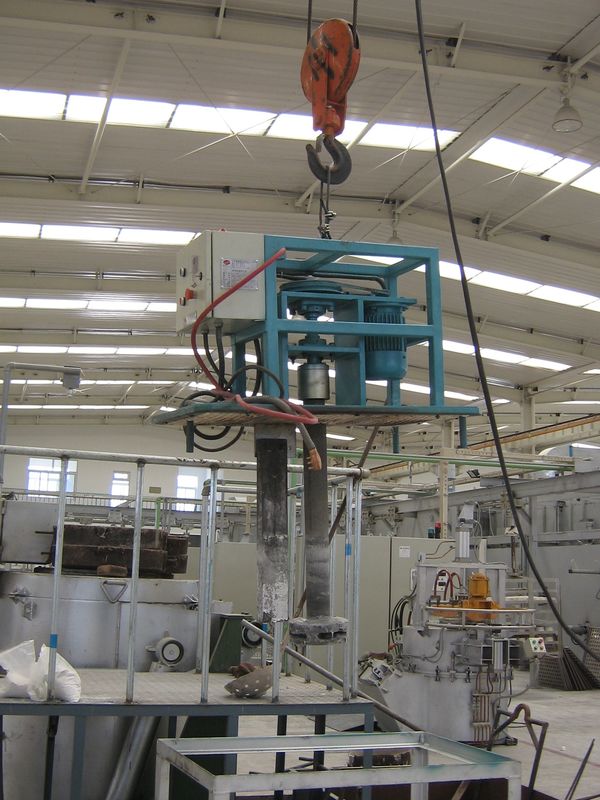

Suspending Rotary Degassing Unit Aluminum 500 Rpm Refining Process

Suspending Rotary Degassing Unit Aluminum 500 Rpm Refining Process
Suspending Rotary Degassing Unit Aluminum 500 Rpm Refining Process
Suspending Rotary Degassing Unit Aluminum 500 Rpm Refining Process Suspending Rotary Degassing Unit Aluminum 500 Rpm Refining Process Suspending Rotary Degassing Unit Aluminum 500 Rpm Refining Process

Large Image :  Suspending Rotary Degassing Unit Aluminum 500 Rpm Refining Process

Product Details:
Place of Origin: China
Brand Name: Hydeb
Certification: CE,ISO9001,ISO14001,IS45001,High-tech Enterprise,Intellectual Property,Patents
Model Number: XCP100-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $ 9900-$20000/set
Packaging Details: Wooden Case or Pallet
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 50 sets per year

Suspending Rotary Degassing Unit Aluminum 500 Rpm Refining Process

Description
Key Name: 500 Rpm Suspending Rotary Degassing Aluminum Refining Process 99.996 Percent Argon Lifting: By Crane
Color: Blue Or Customized Rotor Rotary Speed: 500 Rpm
Granularity: ≤5 Mm Warranty Time: 1 Year
High Light:

Suspending Rotary Degassing Unit

,

Rotary Degassing Unit 500 Rpm

,

Crane Lifting Rotary Degassing Unit

500 Rpm Suspending Rotary Degassing Aluminum Refining Process 99.996 Percent Argon



Crane Lifted Suspending Siliver Rotary Degassing Unit For Dealing With Aluminum Liquid



Suspending Type with Graphite Rotor and Shafts Rotary Degassing and Fluxing Equipment by Crane



1.  Rotary Degassing Unit Working Area



•  Aluminium foundries

•  Aluminium holding and transfer vessels (crucibles, furnaces, ladles)



2. Rotary Degassing Unit Merits



•   Continuous operation

•   Accurate flux injection under the metal level

•   Programmable Logic Controller (PLC) monitors and controls operation

•   Variable speed electric motor

•   Auto-timer and flashing light notify the operator when the cycle is done

•   Automatic mode settings provide repeatable results and efficiency

•   Efficiently uses flux, nitrogen or argon

•   Process gas flow meter

•   Self-checking diagnostics

•   Password protected cycle parameters

•   Degassing system can rotate around the support column (optional)

•   Cooling air blower prevents overheating



3. Rotary Degassing Unit Mainly Technical Data



Item Data Mark
Refining Gas Purity % ≥99.996 High Purity Nitrogen or Argon
Moisture ppm ≤ 3
O2 ppm ≤ 5
Pressure MPa 0.1-0.6 Adjustable
Flow L/min 15~30 Adjustable
Refining Flux Granularity mm ≤5
Powder Spraying g/min 0~350 Adjustable
Power Phrase 3
Voltage V 380±10%
Frequency Hz 50
Total Power kW < 3
Motor for Rotary Shaft Rotating Power kW 1.1 For driving graphite rotation shaft to rotate
Motor for Hanger Arm Lifting up & down Power kW 1.1 For Hanger Arm Lifting up & down
Motor for Arm Rotation Power kW 0.4

For driving the hanger arm

rotation

Motor for Filling Fluxing Device Power kW 0.12 For filling refining flux
Graphite Rotor Speed r/min 0-500 VVVF adjustable
Refining Degassing Time min 0~99 Time Adjustable
Graphite Shaft Size Dia. Φ mm According the design
Length mm According the design
Graphite Rotor Size Dia. Φ mm

According the design









Length mm
Graphite Baffle Size Length mm
Width mm
Thickness mm
Number of Graphite Baffle 1
Weight kg About 600 According to actual production











































































4. Models



Structure Stationary type Mobile Type Suspending Type Suspending Type
Type XCP230-1 XC210-1 XCP100-1

XCP100A



5. Reference Pictures



Suspending Rotary Degassing Unit Aluminum 500 Rpm Refining Process 0



6. ​Company Introduce



-- Established in January 2003, and now has 56 employees

-- Sales of 50 million RMB in 2021

-- Focus on one industry -- "aluminum casting"

-- Has a complete product line of aluminum casting equipment, all products are independent research

and development, manufacturing

-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid

hydrogen measurement, until aluminum solution aging treatment equipment



7. Our Strengths



Suspending Rotary Degassing Unit Aluminum 500 Rpm Refining Process 1



8. FRQ



Q1: I know nothing about this degassing unit, what kind of degassing unit I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to do
by using this machine, then let us give you perfect solutions and suggestions.


Q2: When I get this degassing unit, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk by
Telephone/ Skype / Whatsapp / Weichat/ E-mail.


Q3: If some problems happen to this degassing unit during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.



9.  Hydeb Company Profile



Jinan Hydeb Thermal Tech Co., Ltd was established in January 2003, and now has 56 employees.
​Last year the sales of 50 million RMB in 2020.

Hydeb is focus on one industry -- "aluminum casting"



Hydeb has a complete product line of aluminum casting equipment, all products are independent research

and development, manufacturing

-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid

hydrogen measurement, until aluminum solution aging treatment equipment
