Product Details:
|
| Name: | U Type Black Silicon Carbon Heating Elements For Die Casting Lines | Silicon Carbon Length: | 1150 Mm |
|---|---|---|---|
| Colour: | Black | Raw Material: | Silicon Carbon |
| Application: | Heating Molten Aluminum | Appearance: | U Type |
| High Light: | U Type Die Casting Spare Parts,1150mm Die Casting Spare Parts,Silicon carbon fiber heating element 1400C |
||

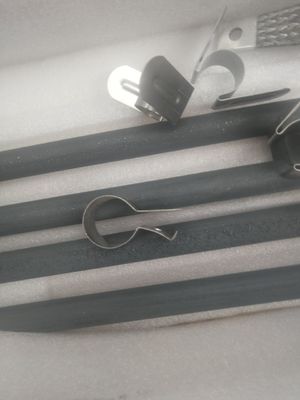

U Type Black Silicon Carbon Heating Elements For Die Casting Lines
Silicon Carbon SiC Heating Elements for Heating Molten Aluminum
1. Sic Heating Elements Function

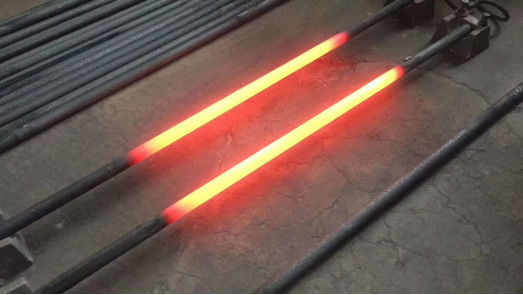

SiC heating element is widely used in high temperatue furnaces, It can be used in air, vacuum and other protection gase enviroments
2. Sic Heating Elements Specifications
--- Choose the shape you need, like Rod, U, W, Single Spiral etc.
--- Out Diameter (OD)
--- Heating Zone Lengh (HZ)
--- Overall Length (OL)
--- Resistance you need.
--- Order Sample: Rod type, OD30mm, HZ300mm, OL800mm, Resistance 0.4ohms.
4. SiC heating Elements Standard Sizes
SiC elements can be made according to your need!
| Diameter |
Heating zone Length |
Cold zone Length |
Overall length | Range of resistance |
| 14mm | 100-500mm | 150-350mm | 400-1200mm | 0.7-5.6 ohms |
| 16mm | 200-600mm | 150-350mm | 500-1600mm | 0.7-4.4 ohms |
| 18mm | 200-800mm | 150-400mm | 500-1600mm | 0.7-5.8 ohms |
| 20mm | 200-800mm | 200-600mm | 600-2000mm | 0.6-6.0 ohms |
| 25mm | 200-1200mm | 250-700mm | 700-2600mm | 0.4-5.0 ohms |
| 30mm | 300-2000mm | 250-800mm | 800-3600mm | 0.4-4.0 ohms |
| 35mm | 400-2000mm | 250-800mm | 900-3600mm | 0.5-3.6 ohms |
| 40mm | 500-2700mm | 250-800mm | 1000-4300mm | 0.5-3.4 ohms |
| 45mm | 500-3000mm | 250-750mm | 1000-4500mm | 0.3-3.0 ohms |
| 50mm | 600-2500mm | 300-750mm | 1200-4000mm | 0.3-2.5 ohms |
| 54mm | 600-2500mm | 300-750mm | 1200-4000mm | 0.3-3.0 ohms |
5. Company Profile
Founded in January 2003, the Jinan HYDEB Thermal Tech Co., Ltd. is located in Jinan High-tech Development Zone.
The Company mainly produces molten aluminum refining and degassing units, molten aluminum transfer ladles and
holding crucible furnaces, which are sold to well-known corporations in the industry at home and abroad, meeting their
high requirements for product safety and advancement.
6. FRQ
Q1: I know nothing about this machine, what kind of machine I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to do
by using this machine, then let us give you perfect solutions and suggestions.
Q2: When I get this machine, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk by
Telephone/ Skype / Whatsapp / Weichat/ E-mail.
Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
