28 MM Black Sic Thermocouple Ceramic Protection Tubes Ceramic Tube Shock Resistance

Certification
China Jinan Hydeb Thermal Tech Co., Ltd. certification
China Jinan Hydeb Thermal Tech Co., Ltd. certification
I'm Online Chat Now

28 MM Black Sic Thermocouple Ceramic Protection Tubes Ceramic Tube Shock Resistance

28 MM Black Sic Thermocouple Ceramic Protection Tubes Ceramic Tube Shock Resistance
28 MM Black Sic Thermocouple Ceramic Protection Tubes Ceramic Tube Shock Resistance 28 MM Black Sic Thermocouple Ceramic Protection Tubes Ceramic Tube Shock Resistance

Large Image :  28 MM Black Sic Thermocouple Ceramic Protection Tubes Ceramic Tube Shock Resistance

Product Details:
Place of Origin: China
Brand Name: Hydeb
Certification: ISO9001,ISO14001,IS45001,High-tech Enterprise,Intellectual Property,Patents
Model Number: 28/600
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $ 10-$10000/ pcs
Packaging Details: Wooden Box
Delivery Time: 8 working days
Payment Terms: T/T
Supply Ability: 10000 sets per year

28 MM Black Sic Thermocouple Ceramic Protection Tubes Ceramic Tube Shock Resistance

Description
Name: Black SiC Silicon Carbide Thermocouple Protection Tube For Die Casting Lines Material: Silicon Carbon
Color: Black Diameter: 28 Mm
Application: Protect Thermalcouple Inside Molten Aluminum Warranty Time: 1 Month
High Light:

28 mm ceramic thermocouple protection tubes

,

Black sic ceramic thermocouple protection tubes

,

tube skin thermocouple high shock resistance

Black SiC Silicon Carbide Thermocouple Protection Tube For Die Casting Lines



SiC Protector Tube For Thermalcouple Inside Molten Aluminum Casting Line



1. Product Description



Silicon Carbide Thermalcouple Protection Tube as a new type refractory material,is used widely.
The applying temperature is 1400 C.It has better thermal stability,thermal shock,which is better than
plain refractory material and recrystallized SiC.It also has antioxidation,high corrosion resistant,
wear-resistantance,high bending strength.It can resist corrosion and scouring,be no polluted and fast
heat conduction in molten metal such as AL,Pb,Zn,Cu ect.



2. Features and Advantages

--- High temperature tolerance

--- High thermal conductivity and shock resistance

--- High mechanical strength and abrasion resistance

--- Excellent energy efficiency and corrosion resistance



3.  Application

The series of products are widely used for measuring temperature in the fields of ceramic, industrial furnaces,
metallurgy, chemical industry, etc.



4. Silicon Carbide Thermalcouple Protection Tube Specification



Item Data
SiC content >75%
Si3N4 content >22%
Fe2O3 <0.5%
Bulk density 2.6-2.7g/cm3
Apparent porosity <16%
Cold Crushing strength 150Mpa
rupture strength under normal temperature >45Mpa
rupture strength at 1200°C >50Mpa
Thermal conductivity at 800°C >18w/m.k
Thermal conductivity at 1200°C >14w/m.k
Thermal expansion coefficient <4.7x10-6/°C

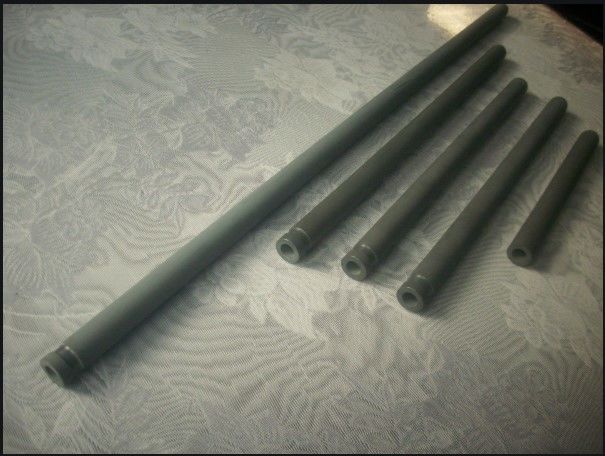

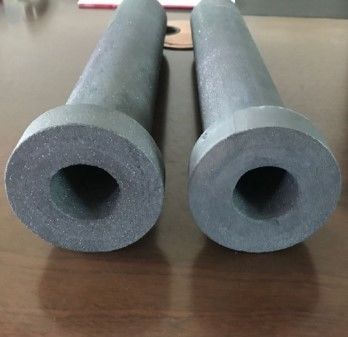

5. Pictures of Silicon Carbide Thermalcouple Protection Tube



Factory Price Black  Sic Silicon Carbide  Thermocouple Protection Tube



6. Package



Package of silicon carbide thermalcouple protection tube: By cartons or wooden boxes or according to customer's requirement.
We also received OEM service; the package can be designed according to your requirements.

Shipping of silicon carbide thermalcouple protection tube: By vessel or by train from any Chinese port, Samples can be delivered
by International express.



7.  Company Introduce



-- Established in January 2003, and now has 56 employees

-- Sales of 50 million RMB in 2021

-- Focus on one industry -- "aluminum casting"

-- Has a complete product line of aluminum casting equipment, all products are independent research

and development, manufacturing

-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid

hydrogen measurement, until aluminum solution aging treatment equipment





8. FRQ



Q1: I know nothing about this machine, what kind of machine I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to do by using this machine, then let us give you perfect solutions and suggestions.


Q2: When I get this machine, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk by Telephone/ Skype / Whatsapp / Weichat/ E-mail.


Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts). While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
