Product Details:
|
| Product Key Words: | Fixed Floor Type Rotary Degassing Aluminum Refining Process Machine 30 L/Min OEM | Rotor Material: | Graphite |
|---|---|---|---|
| Warranty Time: | 1 Year | Colour: | Blue |
| MOQ: | 1 Set | Refining Gas: | High Purity Nitrogen Or Argon |
| Granularity: | ≤5 Mm | Degassing Time: | 0～99 Adjustable |
| High Light: | 5mm Granularity Rotary Degassing Unit,Rotary Degassing Unit fixed floor,3 kw aluminium refining process |
||
Fixed Floor Type Rotary Degassing Aluminum Refining Process Machine 30 L/Min OEM
• Automatic mode settings provide repeatable results and efficiency
• Efficiently uses flux, nitrogen or argon
• Process gas flow meter
• Self-checking diagnostics
• Password protected cycle parameters
• Degassing system can rotate around the support column (optional)
• Cooling air blower prevents overheating

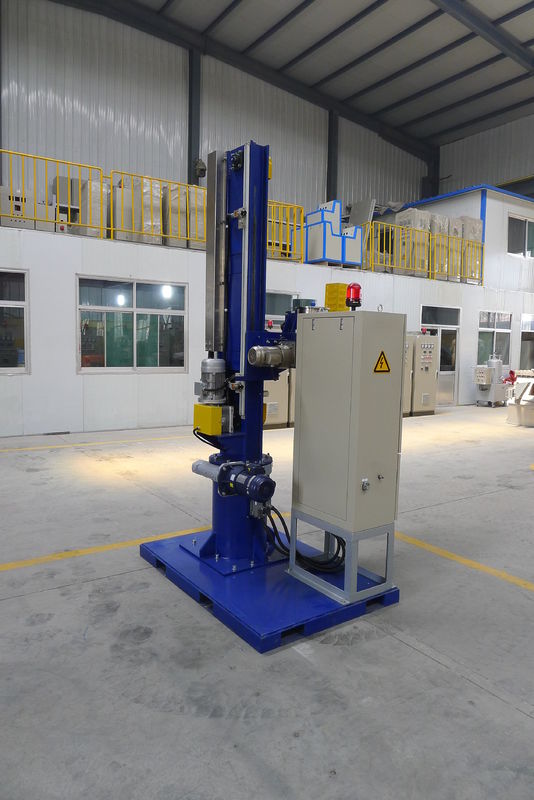

Fixed on the Floor with Graphite Rotor and Shafts Rotary Degassing and Fluxing Equipment
1. Rotary Degassing Aluminum Technical Data
| Item | Data | Mark | |
| Refining Gas | Purity % | ≥99.996 | High Purity Nitrogen or Argon |
| Moisture ppm | ≤ 3 | ||
| O2 ppm | ≤ 5 | ||
| Pressure MPa | 0.1-0.6 Adjustable | ||
| Flow L/min | 15～30 Adjustable | ||
| Refining Flux | Granularity mm | ≤5 | |
| Powder Spraying g/min | 0～350 Adjustable | ||
| Power | Phrase | 3 | |
| Voltage V | 380±10% | ||
| Frequency Hz | 50 | ||
| Total Power kW | < 3 | ||
| Motor for Rotary Shaft Rotating | Power kW | 1.1 | For driving graphite rotation shaft to rotate |
| Motor for Hanger Arm Lifting up & down | Power kW | 1.1 | For Hanger Arm Lifting up & down |
| Motor for Arm Rotation | Power kW | 0.4 | For driving the hanger arm |
| rotation | |||
| Motor for Filling Fluxing Device | Power kW | 0.12 | For filling refining flux |
| Graphite Rotor Speed r/min | 0-600 | VVVF adjustable | |
| Refining Degassing Time min | 0～99 | Time Adjustable | |
| Graphite Shaft Size | Dia. Φ mm | 80 | |
| Length mm | According the design | ||
| Graphite Rotor Size | Dia. Φ mm | According the design | |
| Length mm | |||
| Graphite Baffle Size | Length mm | ||
| Width mm | |||
| Thickness mm | |||
| Number of Graphite Baffle | 1 | ||
| Weight kg | About 600 | According to actual production | |
2. Hydeb Our Clients
3. Hydeb Company Introduce
Jinan Hydeb Thermal Tech Co., Ltd was established in January 2003, and now has 56 employees.
Last year the sales of 50 million RMB in 2020.
Hydeb is focus on one industry -- "aluminum casting"
Hydeb has a complete product line of aluminum casting equipment, all products are independent research
and development, manufacturing
-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid
hydrogen measurement, until aluminum solution aging treatment equipment
4. Rotary Degassing Aluminum Application
• Aluminium foundries
• Aluminium holding and transfer vessels (crucibles, furnaces, ladles)
5. Benefits
• Continuous operation
• Accurate flux injection under the metal level
• Programmable Logic Controller (PLC) monitors and controls operation
• Variable speed electric motor
• Auto-timer and flashing light notify the operator when the cycle is done
6. Models
| Structure | Stationary type | Mobile Type | Suspending Type | Stationary type |
| Type | XCP230-1 | XC210-1 | XCP100-1 |
XCP230A |

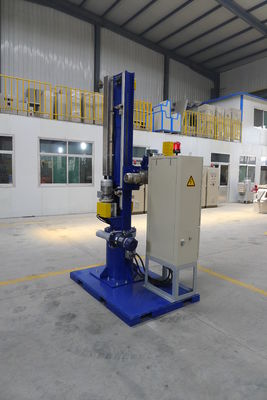

7. Reference Pictures
8. Our Strengths
