Product Details:
|
| Product Name: | XCP230-1 Fixed Type Blue Rotary Degassing And Refining Unit For Purity Molten Aluminum | Rotor Material: | Graphite |
|---|---|---|---|
| Warranty Time: | 1 Year | Color: | Blue |
| Rotor Speed: | 600 RPM Adjsutable | Refining Gas: | High Purity Nitrogen |
| Highlight: | Rotary Degassing Unit High Purity N2,0.6MPA Rotary Degassing Unit,vacuum degassing of steel 30L/min |
||
XCP230-1 Fixed Type Blue Rotary Degassing And Refining Unit For Purity Molten Aluminum
Graphite Rotor and Shafts Fixed Rotary Degassing and Fluxing Equipment for Dealing With Molten Aluminum
1. Refining Unit Application
• Aluminium foundries
• Aluminium holding and transfer vessels (crucibles, furnaces, ladles)
2. Refining Unit Degasser Benefits
• Continuous operation
• Accurate flux injection under the metal level
• Programmable Logic Controller (PLC) monitors and controls operation
• Variable speed electric motor
• Auto-timer and flashing light notify the operator when the cycle is done
• Automatic mode settings provide repeatable results and efficiency
• Efficiently uses flux, nitrogen or argon
• Process gas flow meter
• Self-checking diagnostics
• Password protected cycle parameters
• Degassing system can rotate around the support column (optional)
• Cooling air blower prevents overheating
3. Refining Unit Technical Data
| Item | Data | Mark | |
| Refining Gas | Purity % | ≥99.996 | High Purity Nitrogen or Argon |
| Moisture ppm | ≤ 3 | ||
| O2 ppm | ≤ 5 | ||
| Pressure MPa | 0.1-0.6 Adjustable | ||
| Flow L/min | 15～30 Adjustable | ||
| Refining Flux | Granularity mm | ≤5 | |
| Powder Spraying g/min | 0～350 Adjustable | ||
| Power | Phrase | 3 | |
| Voltage V | 380±10% | ||
| Frequency Hz | 50 | ||
| Total Power kW | < 3 | ||
| Motor for Rotary Shaft Rotating | Power kW | 1.1 | For driving graphite rotation shaft to rotate |
| Motor for Hanger Arm Lifting up & down | Power kW | 1.1 | For Hanger Arm Lifting up & down |
| Motor for Arm Rotation | Power kW | 0.4 |
For driving the hanger arm rotation |
| Motor for Filling Fluxing Device | Power kW | 0.12 | For filling refining flux |
| Graphite Rotor Speed r/min | 0-600 | VVVF adjustable | |
| Refining Degassing Time min | 0～99 | Time Adjustable | |
| Graphite Shaft Size | Dia. Φ mm | 80 | |
| Length mm | According the design | ||
| Graphite Rotor Size | Dia. Φ mm |
According the design
|
|
| Length mm | |||
| Graphite Baffle Size | Length mm | ||
| Width mm | |||
| Thickness mm | |||
| Number of Graphite Baffle | 1 | ||
| Weight kg | About 600 | According to actual production | |
4. FRQ
Q1: I know nothing about this refining unit, what kind of refining unit I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to do by using
this machine, then let us give you perfect solutions and suggestions.
Q2: When I get this refining unit, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk by Telephone
/ Skype / Whatsapp / Weichat/ E-mail.
Q3: If some problems happen to this refining unit during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts). While we also
supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
5. Refining Unit Models
| Structure | Stationary type | Mobile Type | Suspending Type | Stationary | Mobile | Suspending |
| Type | XCP230-1 | XC210-1 | XCP100-1 |
XCP230A | XCP210A | XCP100A |

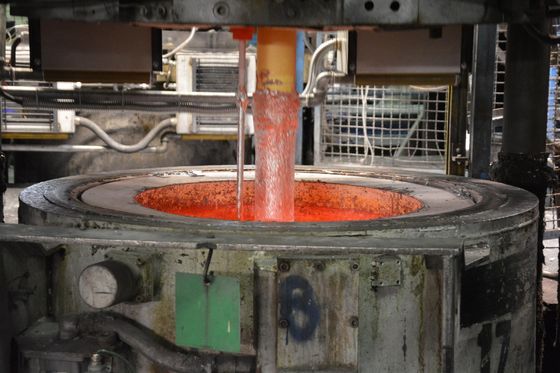

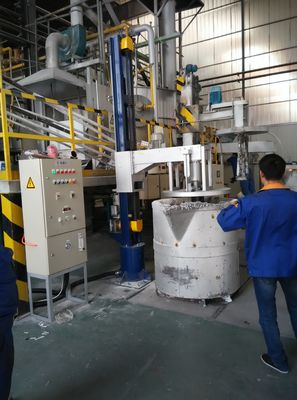

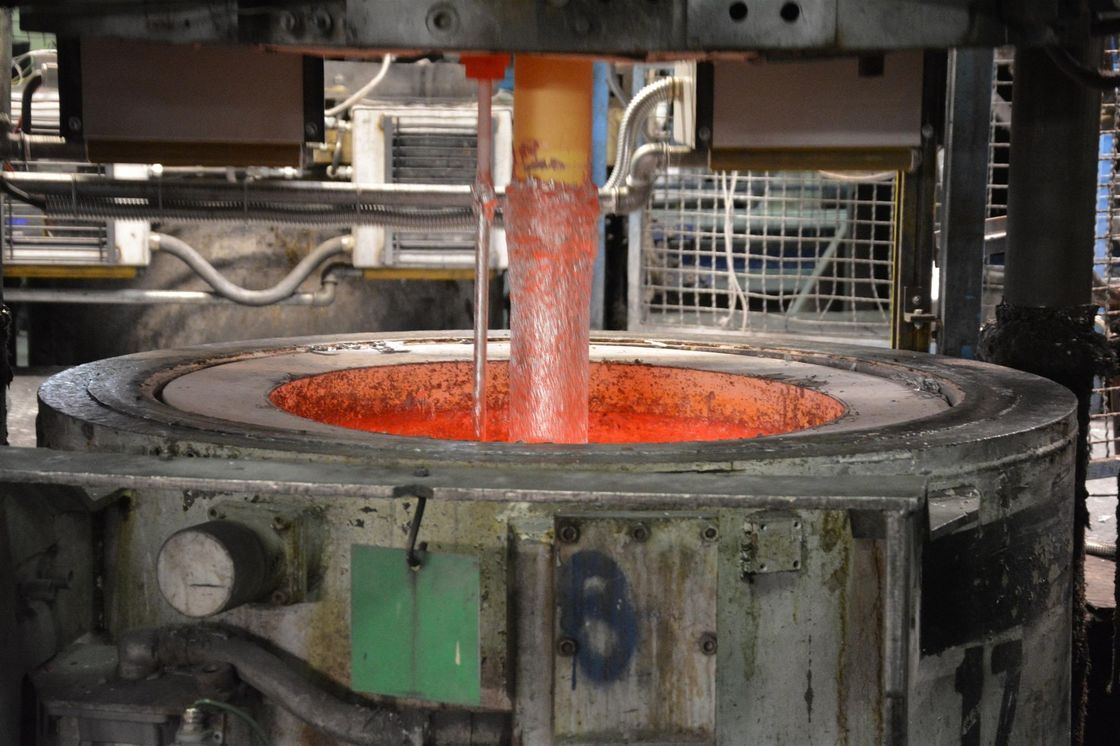

6. Reference Pictures
7. Company Profile
-- Established in January 2003, and now has 56 employees
-- Sales of 50 million RMB in 2021
-- Focus on one industry -- "aluminum casting"
-- Has a complete product line of aluminum casting equipment, all products are independent research
and development, manufacturing
-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid
hydrogen measurement, until aluminum solution aging treatment equipment
