Product Details:
|
| Product Name: | Double Spiral Type Black SIC Silicon Carbon Heating Elements For Die Casting Lines | Diameter: | 30 Mm |
|---|---|---|---|
| Color: | Black | Raw Material: | Silicon Carbon |
| Application: | Heating Molten Aluminum | Size: | Customized |
| High Light: | 30mm Silicon element Die Casting Spare Parts,1400 Deg Die Casting Spare Parts,Double Spiral carbon element heater ISO14001 |
||

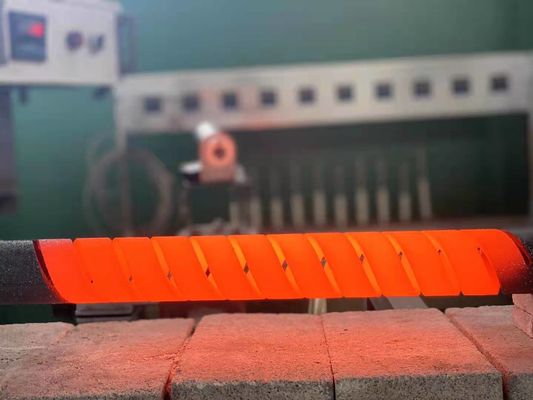

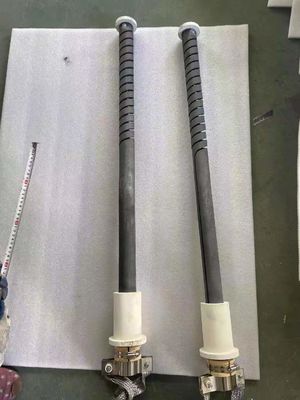

Double Spiral Type Black SIC Silicon Carbon Heating Elements For Die Casting Lines
Silicon Carbon SiC Heating Elements for Heating Molten Aluminum
1. Company Profile
-- Established in January 2003, and now has 56 employees
-- Sales of 50 million RMB in 2021
-- Focus on one industry -- "aluminum casting"
-- Has a complete product line of aluminum casting equipment, all products are independent research
and development, manufacturing
-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid
hydrogen measurement, until aluminum solution aging treatment equipment
2. Specifications
--- Choose the shape you need, like Rod, U, W, Single Spiral etc.
--- Out Diameter (OD)
--- Heating Zone Lengh (HZ)
--- Overall Length (OL)
--- Resistance you need.
--- Order Sample: Rod type, OD30mm, HZ300mm, OL800mm, Resistance 0.4ohms.
4. SiC heating elements Standard Sizes
SiC elements can be made according to your need!
| Diameter |
Heating zone Length |
Cold zone Length |
Overall length | Range of resistance |
| 14mm | 100-500mm | 150-350mm | 400-1200mm | 0.7-5.6 ohms |
| 16mm | 200-600mm | 150-350mm | 500-1600mm | 0.7-4.4 ohms |
| 18mm | 200-800mm | 150-400mm | 500-1600mm | 0.7-5.8 ohms |
| 20mm | 200-800mm | 200-600mm | 600-2000mm | 0.6-6.0 ohms |
| 25mm | 200-1200mm | 250-700mm | 700-2600mm | 0.4-5.0 ohms |
| 30mm | 300-2000mm | 250-800mm | 800-3600mm | 0.4-4.0 ohms |
| 35mm | 400-2000mm | 250-800mm | 900-3600mm | 0.5-3.6 ohms |
| 40mm | 500-2700mm | 250-800mm | 1000-4300mm | 0.5-3.4 ohms |
| 45mm | 500-3000mm | 250-750mm | 1000-4500mm | 0.3-3.0 ohms |
| 50mm | 600-2500mm | 300-750mm | 1200-4000mm | 0.3-2.5 ohms |
| 54mm | 600-2500mm | 300-750mm | 1200-4000mm | 0.3-3.0 ohms |
5. Application
SiC heating element is widely used in high temperatue furnaces, It can be used in air, vacuum and other protection gase enviroments
6. Our Package
7. FRQ
Q1: I know nothing about this machine, what kind of machine I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to do
by using this machine, then let us give you perfect solutions and suggestions.
Q2: When I get this machine, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk by
Telephone/ Skype / Whatsapp / Weichat/ E-mail.
Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
