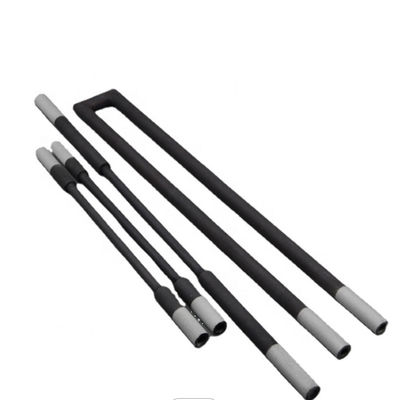

U Type 1400C 1200mm Aluminium Die Casting Parts Carbon Heating Elements

U Type 1400C 1200mm Aluminium Die Casting Parts Carbon Heating Elements
U Type 1400C 1200mm Aluminium Die Casting Parts Carbon Heating Elements U Type 1400C 1200mm Aluminium Die Casting Parts Carbon Heating Elements

Large Image :  U Type 1400C 1200mm Aluminium Die Casting Parts Carbon Heating Elements

Product Details:
Place of Origin: China
Brand Name: Hydeb
Certification: ISO9001,ISO14001,IS45001,High-tech Enterprise,Intellectual Property,Patents
Model Number: U1200
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: $ 50-$2000/Pcs
Packaging Details: Wooden Box
Delivery Time: 8 working days
Payment Terms: T/T
Supply Ability: 10000 pcs per year

U Type 1400C 1200mm Aluminium Die Casting Parts Carbon Heating Elements

Description
Name: U Type 1200mm Length Black Silicon Carbon Heating Elements For Aluminum Alloy Die Casting Lines Length: 1200 Mm
Color: Black Material: Silicon Carbon
Application: Heating Molten Aluminum Appearance: U Type
High Light:

1400C aluminium die casting parts

,

1200mm aluminium die casting parts

,

Carbon Heating Elements ISO14001

U Type 1200mm Length Black Silicon Carbon Heating Elements For Aluminum Alloy Die Casting Lines



Silicon Carbon SiC Heating Elements for Heating Molten Aluminum



1. Application



   SiC heating element is widely used in high temperatue furnaces, It can be used in air, vacuum and other protection gase enviroments



2. Specifications

---High working temperature: 1400C.
--- Long time last.
--- Varous type available. Rod, U, M, Single Spiral, Double Spiral

3.  How to Order Mission SiC Heating Element



--- Choose the shape you need, like Rod, U, W, Single Spiral etc.

--- Out Diameter (OD)

--- Heating Zone Lengh (HZ)

--- Overall Length (OL)

--- Resistance you need.

--- Order Sample: Rod type, OD30mm, HZ300mm, OL800mm, Resistance 0.4ohms.

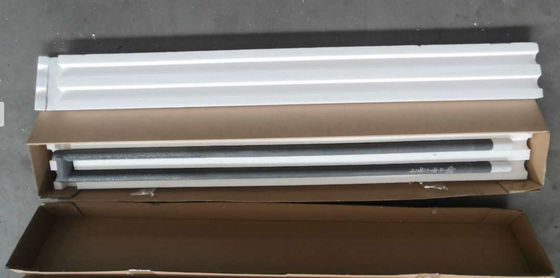

U Type 1400C 1200mm Aluminium Die Casting Parts Carbon Heating Elements 0



4. SiC heating elements Standard Sizes

 SiC elements can be made according to your need!



Diameter

Heating zone

Length

Cold zone

Length

Overall length Range of resistance
14mm 100-500mm 150-350mm 400-1200mm 0.7-5.6 ohms
16mm 200-600mm 150-350mm 500-1600mm 0.7-4.4 ohms
18mm 200-800mm 150-400mm 500-1600mm 0.7-5.8 ohms
20mm 200-800mm 200-600mm 600-2000mm 0.6-6.0 ohms
25mm 200-1200mm 250-700mm 700-2600mm 0.4-5.0 ohms
30mm 300-2000mm 250-800mm 800-3600mm 0.4-4.0 ohms
35mm 400-2000mm 250-800mm 900-3600mm 0.5-3.6 ohms
40mm 500-2700mm 250-800mm 1000-4300mm 0.5-3.4 ohms
45mm 500-3000mm 250-750mm 1000-4500mm 0.3-3.0 ohms
50mm 600-2500mm 300-750mm 1200-4000mm 0.3-2.5 ohms
54mm 600-2500mm 300-750mm 1200-4000mm 0.3-3.0 ohms



5. Company Profile



-- Established in January 2003, and now has 56 employees

-- Sales of 50 million RMB in 2021

-- Focus on one industry -- "aluminum casting"

-- Has a complete product line of aluminum casting equipment, all products are independent research

and development, manufacturing

-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid

hydrogen measurement, until aluminum solution aging treatment equipment



6. FRQ



Q1: I know nothing about this machine, what kind of machine I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to do
by using this machine, then let us give you perfect solutions and suggestions.


Q2: When I get this machine, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk by
Telephone/ Skype / Whatsapp / Weichat/ E-mail.


Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
