Product Details:
|
| Product Name: | Ladle Preheating System | Gas Flow Rate (M3/H): | 0-16 |
|---|---|---|---|
| Temperature Control Mode: | Automatic/Manual | Gas Pressure (Pa): | 5000 |
| Gas Type: | Natural Gas | Pressure (MPa): | 0.5-0.7 |
| Material: | Aluminum | Heating Rate (°C/min): | 0-20 (adjustable) |
| Highlight: | Adjustable Ladle Preheater,Industrial Ladle Preheater,Transfer Ladles Ladle Preheater |
||
Product Description:

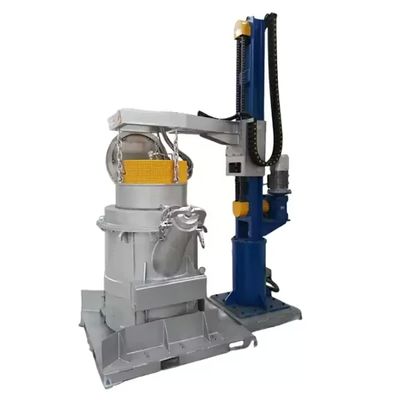

Heating Preheating Equipment Gas Fired Molten Aluminium Transfer Ladle Preheating Equipment

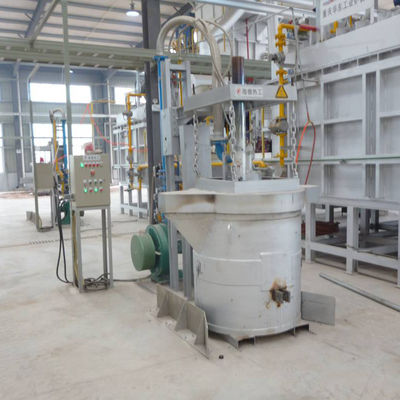

The transfer ladle preheating device is also called a Preheater. It is mainly used to quickly and uniformly increase the temperature of the molten alumnium ladle lining to reduce heat loss during molten alumnium pouring and prolong the service life of the molten alumnium ladle lining. Heating energy source can be gas or electricity.
◆ Natural gas (NG) or LPG can be chosen as the fuel.
◆ The heating speed can be adjusted within a wide range.
◆ Fully combusted, energy-saving and environment-friendly.
◆ Gas and combustion air pressure detection, abnormal ignition alarm.
◆ Heating temperature and time are controllable.
◆ Long open flame ignition function.
◆ Flame detection function.
| Product Name | Ladle Preheating System |
| Material | Aluminum |
| Temperature Control Mode | Automatic/Manual |
| Gas type | Natural Gas |
| Gas flow rate (M3/H) | 0-16 |
| Baking temperature (°C) | 0-850 |
| Pressure (MPa) | 0.5-0.7 |
| Voltage (V) | 380±10% |
| Frequency (Hz) | 50 |
| Warranty | 1 Year |
