Product Details:
|
| Product Name: | Ladle Preheating System | Frequency (Hz): | 50 |
|---|---|---|---|
| Pressure (MPa): | 0.5-0.7 | Gas Pressure (Pa): | 5000 |
| Temperature Control Accuracy: | ±5℃ | Temperature Control Mode: | Automatic/Manual |
| Warranty: | 1 Year | Temperature Uniformity During Baking (°C): | ≤50°C |
| Highlight: | Gas Fired Heating Ladle Preheater,Ladle Preheater For Transfer,Gas Fired Heating Ladle Preheating System |
||

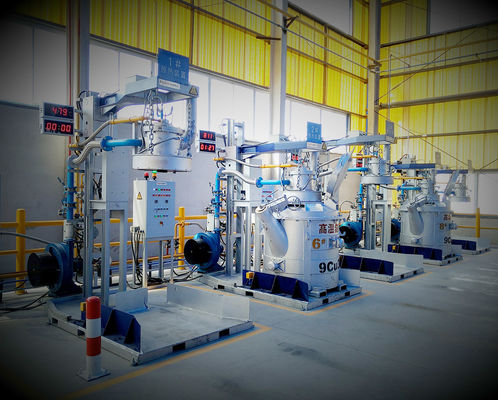

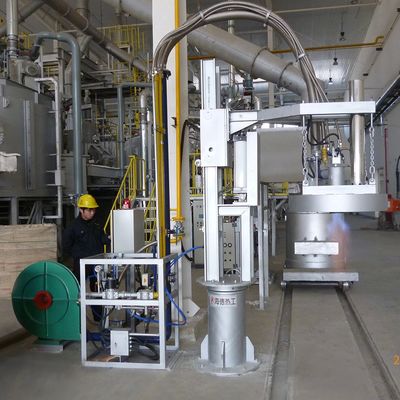

Heating Preheating Equipment Gas Fired Molten Aluminium Transfer Ladle Preheating Equipment
The transfer ladle preheating device is also called a Preheater. It is mainly used to quickly and uniformly increase the temperature of the molten alumnium ladle lining to reduce heat loss during molten alumnium pouring and prolong the service life of the molten alumnium ladle lining. Heating energy source can be gas or electricity.
◆ Natural gas (NG) or LPG can be chosen as the fuel.
◆ The heating speed can be adjusted within a wide range.
◆ Fully combusted, energy-saving and environment-friendly.
◆ Gas and combustion air pressure detection, abnormal ignition alarm.
◆ Heating temperature and time are controllable.
◆ Long open flame ignition function.
◆ Flame detection function.
| Product Name: | Ladle Preheating System |
| Frequency (Hz): | 50 |
| Voltage (V): | 380±10% |
| Baking temperature (°C): | 0-850 |
| Warranty: | 1 Year |
| Gas pressure (Pa): | 5000 |
| Flow rate (L/min): | 0-36 |
| Pressure (MPa): | 0.5-0.7 |
| Material: | Aluminum |
| Heating rate (°C/min): | 0-20 (adjustable) |
