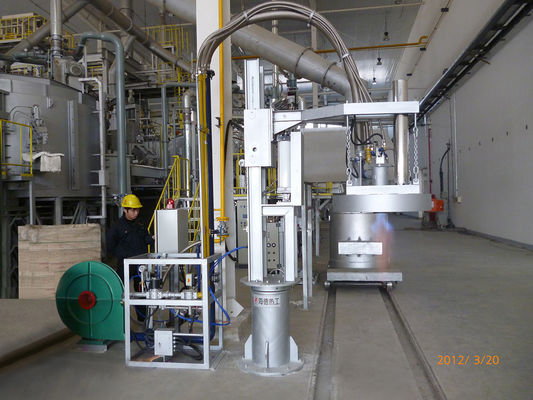

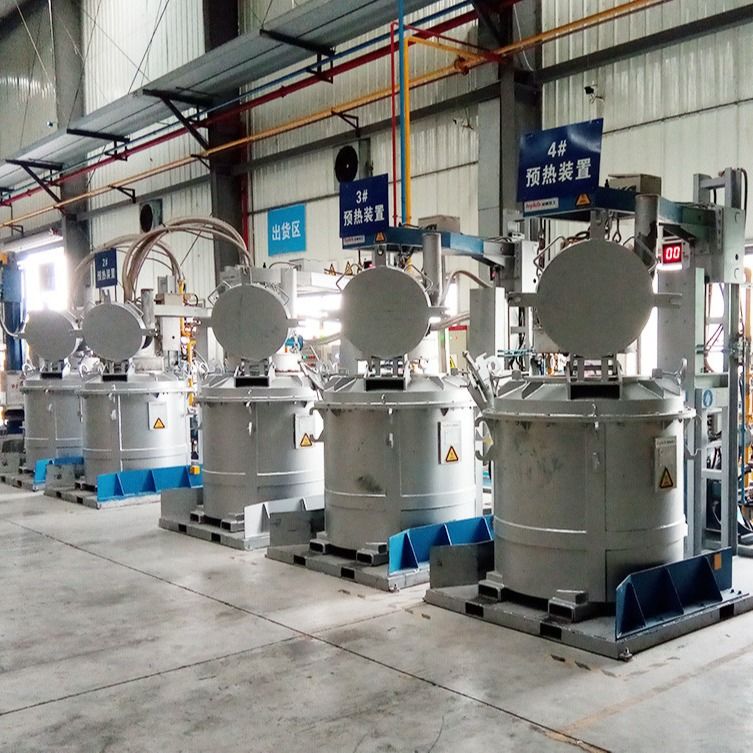

Stationary Molten Aluminium Transfer Ladle Preheating System Ladle Preheaters

Stationary Molten Aluminium Transfer Ladle Preheating System Ladle Preheaters
Stationary Molten Aluminium Transfer Ladle Preheating System Ladle Preheaters Stationary Molten Aluminium Transfer Ladle Preheating System Ladle Preheaters Stationary Molten Aluminium Transfer Ladle Preheating System Ladle Preheaters Stationary Molten Aluminium Transfer Ladle Preheating System Ladle Preheaters Stationary Molten Aluminium Transfer Ladle Preheating System Ladle Preheaters

Large Image :  Stationary Molten Aluminium Transfer Ladle Preheating System Ladle Preheaters

Product Details:
Place of Origin: Jinan, China
Brand Name: HYDEB
Certification: CE ISO9001
Model Number: HBQ-230
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 18000USD/set
Packaging Details: Standard exporting package
Delivery Time: 45 workdays
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 60 sets per year

Stationary Molten Aluminium Transfer Ladle Preheating System Ladle Preheaters

Description
Material: Natural Gas Burner, Steel Color: According To Your Requirment
Ladle Cover: Customized Usage: Ladle Preheating
Heating Temperature: 900℃ Burner Brand: Baltur
Moving Method: Air Cylinder
High Light:

Stationary Ladle Preheating System

,

Aluminium Transfer Ladle Preheating System

,

Molten Aluminium Transfer Ladle Preheaters

Natural Gas Fired Transfer Ladle Preheating Equipment



1. EQUIPMENT APPLICATION

Gas Heating Molten Aluminum Transfer Ladle Preheating Equipment uses natural gas as fuel and is mainly used for rapid heating of ladle in the process of transferring molten aluminum. It can also be used to heat new ladle and cold repair ladle. Through our company's many years of experience accumulation, perfection and continuous improvement, the product function and quality have been developed by leaps and bounds. It is a new generation of high-efficiency gas preheater independently developed by our company.



2. EQUIPMENT FEATURES
• Natural gas (NG) or LPG is chosen as the fuel.
• The heating speed can be adjusted within a wide range.
• Fully combusted, energy-saving and environment-friendly.
• Suitable for molten aluminum ladles of different heights.
• Equipped with a conventional high-speed gas burner and a self-preheating burner.
• Gas and combustion air pressure detection, abnormal ignition alarm.
• Heating temperature and time are controllable.
• Long open flame ignition function.

• Flame detection function.



3. EQUIPMENT ADVANTAGES

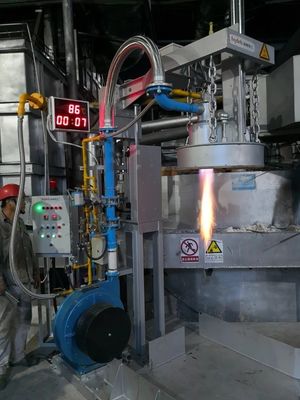

◇The preheating device adopts natural gas burner, with high flame ejection speed, long flame, good rigidity, direct injection to the bottom of the ladle, uniform heating temperature of the ladle lining, and fast heating speed.

◇The equipment is safe and reliable. Set up a variety of emergency stop controls to ensure that the system can be stopped and alarmed in any fault state, effectively ensuring the safety of personnel and equipment.

◇The setting of heating control has two modes, which can be adjusted freely according to the requirements of on-site use. Mode 1: The heating time can be preset within the range of 0-60min, and the heating will be automatically stopped when the preset time is reached, and the sound and light will prompt. Mode 2: Do not limit the heating time, stop heating manually. It can automatically detect flameout and alarm, and cut off the fuel supply.

◇The heating speed is fast and the temperature in the ladle is even. The heating rate can be adjusted from 0-20℃/min to ensure that the ladle can rise from room temperature to the normal operating temperature of about 550℃ within 30 minutes. The heating flame of the ladle can cover the entire cavity of the ladle to ensure that the maximum temperature difference at each point in the ladle is ≤50℃.

◇The operation is simple and convenient. The preheating cover can be driven by a cylinder to move up and down to facilitate the placement of the ladle.

◇Wide range of application. The heating cover is connected by a short ring chain, which is suitable for heating a variety of high aluminum ladle.

◇Low noise. Using low-noise and high-pressure combustion-supporting fan, the noise is not more than 80 dB.



4. MAIN PARAMETERS



Items Parameters Remarks
Modle HBQ-230
Heating Type Small; Medium; Big
Max. Burning Calorific Value 20x104 Kcal/h
Max Heating Temperature 1100℃
Working Heating Temperature 0-850℃
Heating Rate 0-50 ℃/min Adjustable
Time to Reach Temperature 0-60 min
Heating Temperature Uniformity ≤50 ℃
Lifting Power Air Cylinder Driver
Lifting Stroke 0-400mm
Gas Gas Type Natural Gas
Gas Pressure 5000 ±5% Pa
Gas Flow ≤24 m³/h
Power Voltage 380 V, 3P
Frequency 50HZ
Rated Power 3 KW
Compressed Air Pressure 0.5-0.7 MPa
Flow ≤50 M3/H



Stationary Molten Aluminium Transfer Ladle Preheating System Ladle Preheaters 0Stationary Molten Aluminium Transfer Ladle Preheating System Ladle Preheaters 1Stationary Molten Aluminium Transfer Ladle Preheating System Ladle Preheaters 2Stationary Molten Aluminium Transfer Ladle Preheating System Ladle Preheaters 3Stationary Molten Aluminium Transfer Ladle Preheating System Ladle Preheaters 4

Stationary Molten Aluminium Transfer Ladle Preheating System Ladle Preheaters 5
