Transfer Ladle Heating Burner Gas Fired Preheating Equipment For Molten Aluminum

Transfer Ladle Heating Burner Gas Fired Preheating Equipment For Molten Aluminum
Transfer Ladle Heating Burner Gas Fired Preheating Equipment For Molten Aluminum
Transfer Ladle Heating Burner Gas Fired Preheating Equipment For Molten Aluminum Transfer Ladle Heating Burner Gas Fired Preheating Equipment For Molten Aluminum Transfer Ladle Heating Burner Gas Fired Preheating Equipment For Molten Aluminum Transfer Ladle Heating Burner Gas Fired Preheating Equipment For Molten Aluminum

Large Image :  Transfer Ladle Heating Burner Gas Fired Preheating Equipment For Molten Aluminum

Product Details:
Place of Origin: China
Brand Name: Hydeb
Certification: CE,ISO9001,ISO14001,IS45001,High-tech Enterprise,Intellectual Property,Patents
Model Number: HBQ-150
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $ 15000-$30000/set
Packaging Details: Wooden Case or Pallet
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 50 sets per year

Transfer Ladle Heating Burner Gas Fired Preheating Equipment For Molten Aluminum

Description
Name: Trasfer Ladle Gas Fired Type Preheating Equipment For Molten Aluminum Appearance: Iron Grey
Power Source: Gas/LPG/Electric Raw Material: Iron Steel & Insulation Layer
Power: 440V/480V/380V Air Flow: ≤ 50 M3/H
MOQ: 1 Set Function: Ladles Pre-heating
Material: Iron Bucket And Insulation Material
High Light:

440v ladle heating burner

,

molten aluminum ladle heating burner

,

molten aluminum vertical ladle preheater

Trasfer Ladle Gas Fired Electric Type Preheating Device for Molten Aluminum



Gas Fired Molten Aluminium Transfer Ladle Preheating Device



Gas Fired Preheating Station



1. Preheater Introduce



A ladle preheat system is a stand-alone station with a burner, system control center, and movable heater

assembly inside of an insulated cover. The heater and cover assembly is raised and lowered above open ladles.



These systems are typically designed for ladle capacities of one-half to two tonnes. Gas and electric power options

are available, and equipment controls can be customized to customer needs, ranging from advanced temperature

control options to manual controls.



2.  Peheater Genernal Description



Aluminium transfer ladle preheater use natural gas or oil or electricity as the fuel, heat the transfer ladle through the

burner on the top of machine to achieve the transfer ladle preheating.





3.  Preheater Technical Parameters



Items Parameters Remarks
Heating Type Small; Medium; Big
Max. Burning Calorific Value 13x104 Kcal/h
Heating Temperature 0-900℃
Temperature Control Accuracy ≤ ±20℃
Heating Rate 0-20 ℃/min Adjustable
Time to Reach Temperature 0-60 min
Heating Temperature Uniformity ≤50 ℃
Lifting Power Cylinder Driver
Lifting Stroke 0-400mm
Gas Gas Type Natural Gas
Gas Pressure 5000 ±5% Pa
Gas Flow ≤ 16 m³/h
Power Voltage 380 V, 3P
Frequency 50HZ
Rated Power 3 KW
Compressed Air Pressure 0.5-0.7 MPa
Flow ≤ 50 M3/H

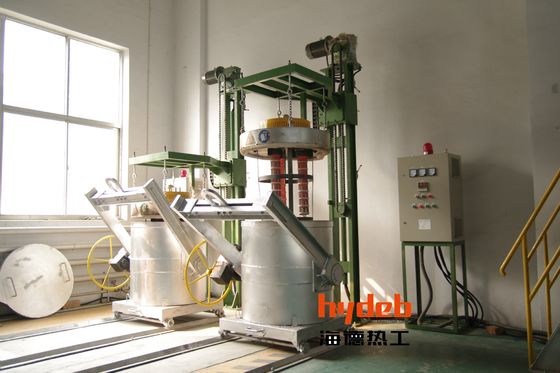

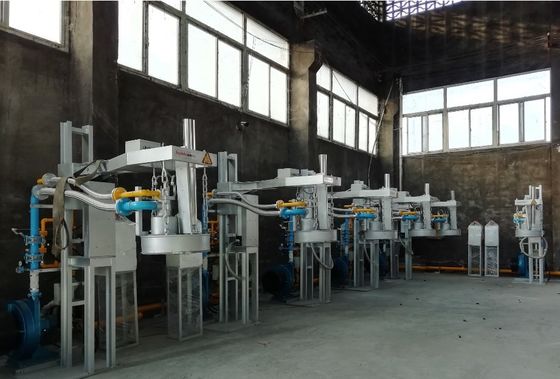

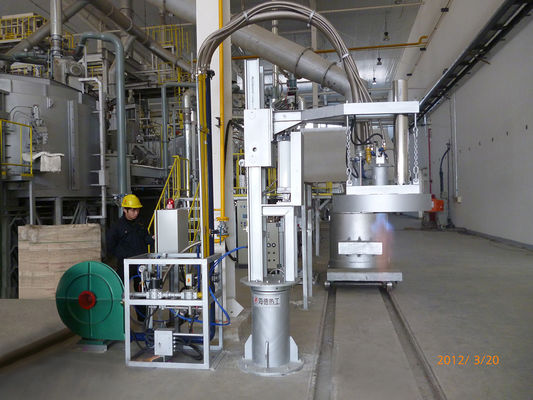

4. Reference Pictures



Transfer Ladle Heating Burner Gas Fired Preheating Equipment For Molten Aluminum 0

Transfer Ladle Heating Burner Gas Fired Preheating Equipment For Molten Aluminum 1



 5.  Our Strengths



Transfer Ladle Heating Burner Gas Fired Preheating Equipment For Molten Aluminum 2



6. FRQ



Q1: I know nothing about this preheater, what kind of preheater I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to do
by using this machine, then let us give you perfect solutions and suggestions.


Q2: When I get this preheater, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk by
Telephone/ Skype / Whatsapp / Weichat/ E-mail.


Q3: If some problems happen to this preheater during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.



7.  Main Features



A. Automatic ignition and heating, preheating temperature and time can be set freely. High combustion efficiency and fast heating speed;



B. Adopt brand burner or heater, stable performance and long service life;



C. Heating and lifting can be controlled automatically, easy and simple operation;



D. Natural gas, LPG or electricity and other energy can be used for fuel;



E. Equipped with multiple safety detection devices, gas pressure, flame detection,, ignition abnormal alarm;



F. Heat insulation cover adopt high strength refractory whole castable, good thermal insulation effect;



G. Can be used for different capacity transfer ladle;



H. Can be tailor made according to your transfer ladle diameter and your request.
