Product Details:
|
| Product Name: | NG Gas Source Transfer Ladle Top Hot Heater Station For Casting Factory | Colour: | Siliver |
|---|---|---|---|
| Function: | Preheating Ladles | Raw Material: | Iron Steel Shell |
| Air Flow: | ≤ 50 M3/H | Warranty Time: | 1 Year |
| High Light: | NG Natural Gas Ladle Preheating System,Ladle Preheating System 900C,rotary air preheater Hot Heater Station |
||
NG Gas Source Transfer Ladle Top Hot Heater Station For Casting Factory
Molten Aluminium Transfer Ladle Preheating Device by Gas Heating
1. Ladle Top Hot Heater Station Introduce
Aluminium transfer ladle preheater can use natural gas or oil or electricity as the fuel. Heating the transfer ladle
through the burner on the top of machine to achieve the transfer ladle preheating.
2. Ladle Top Hot Heater Station Description
The preheating system is a stand-alone station with a burner, system control center, and movable heater
assembly inside of an insulated cover. The heater and cover assembly is raised and lowered above open ladles.
3. Ladle Top Hot Heater Station Technical Specification
| Items | Specification | Remarks | |
| Heating Type | Small; Medium; Big | ||
| Max. Burning Calorific Value | 13x104 Kcal/h | ||
| Heating Temperature | 0-900℃ | ||
| Temperature Control Accuracy | ≤ ±20℃ | ||
| Heating Rate | 0-20 ℃/min Adjustable | ||
| Time to Reach Temperature | 0-60 min | ||
| Heating Temperature Uniformity | ≤50 ℃ | ||
| Lifting Power | Cylinder Driver | ||
| Lifting Stroke | 0-400mm | ||
| Gas | Gas Type | Natural Gas | |
| Gas Pressure | 5000 ±5% Pa | ||
| Gas Flow | ≤ 16 m³/h | ||
| Power | Voltage | 380 V, 3P | |
| Frequency | 50HZ | ||
| Rated Power | 3 KW | ||
| Compressed Air | Pressure | 0.5-0.7 MPa | |
| Flow | ≤ 50 M3/H | ||

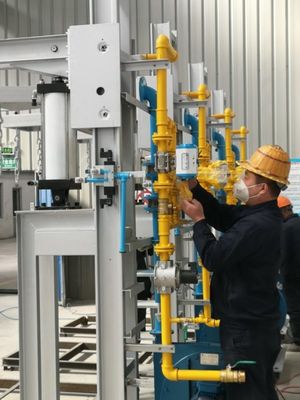

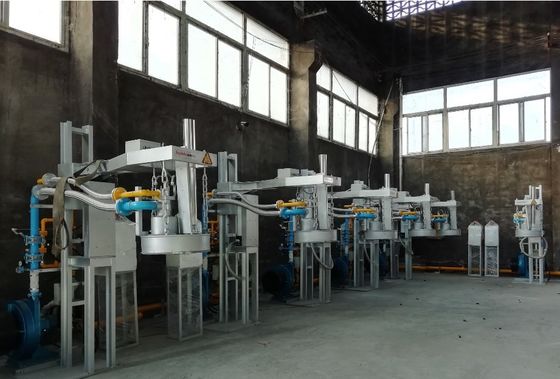

4. Working Picture
5. Characteristic
--- Automatic ignition and heating, preheating temperature and time can be set freely. High combustion
efficiency and fast heating speed；
--- Adopt brand burner or heater, stable performance and long service life；
--- Heating and lifting can be controlled automatically, easy and simple operation；
--- Natural gas, LPG or electricity and other energy can be used for fuel；
--- Equipped with multiple safety detection devices, gas pressure, flame detection,, ignition abnormal alarm；
--- Heat insulation cover adopt high strength refractory whole castable, good thermal insulation effect；
--- Can be used for different capacity transfer ladle；
--- Can be tailor made according to your transfer ladle diameter and your request.
6. Our Certification
7. FRQ
Q1: I know nothing about this ladle top hot station, what kind of ladle top hot station I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to
do by using this machine, then let us give you perfect solutions and suggestions.
Q2: When I get this ladle top hot station, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk
by Telephone/ Skype / Whatsapp / Weichat/ E-mail.
Q3: If some problems happen to this ladle top hot station during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
