Product Details:
|
| Name: | Gas Source Siliver Top Heating Station For Preheating Transfer Ladles | Color: | Siliver |
|---|---|---|---|
| Fuse: | LPG/NG | Material: | Iron Steel & Insulation Layer |
| Air Flow: | ≤ 50 M3/H | Burner: | Made In China |
| Highlight: | ladle preheater burners,ladle preheater burners natural gas NG,electric heat treatment furnace 50M3/H |
||
Gas Source Siliver Top Heating Station For Preheating Transfer Ladles
Gas Type Transfer Ladle Preheating Device for Molten Aluminum
1. Preheater Station Composition
The preheating system is a stand-alone station with a burner, system control center, and movable heater
assembly inside of an insulated cover. The heater and cover assembly is raised and lowered above open ladles.
2. Aluminium Transfer Ladle Preheater Introduce
Aluminium transfer ladle preheater can use natural gas or oil or electricity as the fuel. Heating the transfer ladle
through the burner on the top of machine to achieve the transfer ladle preheating.
3. Specification Data
| Items | Specification | Remarks | |
| Heating Type | Small; Medium; Big | ||
| Max. Burning Calorific Value | 13x104 Kcal/h | ||
| Heating Temperature | 0-900℃ | ||
| Temperature Control Accuracy | ≤ ±20℃ | ||
| Heating Rate | 0-20 ℃/min Adjustable | ||
| Time to Reach Temperature | 0-60 min | ||
| Heating Temperature Uniformity | ≤50 ℃ | ||
| Lifting Power | Cylinder Driver | ||
| Lifting Stroke | 0-400mm | ||
| Gas | Gas Type | Natural Gas | |
| Gas Pressure | 5000 ±5% Pa | ||
| Gas Flow | ≤ 16 m³/h | ||
| Power | Voltage | 380 V, 3P | |
| Frequency | 50HZ | ||
| Rated Power | 3 KW | ||
| Compressed Air | Pressure | 0.5-0.7 MPa | |
| Flow | ≤ 50 M3/H | ||

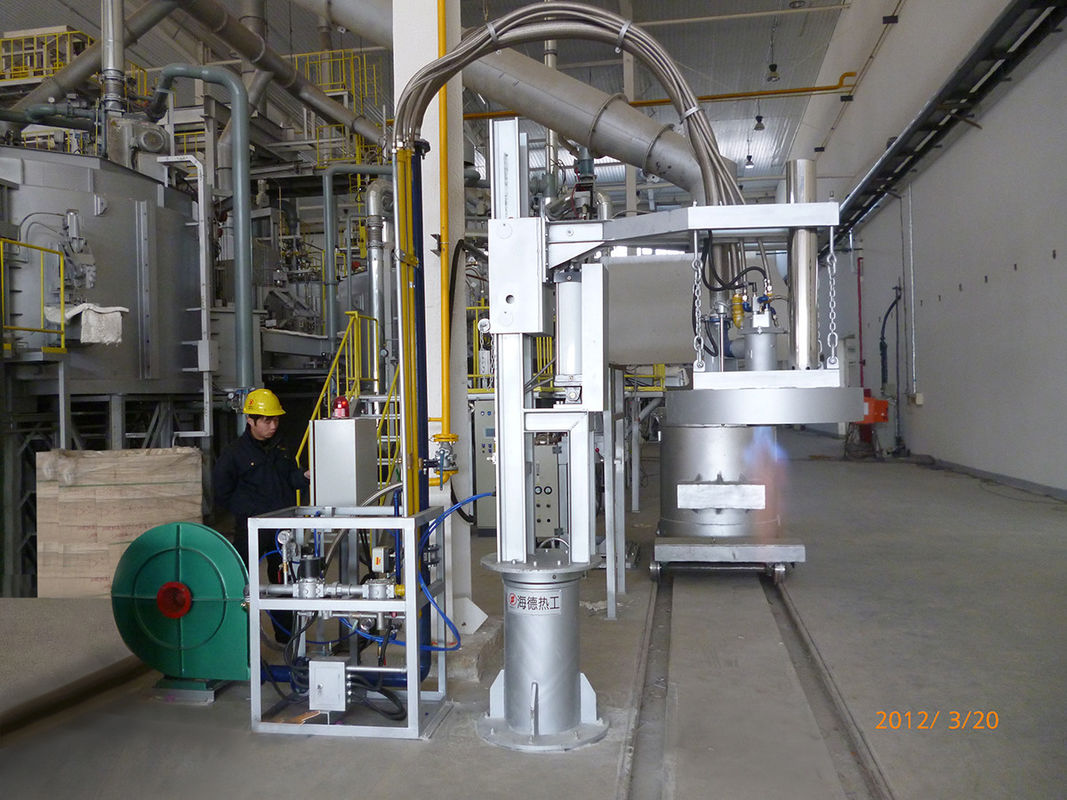

4. Reference Pictures
5. Company Introduce
-- Established in January 2003, and now has 56 employees
-- Sales of 50 million RMB in 2021
-- Focus on one industry -- "aluminum casting"
-- Has a complete product line of aluminum casting equipment, all products are independent research
and development, manufacturing
-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid
hydrogen measurement, until aluminum solution aging treatment equipment
6. Features
A. Automatic ignition and heating, preheating temperature and time can be set freely. High combustion
efficiency and fast heating speed；
B. Adopt brand burner or heater, stable performance and long service life；
C. Heating and lifting can be controlled automatically, easy and simple operation；
D. Natural gas, LPG or electricity and other energy can be used for fuel；
E. Equipped with multiple safety detection devices, gas pressure, flame detection,, ignition abnormal alarm；
F. Heat insulation cover adopt high strength refractory whole castable, good thermal insulation effect；
G. Can be used for different capacity transfer ladle；
H. Can be tailor made according to your transfer ladle diameter and your request.
7. FRQ
Q1: I know nothing about this machine, what kind of machine I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to
do by using this machine, then let us give you perfect solutions and suggestions.
Q2: When I get this machine, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk
by Telephone/ Skype / Whatsapp / Weichat/ E-mail.
Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
