Product Details:
|
| Name: | HBQ-230 Blue Gas Fired Preheating Unit For Molten Aluminium Transfer Ladle | Colour: | Blue |
|---|---|---|---|
| Fuse: | Gas/LPG | Raw Material: | Iron Steel & Insulation Layer |
| Voltage: | 380V Or Customized | Air Flow: | ≤ 50 M3/H |
| MOQ: | 1 Set | Function: | Preheating Ladles |
| High Light: | 380V electric heater machine,LPG Gas electric heater machine,900C induction heat treating equipment |
||
HBQ-230 Blue Gas Fired Preheating Unit For Molten Aluminium Transfer Ladle
Gas Fired Molten Aluminium Transfer Ladle Preheating Device
Gas Fired Preheating Station
1. Preheater Introduce
A ladle preheat system is a stand-alone station with a burner, system control center, and movable heater
assembly inside of an insulated cover. The heater and cover assembly is raised and lowered above open ladles.
These systems are typically designed for ladle capacities of one-half to two tonnes. Gas and electric power options
are available, and equipment controls can be customized to customer needs, ranging from advanced temperature
control options to manual controls.
2. Peheater Genernal Description
Aluminium transfer ladle preheater use natural gas or oil or electricity as the fuel, heat the transfer ladle through the
burner on the top of machine to achieve the transfer ladle preheating.
3. Preheater Technical Parameters
| Items | Parameters | Remarks | |
| Heating Type | Small; Medium; Big | ||
| Max. Burning Calorific Value | 13x104 Kcal/h | ||
| Heating Temperature | 0-900℃ | ||
| Temperature Control Accuracy | ≤ ±20℃ | ||
| Heating Rate | 0-20 ℃/min Adjustable | ||
| Time to Reach Temperature | 0-60 min | ||
| Heating Temperature Uniformity | ≤50 ℃ | ||
| Lifting Power | Cylinder Driver | ||
| Lifting Stroke | 0-400mm | ||
| Gas | Gas Type | Natural Gas | |
| Gas Pressure | 5000 ±5% Pa | ||
| Gas Flow | ≤ 16 m³/h | ||
| Power | Voltage | 380 V, 3P | |
| Frequency | 50HZ | ||
| Rated Power | 3 KW | ||
| Compressed Air | Pressure | 0.5-0.7 MPa | |
| Flow | ≤ 50 M3/H | ||

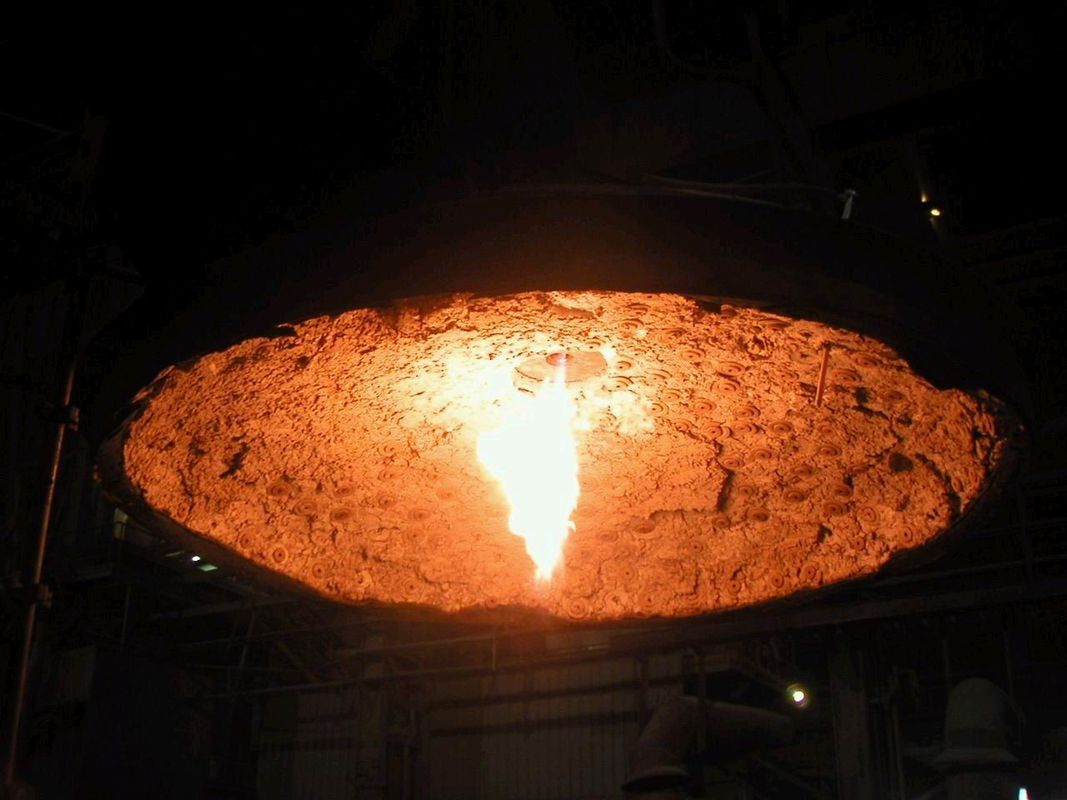

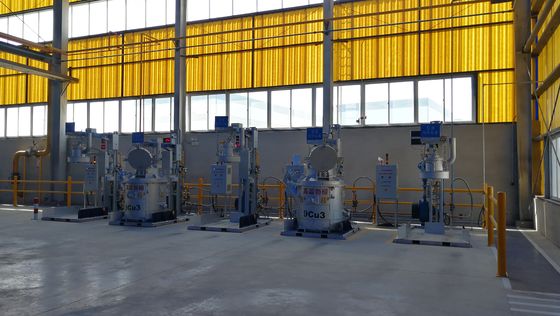

4. Reference Pictures
5. Our Strengths
6. FRQ
Q1: I know nothing about this preheater, what kind of preheater I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to do
by using this machine, then let us give you perfect solutions and suggestions.
Q2: When I get this preheater, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk by
Telephone/ Skype / Whatsapp / Weichat/ E-mail.
Q3: If some problems happen to this preheater during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
7. Main Features
A. Automatic ignition and heating, preheating temperature and time can be set freely. High combustion efficiency and fast heating speed；
B. Adopt brand burner or heater, stable performance and long service life；
C. Heating and lifting can be controlled automatically, easy and simple operation；
D. Natural gas, LPG or electricity and other energy can be used for fuel；
E. Equipped with multiple safety detection devices, gas pressure, flame detection,, ignition abnormal alarm；
F. Heat insulation cover adopt high strength refractory whole castable, good thermal insulation effect；
G. Can be used for different capacity transfer ladle；
H. Can be tailor made according to your transfer ladle diameter and your request.
