Product Details:
|
| Key Name: | HBQ-320 Gas Heating Siliver Preheater Station For Molten Aluminium Transfer Ladle | Colour: | Siliver |
|---|---|---|---|
| Fuse: | LPG/NG | Raw Material: | Iron Steel Shell |
| Air Flow: | ≤ 50 M3/H | Warranty Time: | 1 Year |
| High Light: | 50 M3/H Ladle Preheating System,NG Ladle Preheating System,induction heat treating equipment 3 KW |
||
HBQ-320 Gas Heating Siliver Preheater Station For Molten Aluminium Transfer Ladle
Molten Aluminium Transfer Ladle Preheating Device by Gas Heating
A ladle preheat system is a stand-alone station with a burner, system control center, and movable heater
assembly inside of an insulated cover. The heater and cover assembly is raised and lowered above open ladles.
These systems are typically designed for ladle capacities of one-half to two tonnes (1,000 to 4,000 pounds).
Gas and electric power options are available, and equipment controls can be customized to customer needs,
ranging from advanced temperature control options to manual controls.
1. Preheater Composition
The preheating system is a stand-alone station with a burner, system control center, and movable heater
assembly inside of an insulated cover. The heater and cover assembly is raised and lowered above open ladles.
2. Aluminium Transfer Ladle Preheater Description
Aluminium transfer ladle preheater can use natural gas or oil or electricity as the fuel. Heating the transfer ladle
through the burner on the top of machine to achieve the transfer ladle preheating.
3. Company Introduce
-- Established in January 2003, and now has 56 employees
-- Sales of 50 million RMB in 2020
-- Focus on one industry -- "aluminum casting"
-- Has a complete product line of aluminum casting equipment, all products are independent research
and development, manufacturing
-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid
hydrogen measurement, until aluminum solution aging treatment equipment
4. Technical Data
| Items | Data | Remarks | |
| Heating Type | Small; Medium; Big | ||
| Max. Burning Calorific Value | 13x104 Kcal/h | ||
| Heating Temperature | 0-900℃ | ||
| Temperature Control Accuracy | ≤ ±20℃ | ||
| Heating Rate | 0-20 ℃/min Adjustable | ||
| Time to Reach Temperature | 0-60 min | ||
| Heating Temperature Uniformity | ≤50 ℃ | ||
| Lifting Power | Cylinder Driver | ||
| Lifting Stroke | 0-400mm | ||
| Gas | Gas Type | Natural Gas | |
| Gas Pressure | 5000 ±5% Pa | ||
| Gas Flow | ≤ 16 m³/h | ||
| Power | Voltage | 380 V, 3P | |
| Frequency | 50HZ | ||
| Rated Power | 3 KW | ||
| Compressed Air | Pressure | 0.5-0.7 MPa | |
| Flow | ≤ 50 M3/H | ||

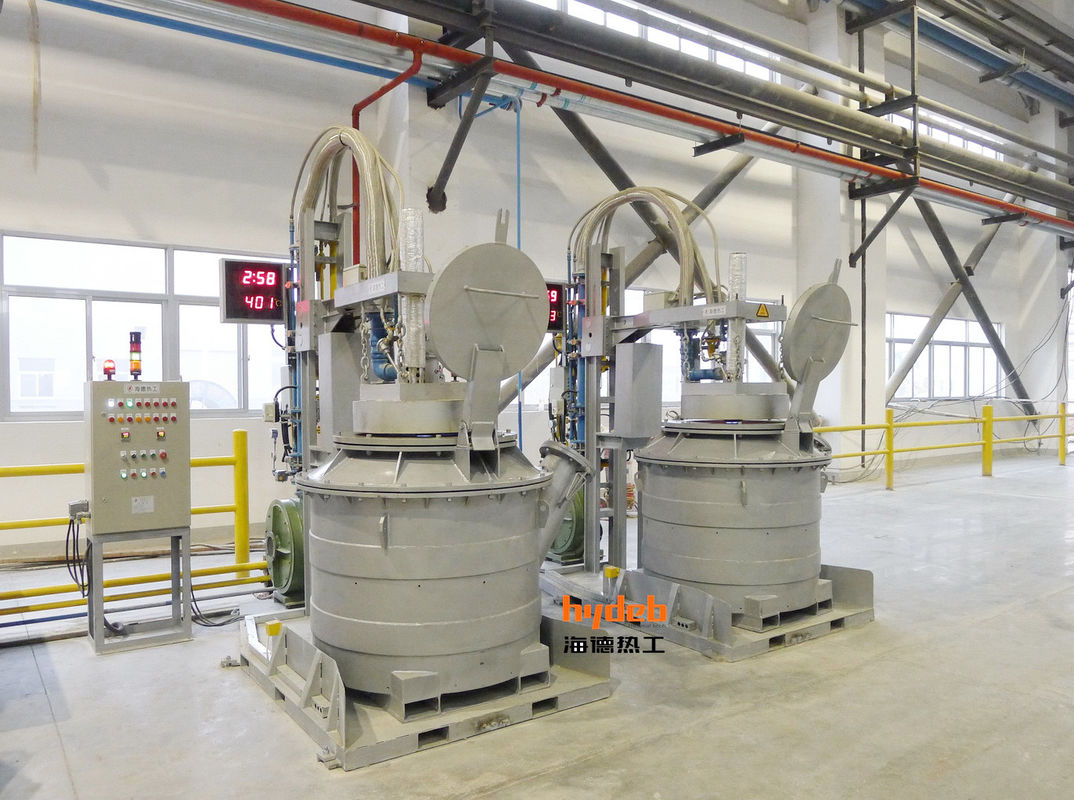

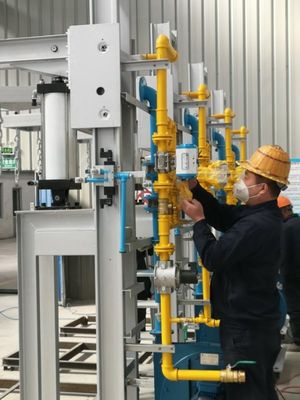

4. Preheating Station Pictures
5. Main Features
A. Automatic ignition and heating, preheating temperature and time can be set freely. High combustion
efficiency and fast heating speed；
B. Adopt brand burner or heater, stable performance and long service life；
C. Heating and lifting can be controlled automatically, easy and simple operation；
D. Natural gas, LPG or electricity and other energy can be used for fuel；
E. Equipped with multiple safety detection devices, gas pressure, flame detection,, ignition abnormal alarm；
F. Heat insulation cover adopt high strength refractory whole castable, good thermal insulation effect；
G. Can be used for different capacity transfer ladle；
H. Can be tailor made according to your transfer ladle diameter and your request.
6. Our Delivery
7. CE Certification
