Gas Source Silver For Heating Transfer Ladles Preheater Station 50 M3/H 900 Degree

Gas Source Silver For Heating Transfer Ladles Preheater Station 50 M3/H 900 Degree
Gas Source Silver For Heating Transfer Ladles Preheater Station 50 M3/H 900 Degree
Gas Source Silver For Heating Transfer Ladles Preheater Station 50 M3/H 900 Degree Gas Source Silver For Heating Transfer Ladles Preheater Station 50 M3/H 900 Degree Gas Source Silver For Heating Transfer Ladles Preheater Station 50 M3/H 900 Degree

Large Image :  Gas Source Silver For Heating Transfer Ladles Preheater Station 50 M3/H 900 Degree

Product Details:
Place of Origin: China
Brand Name: Hydeb
Certification: CE,ISO9001,ISO14001,IS45001,High-tech Enterprise,Intellectual Property,Patents
Model Number: HBQ-230
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $ 15000-$30000/set
Packaging Details: Wooden Case or Pallet
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 50 sets per year

Gas Source Silver For Heating Transfer Ladles Preheater Station 50 M3/H 900 Degree

Description
Products Name: Gas Source Siliver Preheater Station For Heating Transfer Ladles Colour: Siliver
Fuse Sorce: NG/LPG Raw Material: Iron Steel & Insulation Layer
Air Flow: ≤ 50 M3/H Burner: Made In China
High Light:

LPG heat treatment machine preheater station

,

heat treatment machine 50 M3/H

,

preheater machine 900 degree

Gas Source Siliver Preheater Station for Heating Transfer Ladles



Gas Type Transfer Ladle Preheating Device for Molten Aluminum





1. Preheater Station Composition



The preheating system is a stand-alone station with a burner, system control center, and movable heater

assembly inside of an insulated cover. The heater and cover assembly is raised and lowered above open ladles.



2. Aluminium Transfer Ladle Preheater Introduce



Aluminium transfer ladle preheater can use natural gas or oil or electricity as the fuel. Heating the transfer ladle
through the burner on the top of machine to achieve the transfer ladle preheating.



3. Specification



Items Specification Remarks
Heating Type Small; Medium; Big
Max. Burning Calorific Value 13x104 Kcal/h
Heating Temperature 0-900℃
Temperature Control Accuracy ≤ ±20℃
Heating Rate 0-20 ℃/min Adjustable
Time to Reach Temperature 0-60 min
Heating Temperature Uniformity ≤50 ℃
Lifting Power Cylinder Driver
Lifting Stroke 0-400mm
Gas Gas Type Natural Gas
Gas Pressure 5000 ±5% Pa
Gas Flow ≤ 16 m³/h
Power Voltage 380 V, 3P
Frequency 50HZ
Rated Power 3 KW
Compressed Air Pressure 0.5-0.7 MPa
Flow ≤ 50 M3/H

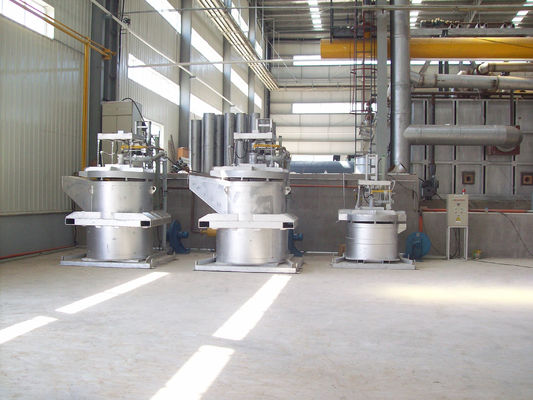

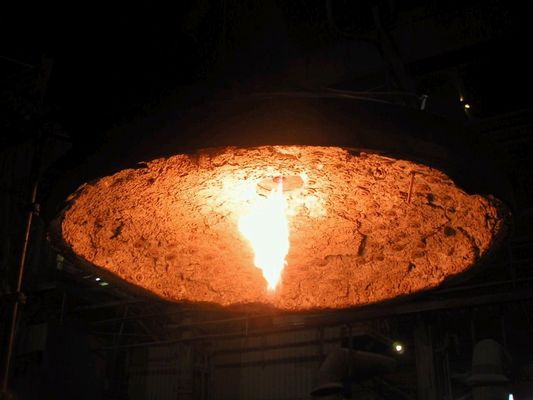

4. Reference Pictures





Gas Source Silver For Heating Transfer Ladles Preheater Station 50 M3/H 900 Degree 0



5.  Company Introduce



-- Established in January 2003, and now has 56 employees

-- Sales of 50 million RMB in 2021

-- Focus on one industry -- "aluminum casting"

-- Has a complete product line of aluminum casting equipment, all products are independent research

and development, manufacturing

-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid

hydrogen measurement, until aluminum solution aging treatment equipment



6.  Features



A. Automatic ignition and heating, preheating temperature and time can be set freely. High combustion
    efficiency and fast heating speed;



B. Adopt brand burner or heater, stable performance and long service life;



C. Heating and lifting can be controlled automatically, easy and simple operation;



D. Natural gas, LPG or electricity and other energy can be used for fuel;



E. Equipped with multiple safety detection devices, gas pressure, flame detection,, ignition abnormal alarm;



F. Heat insulation cover adopt high strength refractory whole castable, good thermal insulation effect;



G. Can be used for different capacity transfer ladle;



H. Can be tailor made according to your transfer ladle diameter and your request.





7. Our Certification



Gas Source Silver For Heating Transfer Ladles Preheater Station 50 M3/H 900 Degree 1



8. FRQ



Q1: I know nothing about this machine, what kind of machine I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to
do by using this machine, then let us give you perfect solutions and suggestions.


Q2: When I get this machine, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk
by Telephone/ Skype / Whatsapp / Weichat/ E-mail.


Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
