Gas Fired Ladle Preheating System 900c

Gas Fired Ladle Preheating System 900c
Gas Fired Ladle Preheating System 900c Gas Fired Ladle Preheating System 900c

Large Image :  Gas Fired Ladle Preheating System 900c

Product Details:
Place of Origin: China
Brand Name: Hydeb
Certification: CE,ISO9001,ISO14001,IS45001,High-tech Enterprise,Intellectual Property,Patents
Model Number: HBQ-450
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $ 15000-$30000/set
Packaging Details: Wooden Case or Pallet
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 50 sets per year

Gas Fired Ladle Preheating System 900c

Description
Products Name: HBQ-450 Gas Fired Blue Molten Aluminium Preheating Device For Ladles Colour: Blue
Fuse Sorce: NP Material: Iron Steel & Insulation Layer
Air Flow Rate: Less Than 50 M3/H MOQ: 1 Set
High Light:

Gas Fired Ladle Preheating System

,

Ladle Preheating System 50 M3/H

,

vacuum heat treatment furnace 900c



HBQ-450 Gas Fired Blue Molten Aluminium Preheating Device for Ladles​



Transfer Ladle Preheating Device by Gas Heating





1. Preheating Deive Description



The preheating system is a stand-alone station with a burner, system control center, and movable heater

assembly inside of an insulated cover. The heater and cover assembly is raised and lowered above open ladles.



2. Preheating Device Introduce



Aluminium transfer ladle preheater can use natural gas or oil or electricity as the fuel. Heating the transfer ladle
through the burner on the top of machine to achieve the transfer ladle preheating.



3.  Preheating Device Technical Data



Items Data Remarks
Heating Type Small; Medium; Big
Max. Burning Calorific Value 13x104 Kcal/h
Heating Temperature 0-900℃
Temperature Control Accuracy ≤ ±20℃
Heating Rate 0-20 ℃/min Adjustable
Time to Reach Temperature 0-60 min
Heating Temperature Uniformity ≤50 ℃
Lifting Power Cylinder Driver
Lifting Stroke 0-400mm
Gas Gas Type Natural Gas
Gas Pressure 5000 ±5% Pa
Gas Flow ≤ 16 m³/h
Power Voltage 380 V, 3P
Frequency 50HZ
Rated Power 3 KW
Compressed Air Pressure 0.5-0.7 MPa
Flow ≤ 50 M3/H

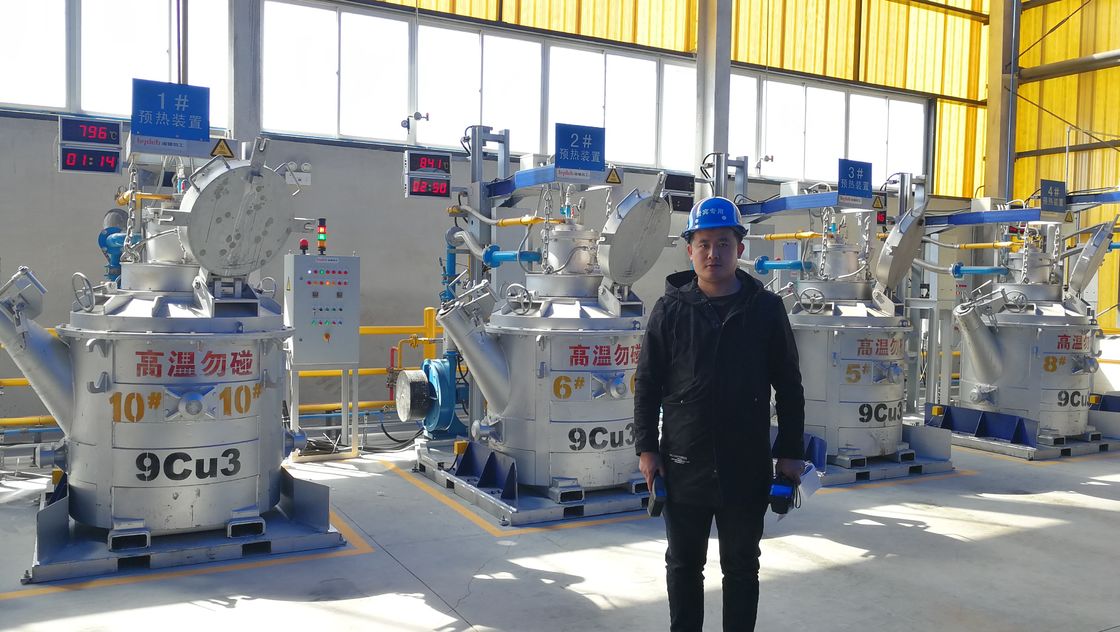

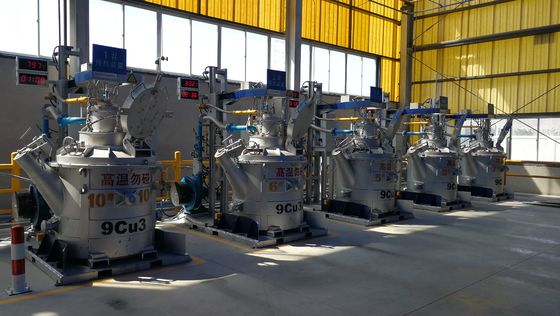

4. Reference Pictures





Gas Fired Ladle Preheating System 900c 0



5. Main Features



A. Automatic ignition and heating, preheating temperature and time can be set freely. High combustion
    efficiency and fast heating speed;



B. Adopt brand burner or heater, stable performance and long service life;



C. Heating and lifting can be controlled automatically, easy and simple operation;



D. Natural gas, LPG or electricity and other energy can be used for fuel;



E. Equipped with multiple safety detection devices, gas pressure, flame detection,, ignition abnormal alarm;



F. Heat insulation cover adopt high strength refractory whole castable, good thermal insulation effect;



G. Can be used for different capacity transfer ladle;



H. Can be tailor made according to your transfer ladle diameter and your request.



6. Our Certification



Gas Fired Ladle Preheating System 900c 1



7. FRQ



Q1: I know nothing about the preheating device, what kind of preheating device I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to
do by using this machine, then let us give you perfect solutions and suggestions.


Q2: When I get this preheating device, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk
by Telephone/ Skype / Whatsapp / Weichat/ E-mail.


Q3: If some problems happen to this preheating device during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
