45KW Aluminum Degassing Double Rotor

45KW Aluminum Degassing Double Rotor
45KW Aluminum Degassing Double Rotor 45KW Aluminum Degassing Double Rotor

Large Image :  45KW Aluminum Degassing Double Rotor

Product Details:
Place of Origin: China
Brand Name: Hydeb
Certification: CE,ISO9001,ISO14001,IS45001,High-tech Enterprise,Intellectual Property,Patents
Model Number: LDU-II
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $30000-$60000/set
Packaging Details: Wooden Case or Pallet
Delivery Time: 50 working days
Payment Terms: T/T
Supply Ability: 20 sets per year

45KW Aluminum Degassing Double Rotor

Description
Product Name: Molten Aluminum Launder Type Double Graphite Rotor In-Line Rotory Degassing Equipment Application: On Line Purity Molten Aluminum
Rotor Material: Graphite MOQ: 1 Set
Power: < 45KW Degassing Efficient: Hydrogen Less Than 0.12ml/100g-Al
Colour: Yellow & Siliver
High Light:

45KW Aluminum Degassing

,

750 deg Aluminum Degassing

,

rotary degassing aluminum Double Graphite Rotor

Molten Aluminum Launder Type Double Graphite Rotor In-Line Rotory Degassing Equipment



Molten Aluminum Box type Double/Two Graphite Rotor in-line rotory degassing Equipment



1. In-line Rotory Degassing Equipment Description



•  The LDU has higher degassing efficiency because degassing rotors are mounted between the melting furnace
and casting machine in the length direction of the launder and the degassing zone is partitioned into several parts
for multilevel in-line degassing. The number of rotors depends on the flow rate of molten aluminum



2.  In-line Rotory Degassing Equipment Mainly Specification



Items Parameters
Maximum temperature of molten aluminum 750℃
Launder shell surface temperature ≤60℃
Launder lining life ≥12 months
Rotor speed 100-600rpm
Inert gases High-purity N2, high-purity Ar
Degassing efficiency

When it is not greater than the maximum flow rate, the inlet hydrogen content is ≤0.30ml / 100gAl, when the aluminum liquid is 700-740 ℃, the hydrogen content after degassing is ≤0.22ml / 100g

-Degassing efficiency≥35% when hydrogen content at the inlet>0.30ml/100g-Al.

Power supply 380V AC 50Hz, ≤10KVA



4.  In-line Rotory Degassing Equipment Models



No. Of Rotor 1 2 3 4
Type LDU-I LDU-II LDU-III



LDU-IV

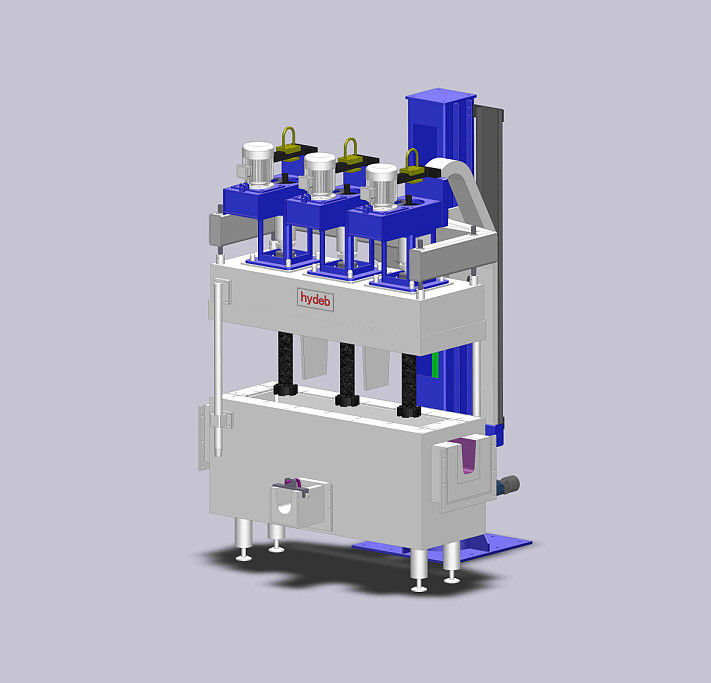

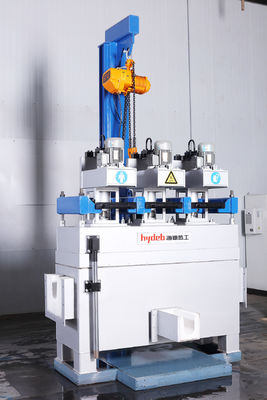

5.  In-line Rotory Degassing Equipment Pictures



45KW Aluminum Degassing Double Rotor 0



6. Company Profile



-- Established in January 2003, and now has 56 employees

-- Sales of 50 million RMB in 2021

-- Focus on one industry -- "aluminum casting"

-- Has a complete product line of aluminum casting equipment, all products are independent research

and development, manufacturing

-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid

hydrogen measurement, until aluminum solution aging treatment equipment
