Product Details:
Place of Origin: China
Brand Name: Hydeb
Certification: CE,ISO9001,ISO14001,IS45001,High-tech Enterprise,Intellectual Property,Patents
Model Number: BDU-II
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $30000-$60000/set
Packaging Details: Wooden Case or Pallet
Delivery Time: 50 working days
Payment Terms: T/T
Supply Ability: 20 sets per year

3 Moisture Ppm Aluminum Degassing

Description
Name: Molten Aluminum Box Type Double Silicon Nitride Rotor In-Line Rotory Degassing Equipment Function: On Line Purity Molten Aluminum
Protector Tube: Sic Nitride No. Of Rotor: 2
Efficient: ≤0.12ml/100g-Al Colour: Yellow
Heating Elements: Spiral Silicon Carbon Heating Elements
High Light:

3 Moisture ppm Aluminum Degassing

,

99.997 percent Aluminum Degassing

,

0.1MPA process of refining aluminium

Molten Aluminum Box Type Double Silicon Nitride Rotor In-Line Rotory Degassing Equipment



Molten Aluminum Box type Double/Two Graphite Rotor in-line rotory degassing Equipment



1.  In Line Rotory Degassing Equipment Intrudction



•  The BDU Box type in-line rotory degassing unit is usually installed between the discharge outlet of the smelting
furnace and the filter box. Melts flow into the BDU and rotate the rotor to break inert gases, forming a large quantity
of dispersed bubbles, which then enter into the aluminum melts. After collision, capturing, surface adsorption and
partial pressure action, the bubbles rise with gases and take hydrogen and oxide slags out of melts, making them
nto scums.


Then aluminum melts outflow from the degassing unit outlet, thus realizing the purpose of continuous in-line refining.



2.  In Line Rotory Degassing Equipment Mainly Parameters



Item Data Remark
Degassing Air Purity % ≥99.996



High-purity N2, high-purity Ar





Moisture ppm ≤ 3
O2 ppm ≤ 5
Dew point ℃ <-69
Pressure MPa 0.1-0.6 Adjustable
Flow (single rotor) m3/h 0.5~3 Adjustable
Power Phase 3
Voltage V 380±10%
Frequency Hz 50
Total Power kW < 45
Rotor rotating motor Power kW 1.1 Used to drive the SIN shaft to rotate
Heating Power kW 10X4 Max.Heating Power
Rotor speed r/min 0~600 Adjustable
Static aluminum liquid capacity of degassing box kg 700
Rated molten aluminum flow rate t/h 10
Inlet molten aluminum temperature ℃ 700
Box Cover Lifting Height ≥950mm
Box Size Around mm 1658L*1241W*1650H
Number of Rotor pcs 2 Silicon Nitride
Heating Elements pcs 4 Silicon Carbide
Heating Element Protection Tube pcs 4 Silicon Nitride
Box Temperature Rising Speed Degassing box is preheated to 800℃ within 8 hours Preheating of the box itself
Temperature control method PLC+Atmosphere aluminum liquid double point temperature control
Box Surface Temperature ℃ ≤55 Measured below 100mm on the plane of the box, except in the area of 100mm at the junction of the box chute
Degassing Efficient When the hydrogen content at the inlet of the degassing box is ≤0.3ml/100g-Al, the outlet degassing effect is ≤0.12ml/100g-Al, and when the inlet hydrogen content is ≥0.3ml/100g-Al, the outlet degassing effect is ≥ 60%.

When the metal flow rate is not greater than the maximum processing capacity, when the molten aluminum temperature is within 720-740℃, high-purity Ar (≥99.996%) is used. (Excluding high magnesium alloy)





4.  In Line Rotory Degassing Equipment Models



No. Of Rotor 1 2 3 4
Type BDU-I BDU-II BDU-III BDU-IV

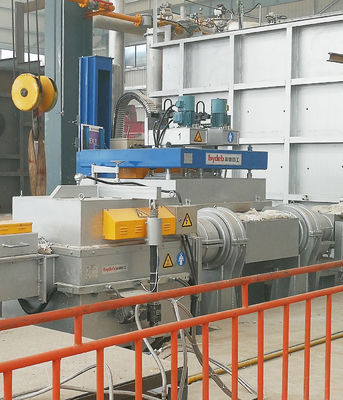

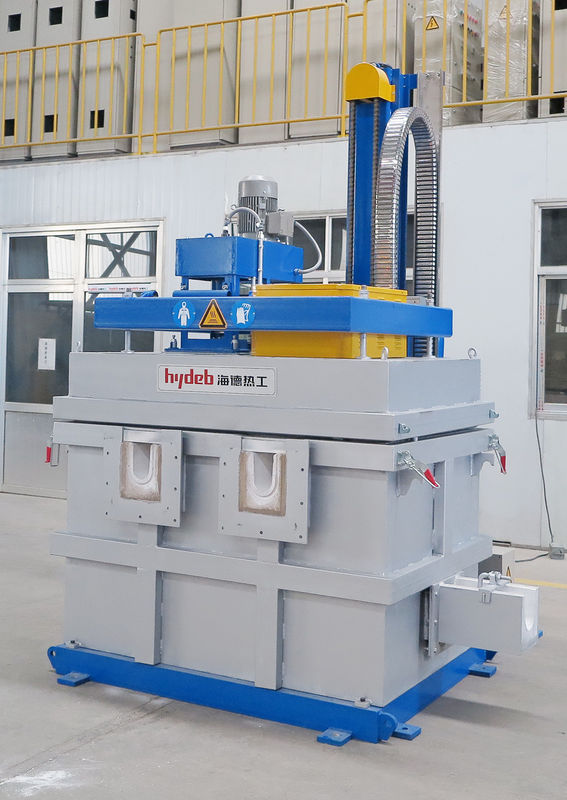

5. Pictures



3 Moisture Ppm Aluminum Degassing 0



3 Moisture Ppm Aluminum Degassing 1



6. Company Profile



-- Established in January 2003, and now has 56 employees

-- Sales of 50 million RMB in 2021

-- Focus on one industry -- "aluminum casting"

-- Has a complete product line of aluminum casting equipment, all products are independent research

and development, manufacturing

-- aluminum melting and holding, transportation, ladle preheating, aluminum liquid refining, aluminum liquid

hydrogen measurement, until aluminum solution aging treatment equipment



7. FRQ



Q1: I know nothing about this in line rotory degassing equipment, what kind of in line rotory degassing equipment I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to
do by using this machine, then let us give you perfect solutions and suggestions.


Q2: When I get this in line rotory degassing equipment, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk by
Telephone/ Skype / Whatsapp / Weichat/ E-mail.


Q3: If some problems happen to this in line rotory degassing equipment during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
