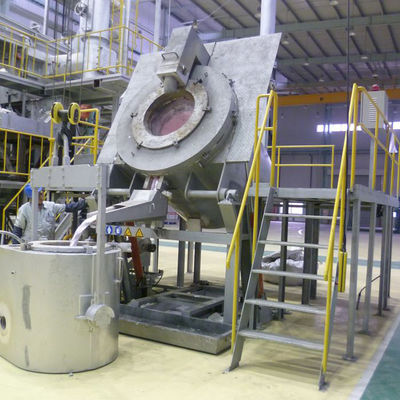

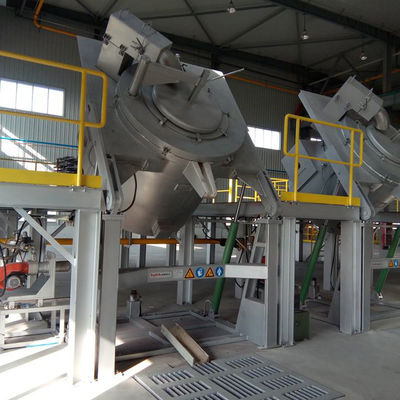

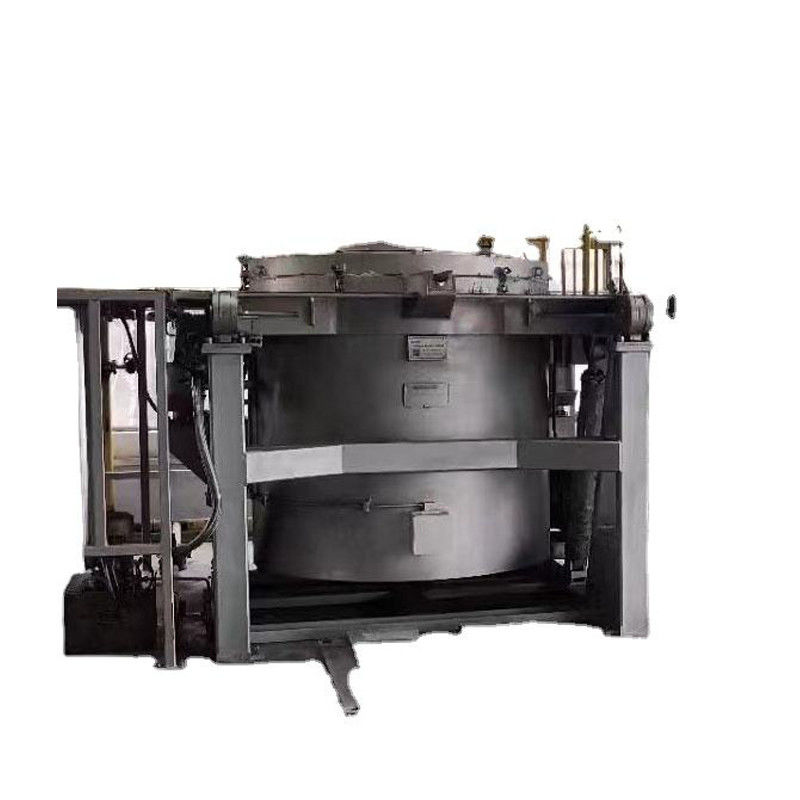

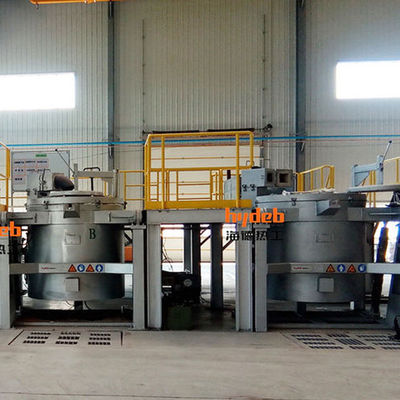

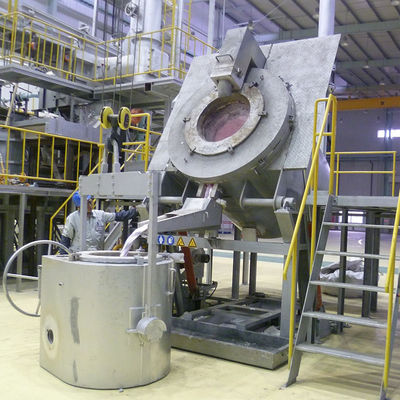

Die Casting Aluminum Melting Tilting Crucible Furnace Gas Fired

Die Casting Aluminum Melting Tilting Crucible Furnace Gas Fired
Die Casting Aluminum Melting Tilting Crucible Furnace Gas Fired Die Casting Aluminum Melting Tilting Crucible Furnace Gas Fired Die Casting Aluminum Melting Tilting Crucible Furnace Gas Fired Die Casting Aluminum Melting Tilting Crucible Furnace Gas Fired Die Casting Aluminum Melting Tilting Crucible Furnace Gas Fired

Large Image :  Die Casting Aluminum Melting Tilting Crucible Furnace Gas Fired

Product Details:
Place of Origin: Jinan, China
Brand Name: HYDEB
Certification: CE ISO9001
Model Number: HBQ-221
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 1500USD/set
Packaging Details: Standard exporting package
Delivery Time: 30 workdays
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100 sets per year

Die Casting Aluminum Melting Tilting Crucible Furnace Gas Fired

Description
Usage: Aluminum Melting And Holding Furnace Core Components: Engine
Applicable: Die Casting Type: Induction Furnace
Weight (T): 3T After Sales Service Provided: Field Maintenance And Repair Service
High Light:

Aluminum Melting Tilting Crucible Furnace

,

Die Casting Tilting Crucible Furnace

,

CE Tilting Type Crucible Furnace

Tilting CRUCIBLE FURNACE Tilting type gas fired aluminum melting furnace machine



Usage
• Mainly used for heat preservation of molten aluminum alloys, suitable for pre-aluminum casting degassing and slag removal, alloy preparation, structure homogenization and temperature regulation.
• Energy sources include electricity and gas.

Equipment Features
• Higher-quality molten aluminum can be obtained. Molten aluminum temperature accuracy, composition uniformity and lower gas content can be guaranteed.
• Flexible production organization. The crucible can be replaced at any time for production of different types of alloys, without contaminating the molten aluminum.
• Low burning loss of aluminum. The aluminum in the crucible is heated with heat conduction of the crucible, without local high temperature, reducing oxidizing loss and high-temperature volatilization, lowering the burning loss of aluminum to a level below 1.2%.
• The furnace floor is molded by monolithic casting with a casting material. Moreover, at the bottom of the furnace body is a leakage outlet, through which the molten aluminum can outflow once the crucible is broken, reducing the risk of damage to the furnace body.
• The temperature of the furnace chamber and molten aluminum is controlled by series circuit, ensuring sufficient heating efficiency and preventing overheating of the furnace chamber.
• The molten aluminum thermocouple protect tube is made from silicon nitride, which is highly heat-conducting, resistant to corrosion by the molten aluminum, resistant to thermal and cold shocks and highly strong. The tube can be directly immersed in the molten aluminum to measure its temperature. It has a service life of more than 2 years.
• Multiple safety protection modes are adopted, such as molten aluminum over-temperature alarm, furnace chamber over-temperature alarm and crucible leakage alarm.



SN Items Data Remarks
1 Efficient furnace capacity kg (Al) 510
2 Melting Rate kg/h (Al) 450 Inside the crucible there is already have 1/3 molten aluminum.
3 Burner TGB
4 Energy Consumption m3/h Around 40
5 Maximum furnace temperature ℃ 950
6 Precision of molten aluminum temperature control ℃ ≤± 5
7 Temperature control mode PID+Dual temperature control
8 Crucible type and size mm

ODΦ880,

Height 1170

TBN1100

Morgen

9 Furnace surface temperature rise ℃ ≤50 Except for the installation site of the heating tube, the discharge outlet and rising tube
10 Gas Source Gas type Natural Gas
Gas pressure 5 Kpa
Max. Flow 75 m3/h
11 Power Source Voltage V 380
Frequency HZ 50
Power Kw ≤5
12 Air Pressure MPa 0.5-0.7



Die Casting Aluminum Melting Tilting Crucible Furnace Gas Fired 0Die Casting Aluminum Melting Tilting Crucible Furnace Gas Fired 1Die Casting Aluminum Melting Tilting Crucible Furnace Gas Fired 2Die Casting Aluminum Melting Tilting Crucible Furnace Gas Fired 3Die Casting Aluminum Melting Tilting Crucible Furnace Gas Fired 4
