HDR-2 Rotary Fluxing Injector Device For Molten Aluminium Furnace Degassing Process

HDR-2 Rotary Fluxing Injector Device For Molten Aluminium Furnace Degassing Process
HDR-2 Rotary Fluxing Injector Device For Molten Aluminium Furnace Degassing Process HDR-2 Rotary Fluxing Injector Device For Molten Aluminium Furnace Degassing Process HDR-2 Rotary Fluxing Injector Device For Molten Aluminium Furnace Degassing Process HDR-2 Rotary Fluxing Injector Device For Molten Aluminium Furnace Degassing Process HDR-2 Rotary Fluxing Injector Device For Molten Aluminium Furnace Degassing Process

Large Image :  HDR-2 Rotary Fluxing Injector Device For Molten Aluminium Furnace Degassing Process

Product Details:
Place of Origin: Jinan, China
Brand Name: HYDEB
Certification: CE ISO9001
Model Number: HDR-2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 20000-50000USD/set
Packaging Details: Standard exporting package
Delivery Time: 60 workdays
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 60 sets per year

HDR-2 Rotary Fluxing Injector Device For Molten Aluminium Furnace Degassing Process

Description
Function: Molten Aluminium Degassing And Mixing In Furnace Type: HDR-2000
Degassing Efficiency: 30% Power Supply: 380V/50Hz/3Phases
Refining Gas: Nitrogen/Argon Weight: 3000KGS
Dimension: Accoridng To Your Furnace Size
High Light:

Aluminium Furnace Rotary Degassing Unit

,

Rotary Fluxing Injector Device

,

Rotary Degassing Unit For Molten

HDR-2 Rotary Fluxing Injector Device For Molten Aluminium Furnace Degassing Process

1. EQUIPMENT INTRODUCTION

• The motor drives the graphite rotor immersed in the aluminum liquid to rotate, and at the same time, high-purity nitrogen (or argon) is introduced into the aluminum liquid through the graphite rotor. The rotor of the refiner can effectively break up the inert gas into small bubbles. The bubbles are evenly dispersed and floated in the molten aluminum. The hydrogen partial pressure in the molten aluminum is higher than that in the bubbles, and the hydrogen will diffuse into the inert gas and float to the liquid surface with the bubbles, thereby effectively reducing the hydrogen content in the molten aluminum.

• Dehydrogenation/impurity removal/dealkalization
• One of the most effective molten aluminum degassing technologies, the first choice for high-end aluminum castings!



2. EQUIPMENT CONFIGURATION

Name Qty Remark





Host part

Mobile box walking mechanism 1 set
Tilting system 1 set
Rotor rotation system 1 set
Rotating Mechanism Swing System 1 set
Fluxing spraying system 1 set
Frame 1 set
Control system Nitrogen / argon gas system 1 set
Electric control system 1 set
Control cabinet 1 pc



Others

Graphite rotor 1 set
Graphite shaft 1 set
Main shaft insulation board 1 set




3. MAIN PARAMETERS

Item Data Remark
Refined gas purity % ≥99.996





High purity nitrogen or argon





water content ppm ≤ 3
O2 ppm ≤ 5
Pressure MPa 0.1-0.6 adjustable
Flow rate L/min 15~30 adjustable
Compressed air Pressure MPa ≥0.4
Flow rate m3/h ≥0.5
Power parameters Power phase number 3
voltage V 380
Frequency Hz 50
Gross power kW 15
Mobile box mobile motor Power kW 0.75 Used for mobile box walking
Rotating shaft motor Power kW 11 Used to drive rotation of graphite shaft
Rotating motor of rotating mechanism Power kW 0.2 Used to drive the fuselage rotation
Motor of powder feeding device Power kW 0.2 Used to drive the powder feeding device
Tilting system Power kW 1.5 Used for mainshaft turnover
Rotor swing range
Rotor tilting range mm See scheme drawing of rotary Fluxing Injector
Rotation speed of graphite rotor r/min 100-400 Frequency conversion adjustment
Refining degassing time min 0~99 Time-adjustable
Temperature of molten aluminum ℃ 640-850 Temperature of Refined molten aluminum
Graphite rotor size Diameter x length mm Details seeing drawing
Graphite rotor size Diameter x length mm Details seeing drawing
Overall size Length x width x height mm Details seeing drawing
Weight kg About 3000 Subject to actual production

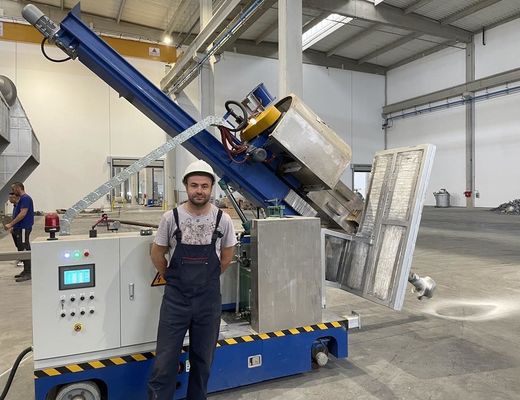

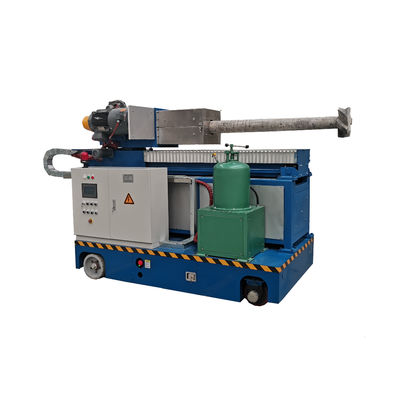

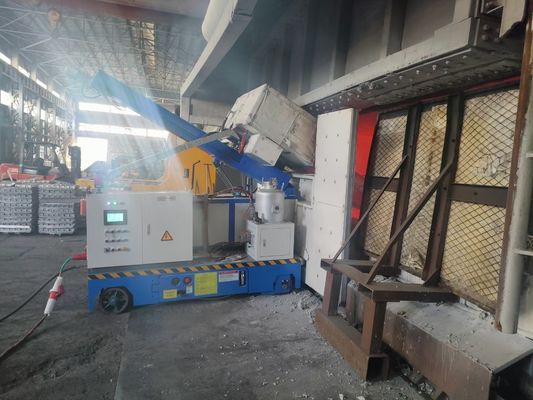

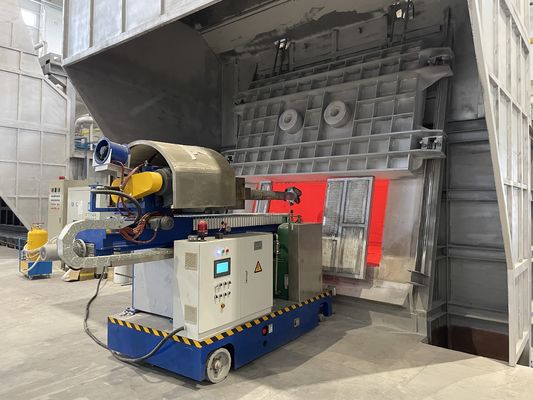

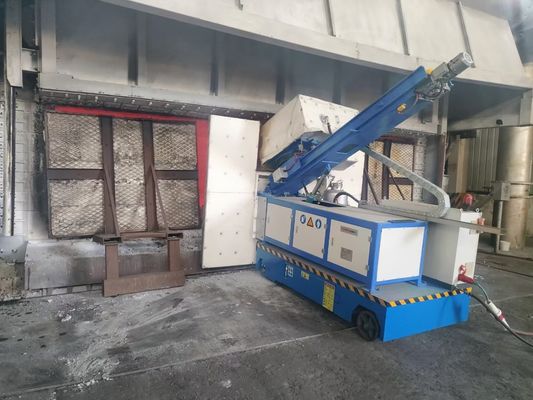

4. Equipment Pictures

HDR-2 Rotary Fluxing Injector Device For Molten Aluminium Furnace Degassing Process 0HDR-2 Rotary Fluxing Injector Device For Molten Aluminium Furnace Degassing Process 1HDR-2 Rotary Fluxing Injector Device For Molten Aluminium Furnace Degassing Process 2HDR-2 Rotary Fluxing Injector Device For Molten Aluminium Furnace Degassing Process 3HDR-2 Rotary Fluxing Injector Device For Molten Aluminium Furnace Degassing Process 4
