Product Details:
|
| Products Name: | With Wheels Green Type Rotary Aluminum Degassing For Purity Aluminum Liquid | Raw Material: | Graphite |
|---|---|---|---|
| Warranty Time: | 1 Year | Color: | Green |
| Working Speed: | 400 Rpm | Fluxing Granularity: | ≤5 Mm |
| High Light: | 80mm Rotary Degassing Unit,400 rpm Rotary Degassing Unit,process of refining aluminium For Purifying |
||
With Wheels Green Type Rotary Aluminum Degassing For Purity Aluminum Liquid

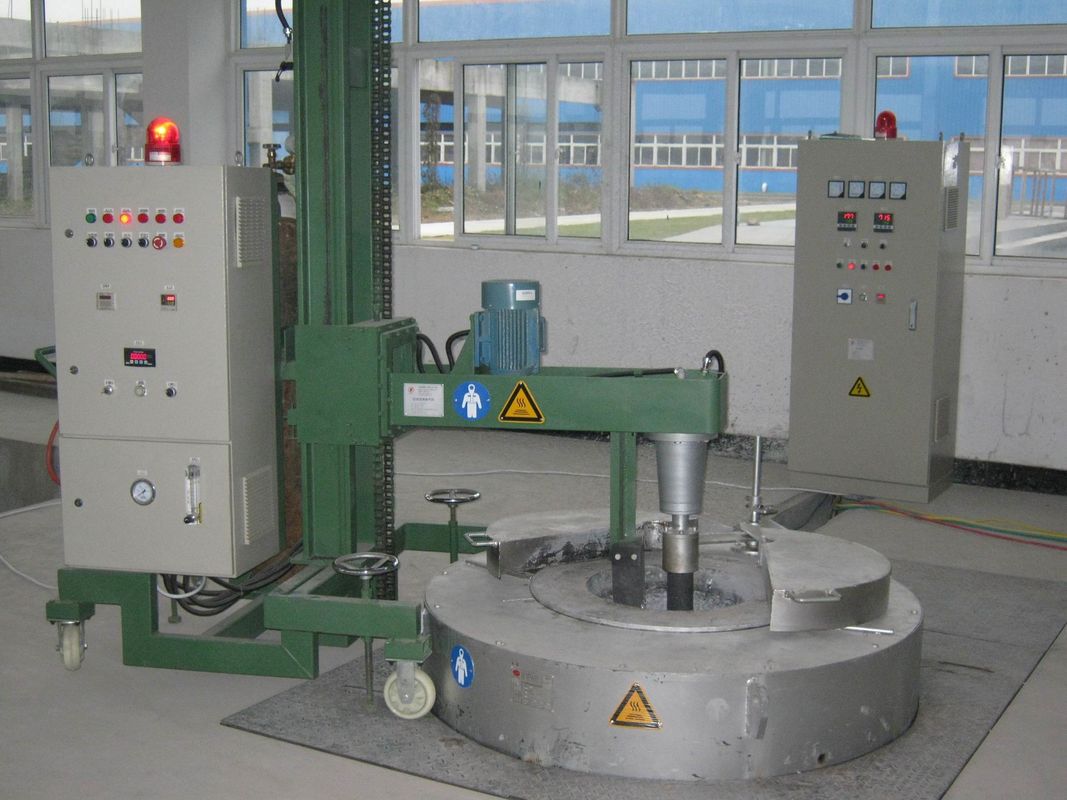

Moving Type with Wheels and Graphite Rotor and Shafts Rotary Degassing Machines
1. Aluminum Degassing Function
• For puirity molten aluminum in the Aluminium foundries area
• Inside Aluminium holding and transfer vessels (crucibles, furnaces, ladles)
2. Aluminum Degassing Merits
• Auto-timer and flashing light notify the operator when the cycle is done
• Automatic mode settings provide repeatable results and efficiency
• Efficiently uses flux, nitrogen or argon
• Process gas flow meter
• Self-checking diagnostics
• Password protected cycle parameters
• Degassing system can rotate around the support column (optional)
• Cooling air blower prevents overheating
3. Aluminum Degassing Technical Parameters Data
| Item | Data | Mark | |
| Refining Gas | Purity % | ≥99.996 | High Purity Nitrogen or Argon |
| Moisture ppm | ≤ 3 | ||
| O2 ppm | ≤ 5 | ||
| Pressure MPa | 0.1-0.6 Adjustable | ||
| Flow L/min | 15～30 Adjustable | ||
| Refining Flux | Granularity mm | ≤5 | |
| Powder Spraying g/min | 0～350 Adjustable | ||
| Power | Phrase | 3 | |
| Voltage V | 380±10% | ||
| Frequency Hz | 50 | ||
| Total Power kW | < 3 | ||
| Motor for Rotary Shaft Rotating | Power kW | 1.1 | For driving graphite rotation shaft to rotate |
| Motor for Hanger Arm Lifting up & down | Power kW | 1.1 | For Hanger Arm Lifting up & down |
| Motor for Arm Rotation | Power kW | 0.4 |
For driving the hanger arm rotation |
| Motor for Filling Fluxing Device | Power kW | 0.12 | For filling refining flux |
| Graphite Rotor Speed r/min | 0-600 | VVVF adjustable | |
| Refining Degassing Time min | 0～99 | Time Adjustable | |
| Graphite Shaft Size | Dia. Φ mm | 80 | |
| Length mm | According the design | ||
| Graphite Rotor Size | Dia. Φ mm |
According the design
|
|
| Length mm | |||
| Graphite Baffle Size | Length mm | ||
| Width mm | |||
| Thickness mm | |||
| Number of Graphite Baffle | 1 | ||
| Weight kg | About 600 | According to actual production | |
4. Degasser Models
| Structure | Stationary type | Mobile Type | Suspending Type | Mobile Type |
| Type | XCP230-1 | XC210-1 | XCP100-1 |
XCP210A |
5. Reference Pictures
6. Company Profile
Founded in January 2003, the Jinan HYDEB Thermal Tech Co., Ltd. is located in Jinan High-tech Development Zone.
The Company mainly produces molten aluminum refining and degassing units, molten aluminum transfer ladles and
holding crucible furnaces, which are sold to well-known corporations in the industry at home and abroad, meeting their
high requirements for product safety and advancement.
7. FRQ
Q1: I know nothing about this degassing unit , what kind of degassing unit I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to do by
using this machine, then let us give you perfect solutions and suggestions.
Q2: When I get this degassing unit, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk by
Telephone/ Skype / Whatsapp / Weichat/ E-mail.
Q3: If some problems happen to this degassing unit during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
