600 KG LPG Aluminum Melting Furnace

Certification
China Jinan Hydeb Thermal Tech Co., Ltd. certification
China Jinan Hydeb Thermal Tech Co., Ltd. certification
I'm Online Chat Now

600 KG LPG Aluminum Melting Furnace

600 KG LPG Aluminum Melting Furnace
600 KG LPG Aluminum Melting Furnace 600 KG LPG Aluminum Melting Furnace

Large Image :  600 KG LPG Aluminum Melting Furnace

Product Details:
Place of Origin: China
Brand Name: Hydeb
Certification: CE,ISO9001,ISO14001,IS45001,High-tech Enterprise
Model Number: GRL-600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $ 20000-$50000/set
Packaging Details: Pallet or Wooden Case
Delivery Time: 30 working days
Payment Terms: T/T
Supply Ability: 20 sets per year

600 KG LPG Aluminum Melting Furnace

Description
Name: 600 KG Gas Fired Hydraulic Tilting Furnace For Melting Aluminum Slaggs Furnace Color: Grey
Tilting Device: Hydraulic Material: Iron Steel & Insulation Layer
MOQ: 1 Set Power Source: LPG/NG
High Light:

600 KG Aluminum Melting Furnace

,

LPG Aluminum Melting Furnace

,

NG natural gas holding furnace die casting

600 KG Gas Fired Hydraulic Tilting Furnace For Melting Aluminum Slaggs Furnace



600KG Capacity Gas Fired Source Hydraulic Tilting Crucible Furnace



1.   Melting Aluminum Casting Furnace Features



--- Using high quality silicon crucible

--- Uniform and stable heating temperature

--- The average life of crucible can be extended by more than 50%

---- Eg:About aluminium cans,from scraps to final ingots.recovery efficiency can be 92%



3.  Melting Aluminum Casting Furnace Parameter Data



SN Items Data Remarks
1 Efficient furnace capacity kg (Al) 510
2 Melting Rate kg/h (Al) 450 Inside the crucible there is already have 1/3 molten aluminum.
3 Burner TGB
4 Energy Consumption m3/h Around 40
5 Maximum furnace temperature ℃ 950
6 Precision of molten aluminum temperature control ℃ ≤± 5
7 Temperature control mode PID+Dual temperature control
8 Crucible type and size mm

ODΦ880,

Height 1170

TBN1100

Morgen

9 Furnace surface temperature rise ℃ ≤50 Except for the installation site of the heating tube, the discharge outlet and rising tube
10 Gas Source Gas type Natural Gas
Gas pressure 5 Kpa
Max. Flow 75 m3/h
11 Power Source Voltage V 380
Frequency HZ 50
Power Kw ≤5
12 Air Pressure MPa 0.5-0.7



4.  Melting Aluminum Casting Furnace Models



Type GRL-300 GRL-500 GRL-600 GRL-800 GRL-1000 GRL-1200
Capacity 191KG 338KG 515KG 763KG 952KG 1062KG




5.  Melting Aluminum Casting Furnace​ Reference Pictures

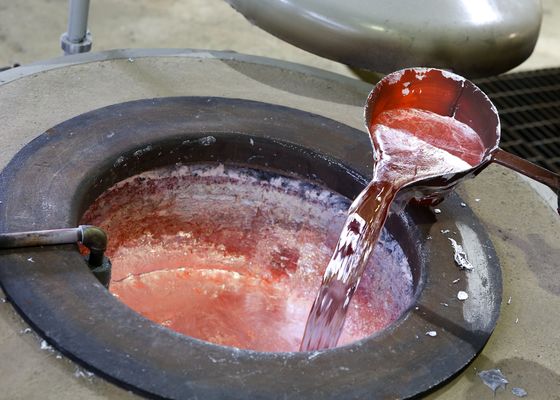

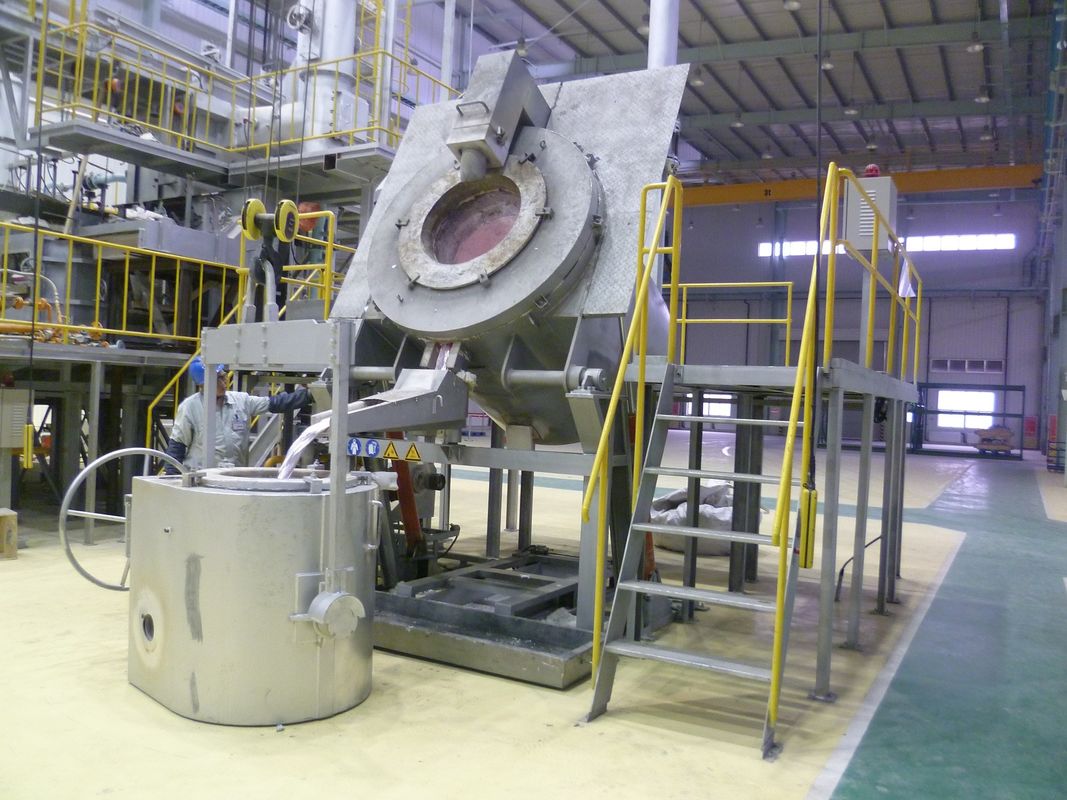

600 KG LPG Aluminum Melting Furnace 0





























































600 KG LPG Aluminum Melting Furnace 1



5. Company Workshop



600 KG LPG Aluminum Melting Furnace 2



6. FRQ


Q1: I know nothing about this machine, what kind of machine I should choose?
Very easy. We will email you an inquiry form for making sure your real need. Or just tell us what you want to
do by using this machine, then let us give you perfect solutions and suggestions.


Q2: When I get this machine, but I don’t know how to use it. What should I do?
We will send pictures or video and English manual with the machine. If you still have some doubts, we can talk
by Telephone/ Skype / Whatsapp / Weichat/ E-mail.


Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems (except spare parts).
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.





7.  Hydeb Profile



Focusing on the aluminum casting industry, the Company takes “Technology, Quality and Service” as its base of enterprise,
aimed at meeting all the needs of customers. Being “Safe, Practical, Reliable, Efficient and nice-looking”,
its products are well unanimous recognized by the customers, with its brand “HYDEB” gaining high popularity in the industry



“Taking the lead and creating a brand name in the industry”. We will continue to advance on the path of professional
development and
continually improve our products and services to further meet our customers’ development needs and support their creation
of greater values.
